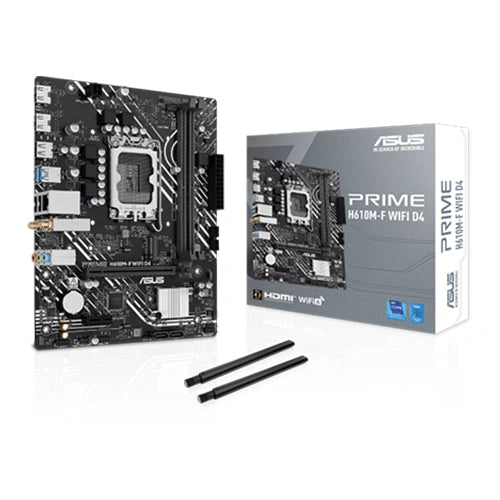

Product Code:PRIME-H610M-F-WIFI-D4
Features :
-
Intel LGA 1700 Socket: Ready for 14th, 13th and 12th Gen Intel® processors
-
Ultrafast Connectivity: 32Gbps M.2 slot, Realtek 1Gb Ethernet and USB 5Gbps support
-
Comprehensive Cooling: PCH heatsink
-
5X Protection III: Multiple hardware safeguards for all-round protection
ASUS Prime series motherboards are expertly engineered to unleash the full potential of 14th, 13th & 12th Generation Intel processors. Boasting a robust power design, comprehensive cooling solutions and intelligent tuning options, Prime H610 provides users and PC DIY builders a range of performance tuning options via intuitive software and firmware features.
FLEXIBILITY
Comprehensive controls form the foundation of the ASUS Prime series. The Prime H610 motherboard packs flexible tools to tune every aspect of your system, enabling performance tweaks to perfectly match the way you work to maximize productivity.
All-Around Energy Efficiency
The Energy Processing Unit (EPU) automatically optimizes power consumption and maximizes energy savings with Away mode — a smart setting that creates an extreme energy-saving scenario by shutting down unused I/O controllers.
Precise Digital Power Control
The Digi+ voltage-regulator module (VRM) delivers real-time control over voltage droop, automatically switching frequency and power-efficiency settings. It also allows you to fine-tune your CPU for ultimate stability and performance.
UEFI BIOS
The renowned ASUS UEFI BIOS provides everything you need to configure, tweak and tune your system. It offers intelligently simplified options for PC DIY beginners, as well as comprehensive features for seasoned veterans.
Advanced Tuning for Serious Tweakers
An intuitive Advanced mode offered via the UEFI lets you take complete control. A built-in search feature makes it easy to find options, and various advanced functions let you intelligently make nuanced adjustments so you can dial in performance just the way you want.
Quick and Simple Setup
EZ mode displays vital settings and stats and also offers guided wizards, drag-and-drop functionality, and one-click application of important settings — all to help you get your rig up and running in no time.
storage
PRIME H610M-F WIFI D4 offers one M.2 slot that supports data-transfer speeds of up to 32 Gbps via PCIe 3.0, enabling quicker boot-up and app load times with OS or application drives.
PCIe 4.0
Prime H610 motherboards are designed specifically for 14th, 13th and 12th Generation Intel Core CPUs and offer PCIe 4.0 connectivity for the latest GPUs. The wide bandwidth and superfast transmission speeds allow you to create feature-rich builds that can handle high loads effortlessly.
| Motherboard |
| Platform |
INTEL |
| Socket |
LGA1700 |
| Cpu Type |
14th Gen,13th Gen,12th Gen |
| Chipset |
H610 |
| Memory Speed |
up to 3200 |
| Max Memory Support |
64 GB |
| Supported Memory Type |
DDR4 |
| Channel Supported |
Dual Channel |
| Memory Feature |
Dual channel memory architectureSupports Intel Extreme Memory Profile (XMP) memory module
* Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and
memory configuration, for more information please refer to CPU/Memory Support list under the Support tab of product information site or visit asus website
|
| Graphics Port |
2 x HDMI |
| Expansion Slots |
Intel Core Processors (14th & 13th & 12th Gen)
1 x PCIe 4.0 x16 slot
Intel H610 Chipset
1 x PCIe 3.0 x1 slot
- To ensure compatibility of the device installed, please visit to asus website
|
| Wireless Networking |
Wi-Fi 6,Bluetooth 5.3 |
| Back Panel I/O Ports |
2 x USB 5Gbps ports (2 x Type-A)
3 x USB 2.0 ports (3 x Type-A)
2 x HDMI port
1 x Wi-Fi module
1 x Realtek 1Gb Ethernet port
3 x Audio jacks
|
| Internal I/O Connector |
Fan and Cooling Related
1 x 4-pin CPU Fan header
1 x 4-pin Chassis Fan header
Power Related
1 x 24-pin Main Power connector
1 x 4-pin +12V Power connector
Storage Related
1 x M.2 slot (Key M)
2 x SATA 6Gb/s ports
USB
1 x USB 5Gbps header supports 2 additional
USB 5Gbps ports
1 x USB 2.0 header supports 2 additional
USB 2.0 ports
Miscellaneous
1 x Clear CMOS header
1 x Front Panel Audio header (F_AUDIO)
1 x Speaker header
1 x 10-1 pin Front Panel System header
|
| Form Factor |
Micro-ATX |
| Warranty |
3 Years |
| Note |
Features, Price and Specifications are subject to change without notice. Images use for Representation Purpose Only. |
