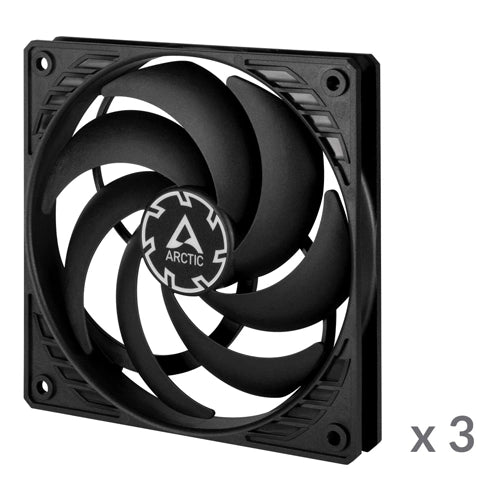

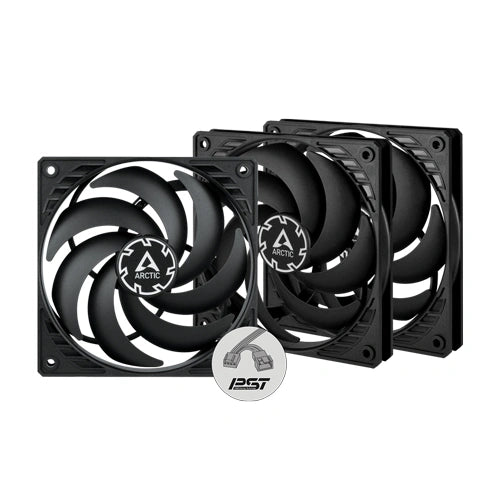

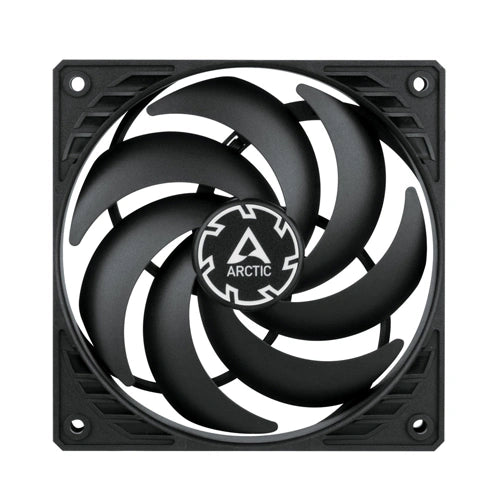

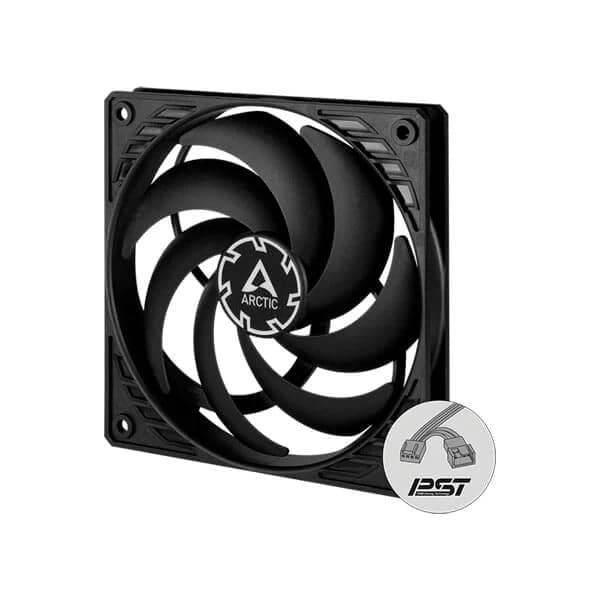

Features of ARCTIC P12 Slim 120mm PST PWM

1. Ideal where space is limited
2. OPTIMISED FOR STATIC PRESSURE
3. MORE EFFICIENT TECHNOLOGY
4. MAXIMUM QUIETNESS, MINIMUM VIBRATION
5. EXTENDED LIFE SPAN
6. 300 TO 2100 RPM REGULATED VIA PWM PST
7. HIGH QUALITY BEARING
8. TWO WAY INSTALLATION

Ideal for Small Spaces

Unlike standard 120 mm case fans with a thickness of 25 mm, the ANTEC P12 Slim PWM PST has a mounting depth of only 15 mm. This makes it the ideal choice for Small Form Factor (SFF) builds. Corresponding screws for mounting on a radiator are already included.

Optimised for High Static Pressure

Because the fan design of the P12 Slim PWM PST is optimised for focused airflow, it generates high static pressure. The fan enables extremely efficient cooling and good airflow — even with increased air resistance. This makes the P12 Slim PWM PST particularly well-suited for use on concealed case intakes, dust filters, radiators, and generally in small cases that have little space for free airflow due to compactly placed hardware.

Maximum Quietness, Minimum Vibration

The operating noise of the newly-developed ARCTIC motor is barely perceptible, even at the lowest speed. Thanks to its special magnetization, the motor of the P-fans generates no start-up jerks and only a fraction of the commutation vibrations of a conventional DC motor. As a result, there is far less vibration on the housing at different speeds and no need for rubber buffering or additional decoupling.

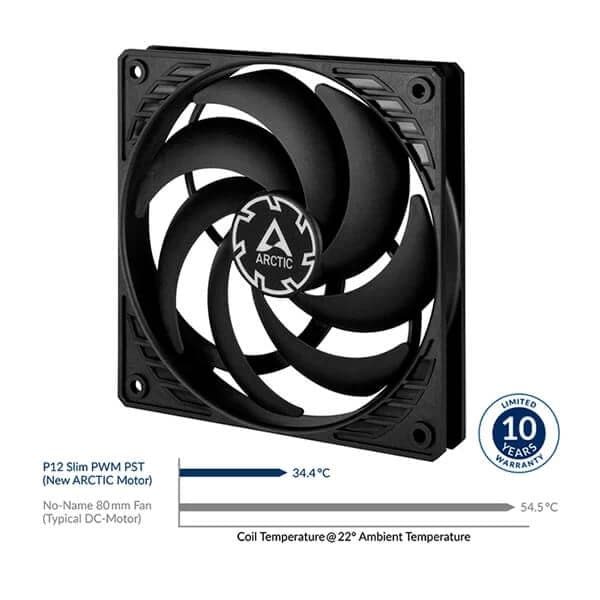

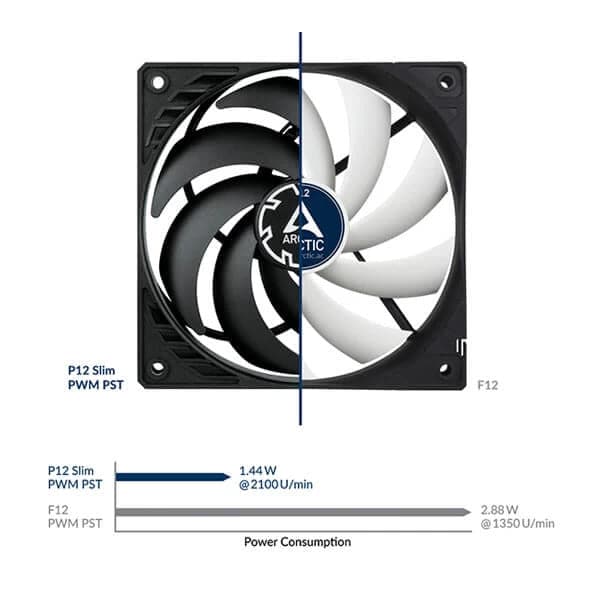

Improved Service Life

The new ARCTIC motor generates significantly less frictional heat than its predecessors and current competitor models. As a result, coil temperature is reduced by up to 20 degrees, quadrupling service life, while reduced frictional losses ensure more efficient operation.

300 to 2100 rpm Controlled via PWM PST

With a wide speed range and innovative PWM Sharing Technology (PST), the P12 Slim PWM PST's fan speed can be controlled in sync with other fans. ARCTIC's PST fans come equipped with their own built-in daisy-chain solution, and, in addition to the plug-in connector, have another socket to which an additional fan or up to four other PST fans can be connected in series.

High-Quality Sleeve Bearing

Thanks to a combination of alloy and lubricant developed in Germany, friction within the bearing is minimized and greater efficiency is achieved. In addition to preventing lubricant loss, wear on the pin and sleeve is also reduced to a minimum. Less heat is developed, less bearing noise is generated and the life of the fan is extended significantly.

0dB Mode — Zero rpm

The speed of the P12 Slim PWM PST can be throttled down to a standstill via PWM. This allows efficient and silent PC operation in idle while guaranteeing maximum performance on demand.

Versatile Use

The P12 Slim PWM PST allows customisable installation in the case. It can both suck in cool air as an Intake fan and push out warm air as an Exhaust fan. The fan also offers both push and pull installation options on the radiator.

Specifications of ARCTIC P12 Slim 120mm PST PWM

• Brand:ARCTIC
• Product Code:ACFAN00275A

  Features:

  P12 Slim PWM PST

  120 mm Low-Profile PWM Fan with Cable Splitter | 3 Pieces

  Ideal for Small Spaces

  Unlike standard 120 mm case fans with a thickness of 25 mm, the P12 Slim PWM PST has a mounting depth of only 15 mm. This makes it the ideal choice for Small Form Factor (SFF) builds. Corresponding screws for mounting on a radiator are already included.

  Optimised for High Static Pressure

  Because the fan design of the P12 Slim PWM PST is optimised for focused airflow, it generates high static pressure. The fan enables extremely efficient cooling and good airflow — even with increased air resistance. This makes the P12 Slim PWM PST particularly well-suited for use on concealed case intakes, dust filters, radiators, and generally in small cases that have little space for free airflow due to compactly placed hardware.

  Maximum Quietness, Minimum Vibration

  The operating noise of the newly-developed ARCTIC motor is barely perceptible, even at the lowest speed. Thanks to its special magnetization, the motor of the P-fans generates no start-up jerks and only a fraction of the commutation vibrations of a conventional DC motor. As a result, there is far less vibration on the housing at different speeds and no need for rubber buffering or additional decoupling.

  Improved Service Life

  The new ARCTIC motor generates significantly less frictional heat than its predecessors and current competitor models. As a result, coil temperature is reduced by up to 20 degrees, quadrupling service life, while reduced frictional losses ensure more efficient operation.

  200 to 2100 rpm Controlled via PWM PST

  With a wide speed range and innovative PWM Sharing Technology (PST), the P12 Slim PWM PST's fan speed can be controlled in sync with other fans. ARCTIC's PST fans come equipped with their own built-in daisy-chain solution, and, in addition to the plug-in connector, have another socket to which an additional fan or up to four other PST fans can be connected in series.

  High-Quality Sleeve Bearing

  Thanks to a combination of alloy and lubricant developed in Germany, friction within the bearing is minimized and greater efficiency is achieved. In addition to preventing lubricant loss, wear on the pin and sleeve is also reduced to a minimum. Less heat is developed, less bearing noise is generated and the life of the fan is extended significantly.

  0dB Mode — Zero rpm

  The speed of the P12 Slim PWM PST can be throttled down to a standstill via PWM. This allows efficient and silent PC operation in idle while guaranteeing maximum performance on demand.

  Versatile Use

  The P12 Slim PWM PST allows customisable installation in the case. It can both suck in cool air as an Intake fan and push out warm air as an Exhaust fan. The fan also offers both push and pull installation options on the radiator.

  Cabinet Fan
  Size	120 mm
  Pack	Triple
  Warranty	6 Years
  Note***	Features, Price, Specifications are subject to change without notice.Images use for Representation Purpose Only

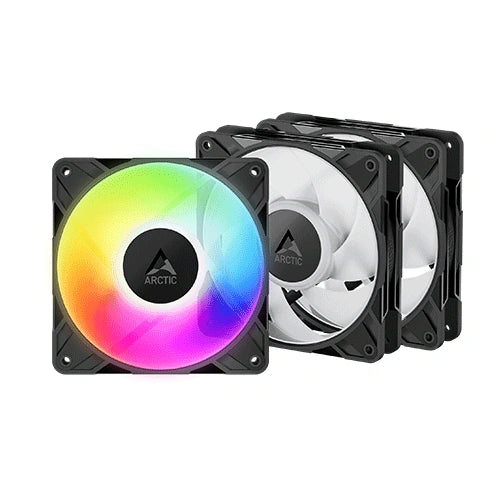

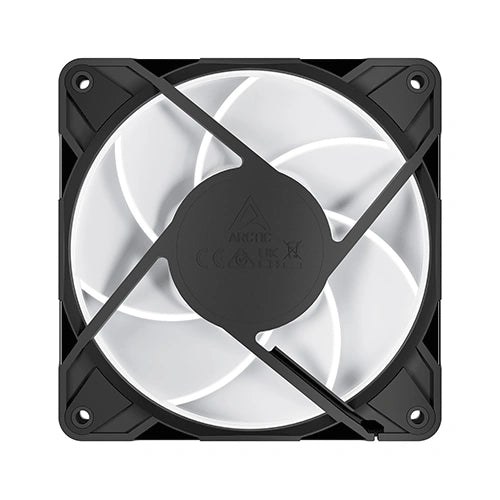

• Brand:ARCTIC

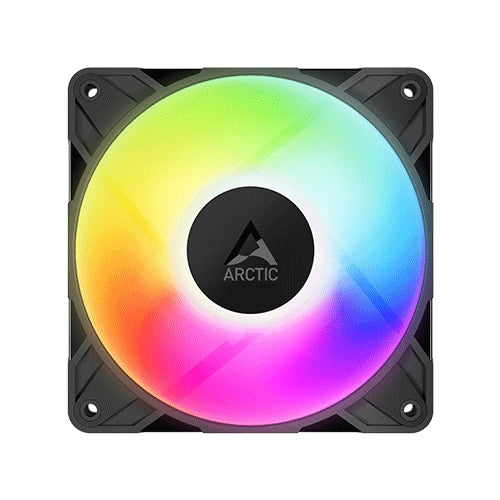

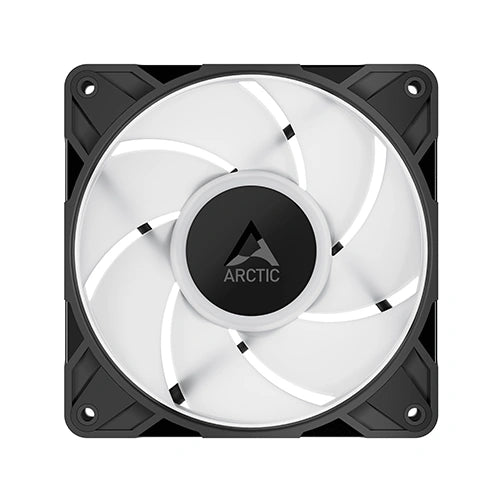

• Product Code:ACFAN00310A

  Features:

  • Operating Ambient Temperature: 0–40 °C
  • Dimensions: 120 (L) x 120 (W) x 25 (H)mm

  Fan Specifications

  • Fan Speed: 600–3000 rpm,PWM controlled 0 rpm below 5 % PWM
  • Airflow:  77 cfm|131 m³/h
  • Static Pressure:  6.9 mmH2O
  • Fan Bearing: Fluid Dynamic Bearing
  • Typical Voltage:  12 V DC
  • Start Up Voltage: 3.3 V DC
  • Current:  0.33 A
  • Cable Length:  400 mm + 80 mm Daisy-Chain Cable
  • Connector:  4-Pin Fan Plug + 4-Pin Socket

  RGB Specifications

  • LEDs: 12x A-RGB Gen2 LEDs
  • Current | Voltage: 0.40 A | 5 V DC
  • Connector: 3-Pin A-RGB Plug + 3-Pin Socket

  Efficient Performance at High Air Resistance

  Thanks to high static pressure, the Pro fans move air effectively through tight spaces. This makes them ideal for radiators, perforated panels, and mesh filters.

  Maximum Performance, Redefined

  Revised fan blade design for an optimal balance of performance and smooth operation.

  Automated Balancing

  An automated measuring and balancing process ensures exceptional precision and smooth performance by applying the balancing compound with pinpoint accuracy.

  SOTA Microcontroller

  Reduces motor noise, compensates for load fluctuations, and protects against inrush currents and reverse polarity

  More Power – Less Noise

  The fan delivers more performance at low speeds with higher airflow and static pressure at just 25 dB(A) – ideal for quiet, powerful cooling.

  Minimum Gap Dimensions for Maximum Efficiency

  Enables higher static pressure and maximum airflow efficiency.

  LED	ARGB
  Size	120 mm
  Pack	Triple
  Warranty	6 Years
  Note***	Features, Price, Specifications are subject to change without notice.Images use for Representation Purpose Only

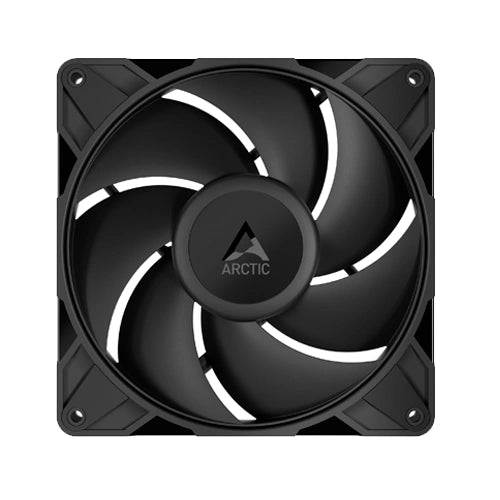

• Brand:ARCTIC
• Product Code:ACFAN00314A

  Features:

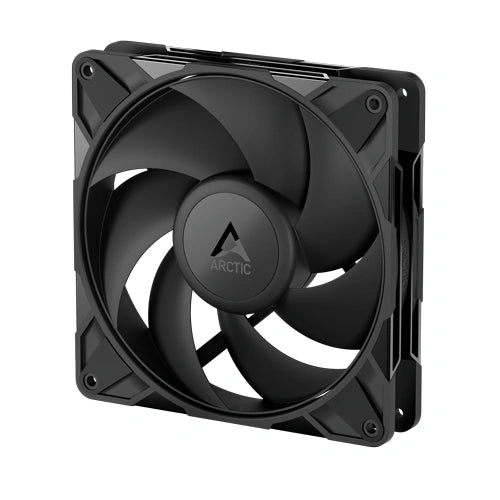

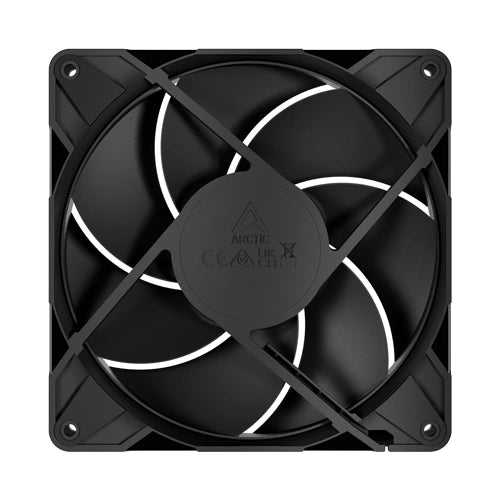

  P14 Pro PST

  140 mm PWM Fan with Cable Splitter

  Efficient Performance at High Air Resistance

  Thanks to high static pressure, the Pro fans move air effectively through tight spaces. This makes them ideal for radiators, perforated panels, and mesh filters.

  Maximum Performance, Redefined

  Revised fan blade design for an optimal balance of performance and smooth operation.

  Optimized Bearing-Shaft Design (FDB)

  A hydrodynamic bearing combined with an extended shaft ensures quieter operation by improving pressure distribution and minimizing vibrations.

  Automated Two-Plane Balancing

  An automated two-level measuring and balancing process ensures exceptional precision and smooth performance by applying the balancing mass with pinpoint accuracy at two different depth levels.

  SOTA Microcontroller

  Reduces motor noise, compensates for load fluctuations, and protects against inrush currents and reverse polarity.

  More Power – Less Noise

  The fan delivers more performance at low speeds with higher airflow and static pressure at just 25 dB(A) – ideal for quiet, powerful cooling.

  Minimum Gap Dimensions for Maximum Efficiency

  Enables higher static pressure and maximum airflow efficiency.

  PST – PWM-Based Synchronized Fan Control

  An additional PWM connector allows multiple fans to be synchronized in series using a single header.

  6-Year Warranty – Because Satisfaction Matters

  Our products are tested under extreme conditions. The 6-year warranty isn’t just a promise – it’s a testament to our confidence in their durability.

  Cabinet Fan
  Size	140 mm
  Pack	Single
  Warranty	6 Years
  Note***	Features, Price, Specifications are subject to change without notice.Images use for Representation Purpose Only

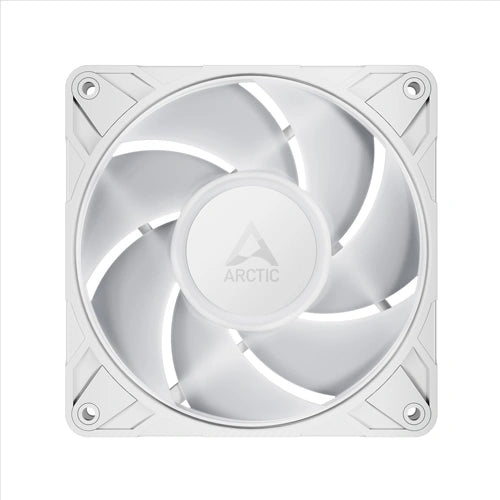

• Brand:ARCTIC
• Product Code:ACFAN00326A

  Features:

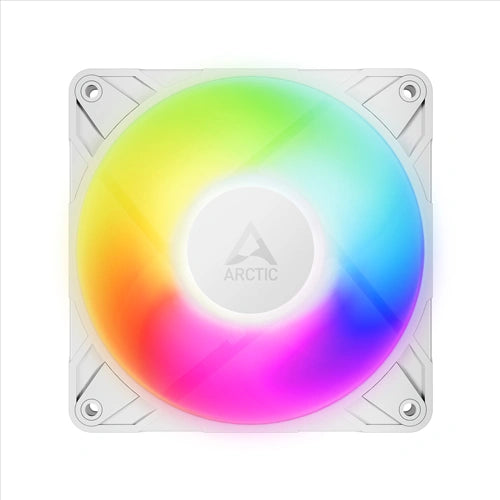

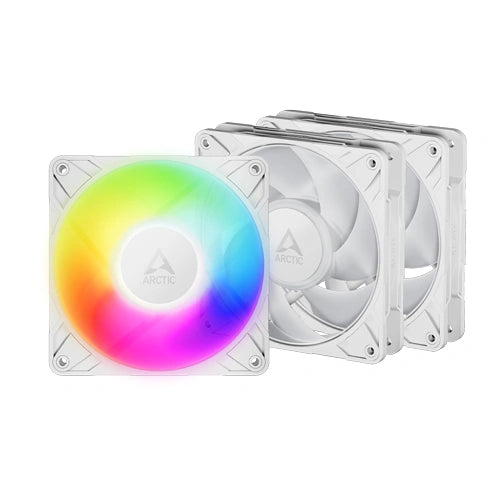

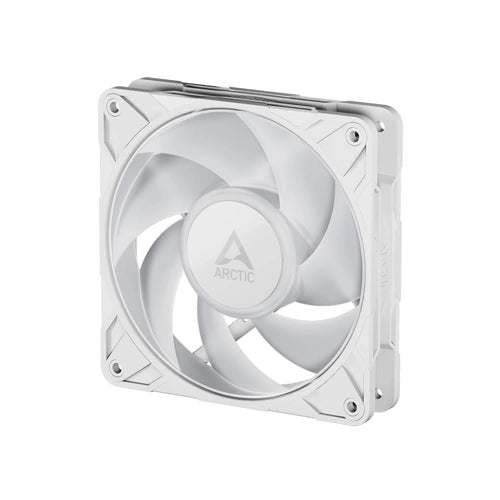

  P12 Pro A-RGB (White) - 3 Pack

  120 mm A-RGB PWM Fan with Cable Splitter

  Efficient Performance at High Air Resistance

  Thanks to high static pressure, the Pro fans move air effectively through tight spaces. This makes them ideal for radiators, perforated panels, and mesh filters.

  Maximum Performance, Redefined

  Revised fan blade design for an optimal balance of performance and smooth operation.

  Optimized Bearing-Shaft Design (FDB)

  A hydrodynamic bearing combined with an extended shaft ensures quieter operation by improving pressure distribution and minimizing vibrations.

  Automated Balancing

  An automated measuring and balancing process ensures exceptional precision and smooth performance by applying the balancing compound with pinpoint accuracy.

  SOTA Microcontroller

  Reduces motor noise, compensates for load fluctuations, and protects against inrush currents and reverse polarity.

  Minimum Gap Dimensions for Maximum Efficiency

  Enables higher static pressure and maximum airflow efficiency.

  6-Year Warranty – Because Satisfaction Matters

  Our products are tested under extreme conditions. The 6-year warranty isn’t just a promise – it’s a testament to our confidence in their durability.

  Cabinet Fan
  LED	ARGB
  Size	120 mm
  Pack	Triple
  Warranty	6 Years
  Note***	Features, Price, Specifications are subject to change without notice.Images use for Representation Purpose Only

• Brand:ARCTIC
• Product Code:ACFAN00200A

  Features:

  Maximum Quietness, Minimum Vibration
  Even at low speeds the operating sound of the new ARCTIC motor is barely noticeable. Due to a sinus-magnetizing the new motor only creates about 5 % of the vibration from commutation of a regular DC-motor without filter.

  Perfect Case Fan Regulation with PWM
  The PWM function allows the motherboard to run the fan precisely at its necessary speed. This guarantees the required cooling and minimizes the noise level.

  PWM Sharing Technology (PST) Lowers Noise
  If you want to improve the cooling efficiency of your computer you get several case fans working in parallel (since it takes ten fans to double the noise level). But what does it help if they don't work together? The PST assures that all of your fans listen to one control signal. E.g. you share the CPU Cooler's PWM signal and assure that your case fans stand down at low load and spin up whenever necessary.

  Innovative Design Enables Quiet and Efficient Ventilation
  The innovative design of the fan blades improves the airflow and facilitates a highly efficient ventilation. The impeller was designed with a focus on minimising the noise level yet delivering the desired airflow and pressure.

  Two Way Installation

  • Blow warm air out of the case
  • Draw cool air into your case

  Long Service Life

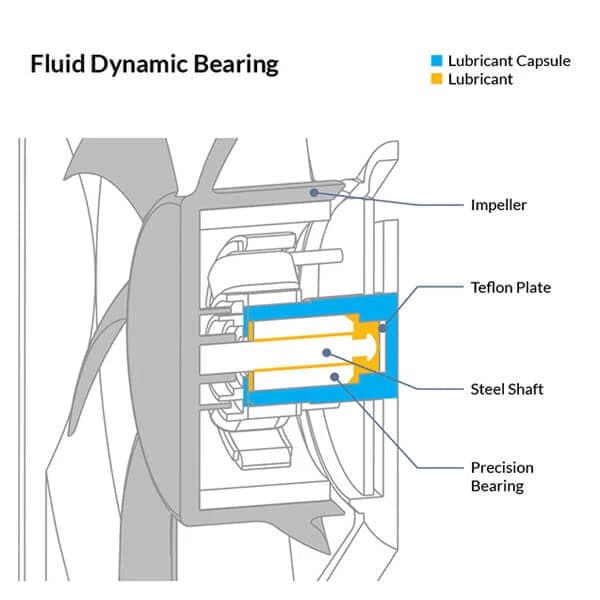

  The Fluid Dynamic Bearing comes with an oil capsule that avoids lubricant leakage. Thus this bearing is as quiet as a sleeve bearing but comes with a significantly higher service life.

  Quality You Can Rely On
  To ensure the longevity of our products, we carry out long-term tests under different, sometimes very adverse conditions. In this way, we learn how to improve our products for our customers. In addition, the excellent results of long-term testing give us the assurance that our products are not only outstanding in terms of quality but also durability. It's a certainty that we are happy to pass on to our customers, which is why we give a 6-year manufacturer's guarantee on the F12 PWM PST.

  Specifications:

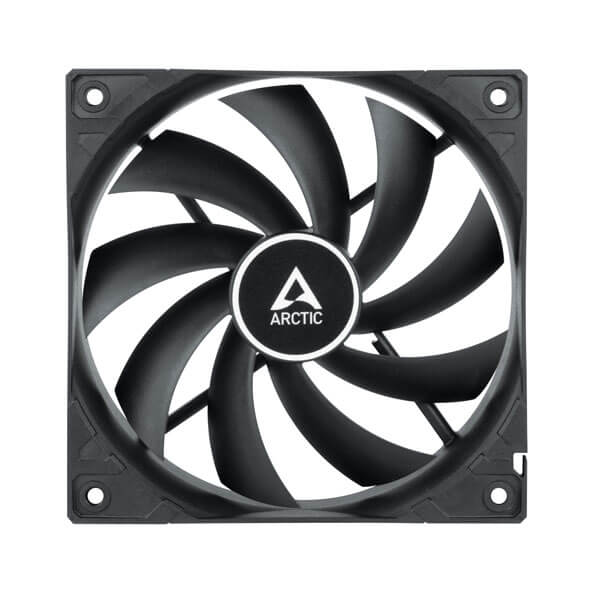

  Model Name	F12 PWM PST (ACFAN00200A)
  Color	Black
  Performance
  Fan Speed	230—1350 rpm
  Airflow	53 cfm | 90.1 m³/h
  Static Pressure	1 mmH2O
  Noise Level	0.3 Sone
  Fan
  Fan Frame	Standard
  Control Type	PWM PST
  Connector	4-Pin Connector + 4-Pin Socket
  Fan Bearing	Fluid Dynamic Bearing
  Operating Ambient Temperature	0—40 °C
  Electric Characteristics
  Typical Voltage	12 V DC
  Starting Voltage	6 V
  Current | Voltage	0.12 A | 12 V DC
  Cable Length	400 mm
  Size & Weight
  Length	120 mm
  Width	120 mm
  Height	25 mm
  Weight	109 g
  Warranty	6 Years
  Note	*** Features, Price, Specifications are subject to change without notice.

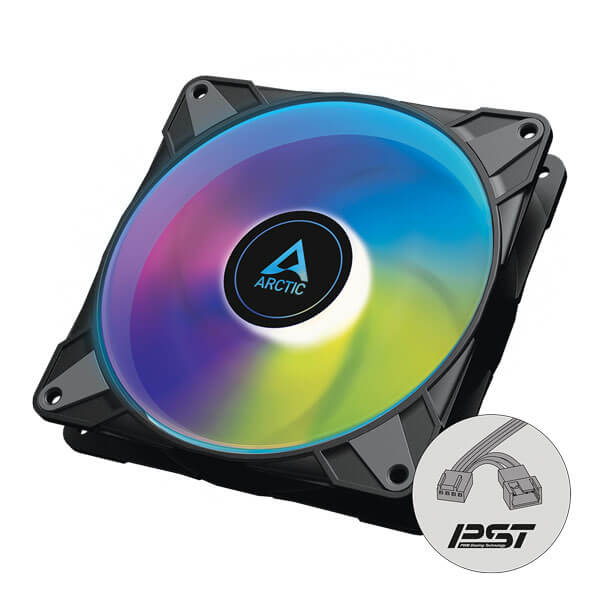

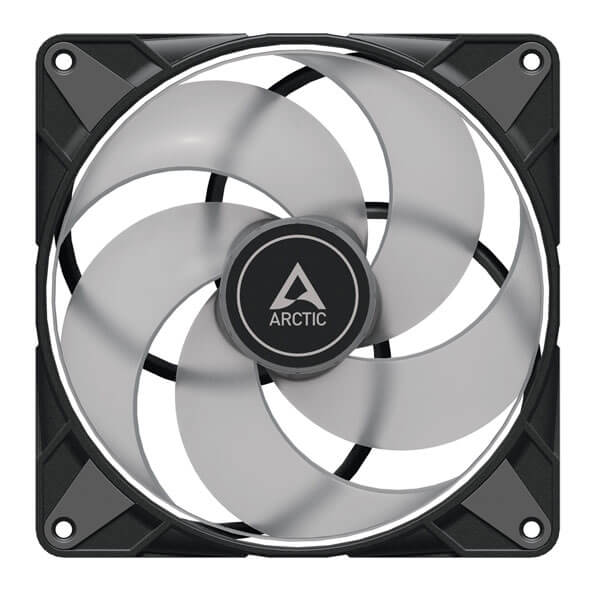

• Brand:ARCTIC
• Product Code:ACFAN00239A

  Features:

  Addressable RGB for Full Colour Control
  The P14 PWM PST A-RGB has 12 digital A-RGB LEDs in the center fan wheel. These can be controlled independently of each other and are compatible with the common A-RGB standards of leading motherboard manufacturers. The fan can thus be fully illuminated directly via the A-RGB mainboard connector or via an external controller and synchronised with the illumination of other hardware.

  0 dB Mode — Zero rpm
  The speed of the fan can be throttled down to standstill via PWM. This allows silent operation in IDLE and at the same time guarantees maximum performance when required.

  Maximum Smoothness, Minimum Vibration
  The operating noise of the newly developed ARCTIC motor is barely perceptible even at the lowest speed. In addition, the P14 PWM PST A-RGB has rubberised contact surfaces and thus reduces audible vibrations to a minimum.

  Optimised for High Static Pressure
  The P14 PWM PST A-RGB operates with a focused airflow and a high static pressure. The fan thus guarantees extremely efficient cooling, even with increased air resistance, and is therefore suitable for use on heat sinks, radiators and filters.

  200 to 1900 rpm Controlled via PWM PST
  With a wide speed range and the innovative PWM Sharing Technology (PST), the fan speed of the P14 PWM PST A-RGB can be controlled synchronously with all other fans. This reduces noise to a minimum while guaranteeing maximum cooling performance.

  High Quality Bearing
  Thanks to an alloy/lubricant combination developed in Germany, friction within the bearing is reduced and greater efficiency is achieved. In this way, less heat develops, less bearing noise is generated and the service life of the fan is extended.

  Quality You Can Rely On
  To ensure the longevity of our products, we carry out long-term tests under different, sometimes very adverse conditions. In this way, we learn how we can permanently improve our products for our customers. In addition, the excellent results of long-term testing give us the assurance that our products are not only outstanding in terms of quality, but also in terms of durability. This is a certainty that we are happy to pass on to our customers, which is why we give a 6-year manufacturer's guarantee on the P14 PWN PST A-RGB.

  Specifications:

  Model Name	P14 PWM PST A-RGB (ACFAN00239A)
  Color	Black
  Performance
  Fan Speed	200—1900 rpm PWM Controlled (0 rpm below 5% PWM)
  Airflow	68.90 cfm | 117.06 m³/h
  Static Pressure	2 mmH2O
  Noise Level	0.3 Sone
  Fan
  Fan Frame	Standard
  Control Type	PWM PST
  Connector	4-Pin Connector + 4-Pin Socket
  Fan Bearing	Fluid Dynamic Bearing
  Operating Ambient Temperature	0—40 °C
  Electric Characteristics
  Typical Voltage	12 V DC
  Starting Voltage	5 V
  Current | Voltage	0.17 A | 12 V DC
  Cable Length	400 mm
  RGB Specifications
  LEDs	12 A-RGB LEDs
  Connector	3-Pin 5 V-DI-GND Connector
  Current / Voltage	0.4 A/5 V
  Cable	400 mm Cable with 80 mm Sharing Cable, Black
  Size & Weight

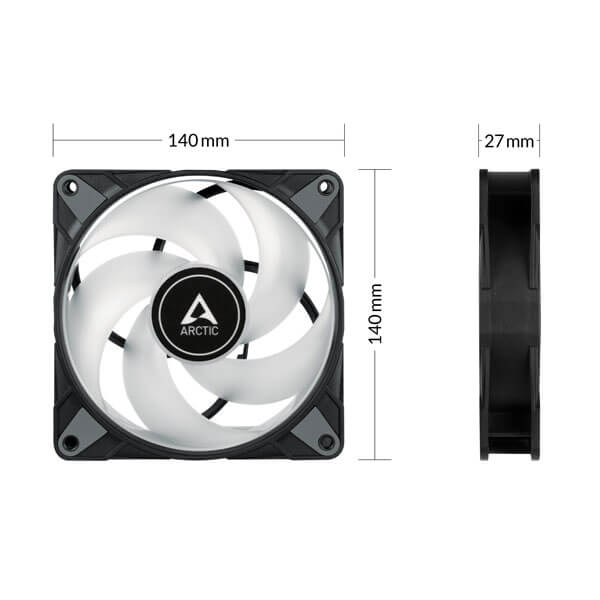

  Length	140 mm
  Width	140 mm
  Height	27 mm
  Weight	225 g
  Warranty	6 Years
  Note	***Features, Price, Specifications are subject to change without notice. ***Product images are for representation purposes only

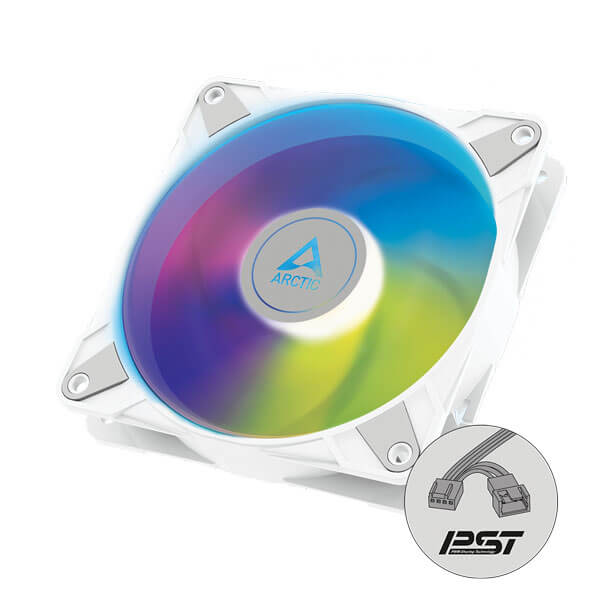

• Brand:ARCTIC
• Product Code:ACFAN00276A

  Features:

  Addressable RGB for Full Colour Control
  The P14 PWM PST A-RGB has 12 digital A-RGB LEDs in the center fan wheel. These can be controlled independently of each other and are compatible with the common A-RGB standards of leading motherboard manufacturers. The fan can thus be fully illuminated directly via the A-RGB mainboard connector or via an external controller and synchronised with the illumination of other hardware.

  0 dB Mode — Zero rpm
  The speed of the fan can be throttled down to standstill via PWM. This allows silent operation in IDLE and at the same time guarantees maximum performance when required.

  Maximum Smoothness, Minimum Vibration
  The operating noise of the newly developed ARCTIC motor is barely perceptible even at the lowest speed. In addition, the P14 PWM PST A-RGB has rubberised contact surfaces and thus reduces audible vibrations to a minimum.

  Optimised for High Static Pressure
  The P14 PWM PST A-RGB operates with a focused airflow and a high static pressure. The fan thus guarantees extremely efficient cooling, even with increased air resistance, and is therefore suitable for use on heat sinks, radiators and filters.

  200 to 1900 rpm Controlled via PWM PST
  With a wide speed range and the innovative PWM Sharing Technology (PST), the fan speed of the P14 PWM PST A-RGB can be controlled synchronously with all other fans. This reduces noise to a minimum while guaranteeing maximum cooling performance.

  High Quality Bearing
  Thanks to an alloy/lubricant combination developed in Germany, friction within the bearing is reduced and greater efficiency is achieved. In this way, less heat develops, less bearing noise is generated and the service life of the fan is extended.

  Quality You Can Rely On
  To ensure the longevity of our products, we carry out long-term tests under different, sometimes very adverse conditions. In this way, we learn how we can permanently improve our products for our customers. In addition, the excellent results of long-term testing give us the assurance that our products are not only outstanding in terms of quality, but also in terms of durability. This is a certainty that we are happy to pass on to our customers, which is why we give a 6-year manufacturer's guarantee on the P14 PWN PST A-RGB.

  Specifications:

  Model Name	P14 PWM PST A-RGB (ACFAN00276A)
  Color	White
  Performance
  Fan Speed	200—1900 rpm PWM Controlled (0 rpm below 5% PWM)
  Airflow	68.90 cfm | 117.06 m³/h
  Static Pressure	2 mmH2O
  Noise Level	0.3 Sone
  Fan
  Fan Frame	Standard
  Control Type	PWM PST
  Connector	4-Pin Connector + 4-Pin Socket
  Fan Bearing	Fluid Dynamic Bearing
  Operating Ambient Temperature	0—40 °C
  Electric Characteristics
  Typical Voltage	12 V DC
  Starting Voltage	5 V
  Current | Voltage	0.17 A | 12 V DC
  Cable Length	400 mm
  RGB Specifications
  LEDs	12 A-RGB LEDs
  Connector	3-Pin 5 V-DI-GND Connector
  Current / Voltage	0.4 A/5 V
  Cable	400 mm Cable with 80 mm Sharing Cable
  Size & Weight
  Length	140 mm
  Width	140 mm
  Height	27 mm
  Weight	225 g
  Warranty	6 Years
  Note	*** Features, Price, Specifications are subject to change without notice. LED ARGB Size 140 mm Pack Single Warranty 6 Years Note*** *** Features, Price, Specifications are subject to change without notice.

• Brand:ARCTIC
• Product Code:ACFAN00310A

  Features:

  • Operating Ambient Temperature: 0–40 °C
  • Dimensions: 120 (L) x 120 (W) x 25 (H)mm

  Fan Specifications

  • Fan Speed: 600–3000 rpm,PWM controlled 0 rpm below 5 % PWM
  • Airflow:  77 cfm|131 m³/h
  • Static Pressure:  6.9 mmH2O
  • Fan Bearing: Fluid Dynamic Bearing
  • Typical Voltage:  12 V DC
  • Start Up Voltage: 3.3 V DC
  • Current:  0.33 A
  • Cable Length:  400 mm + 80 mm Daisy-Chain Cable
  • Connector:  4-Pin Fan Plug + 4-Pin Socket

  RGB Specifications

  • LEDs: 12x A-RGB Gen2 LEDs
  • Current | Voltage: 0.40 A | 5 V DC
  • Connector: 3-Pin A-RGB Plug + 3-Pin Socket

  Efficient Performance at High Air Resistance

  Thanks to high static pressure, the Pro fans move air effectively through tight spaces. This makes them ideal for radiators, perforated panels, and mesh filters.

  Maximum Performance, Redefined

  Revised fan blade design for an optimal balance of performance and smooth operation.

  Automated Balancing

  An automated measuring and balancing process ensures exceptional precision and smooth performance by applying the balancing compound with pinpoint accuracy.

  SOTA Microcontroller

  Reduces motor noise, compensates for load fluctuations, and protects against inrush currents and reverse polarity

  More Power – Less Noise

  The fan delivers more performance at low speeds with higher airflow and static pressure at just 25 dB(A) – ideal for quiet, powerful cooling.

  Minimum Gap Dimensions for Maximum Efficiency

  Enables higher static pressure and maximum airflow efficiency.

  LED	ARGB
  Size	120 mm
  Pack	Triple
  Warranty	6 Years
  Note***	Features, Price, Specifications are subject to change without notice.Images use for Representation Purpose Only

• Brand:ARCTIC
• Product Code:ACFAN00314A

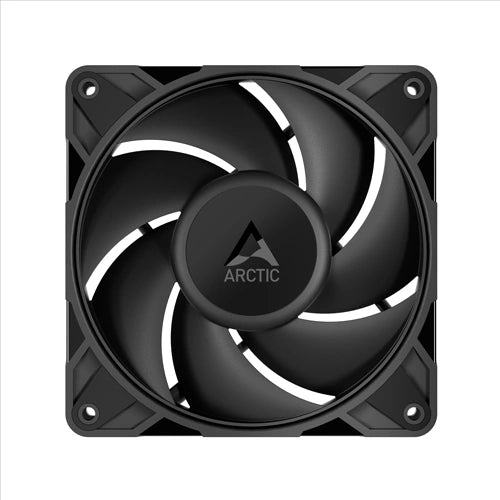

  P14 Pro PST

  140 mm PWM Fan with Cable Splitter

  Efficient Performance at High Air Resistance

  Thanks to high static pressure, the Pro fans move air effectively through tight spaces. This makes them ideal for radiators, perforated panels, and mesh filters.

  Maximum Performance, Redefined

  Revised fan blade design for an optimal balance of performance and smooth operation.

  Optimized Bearing-Shaft Design (FDB)

  A hydrodynamic bearing combined with an extended shaft ensures quieter operation by improving pressure distribution and minimizing vibrations.

  Automated Two-Plane Balancing

  An automated two-level measuring and balancing process ensures exceptional precision and smooth performance by applying the balancing mass with pinpoint accuracy at two different depth levels.

  SOTA Microcontroller

  Reduces motor noise, compensates for load fluctuations, and protects against inrush currents and reverse polarity.

  More Power – Less Noise

  The fan delivers more performance at low speeds with higher airflow and static pressure at just 25 dB(A) – ideal for quiet, powerful cooling.

  Minimum Gap Dimensions for Maximum Efficiency

  Enables higher static pressure and maximum airflow efficiency.

  PST – PWM-Based Synchronized Fan Control

  An additional PWM connector allows multiple fans to be synchronized in series using a single header.

  6-Year Warranty – Because Satisfaction Matters

• Brand:ARCTIC
• Product Code:ACFAN00312A

  Features:

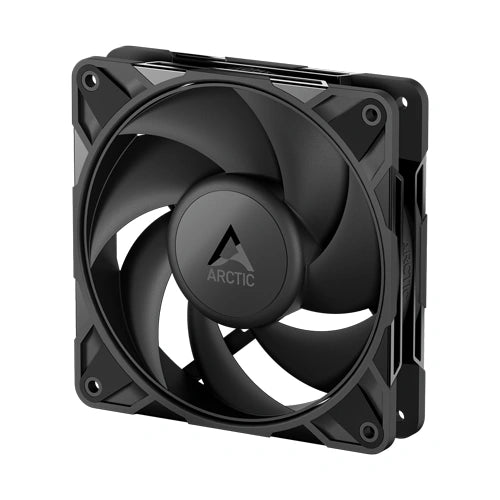

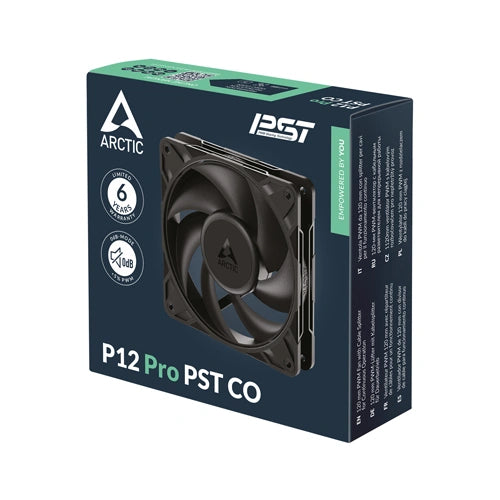

  P12 Pro PST CO

  120 mm PWM Fan with Cable Splitter for Continuous Operation

  Maximum Performance, Redefined

  Revised fan blade design for an optimal balance of performance and smooth operation.

  Optimized Bearing-Shaft Design (DBB)

  A dual ball bearing with an extended rotor shaft ensures high durability and maximum lifespan at high rotational speeds.

  SOTA Microcontroller

  Reduces motor noise, compensates for load fluctuations, and protects against inrush currents and reverse polarity.

  Minimum Gap Dimensions for Maximum Efficiency

  Enables higher static pressure and maximum airflow efficiency.

  More Power – Less Noise

  The fan delivers more performance at low speeds with higher airflow and static pressure at just 25 dB(A) – ideal for quiet, powerful cooling.

  6-Year Warranty – Because Satisfaction Matters

  Size	120 mm
  Pack	Single
  Warranty	6 Years

• Brand:ARCTIC

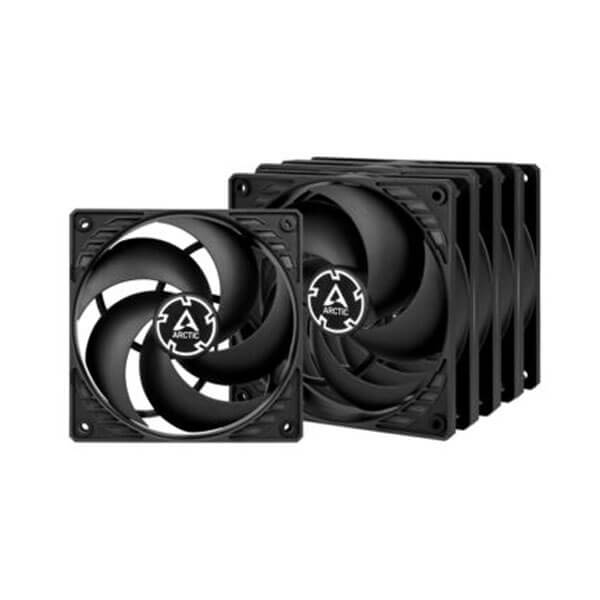

• Product Code:ACFAN00137A

  Features:

  Optimised for Static Pressure
  During the development of the new P12 PWM PST, special emphasis was placed on a focused airstream and thus a high static pressure. The fan guarantees extremely efficient cooling, even with increased air resistance. Therefore, the P12 PWM PST is particularly suitable for use on heatsinks and radiators.

  0 dB Mode — Zero rpm
  The speed of the fan can be throttled down to standstill via PWM. This allows silent operation in IDLE and at the same time guarantees maximum performance when required.

  Strong Cooling Performance
  Numerous improvements, such as updated engine technology and a newly developed fan design, have noticeably increased the performance of P-fans. In internal performance tests leveled to 28 dB(A), the new P-fans left many competitors behind.

  More Efficient Technology
  The motor is powered by a PWM IC of the newest generation, which allows the new P12 PWM PST to run much more efficiently than its predecessors. This saves energy without compromising the performance.

  Maximum Quietness, Minimum Vibration
  Even at low speeds the operating sound of the new ARCTIC motor is barely noticeable. Due to a sinus-magnetizing the new motor only creates about 5 % of the vibration from the commutation of a regular DC motor without a filter. Consequently, there is no need for rubber spacers due to the steady and smooth torque of the new motor.

  Extended Life Span
  A 10 °C lower motor temperature roughly doubles the life span of a fan. The new ARCTIC motor has a four times longer service life through its low coil temperature. Consequently, we give a manufacturer warranty of 6 years.

  200 to 1800 rpm Regulated via PWM PST
  Thanks to the 4-Pin Connector, the rpm can be regulated in a broad spectrum via PWM. In this way, noise is kept at a minimum while maximum cooling performance is guaranteed when needed.

  High-Quality Bearing
  Thanks to an alloy/lubricant combination developed in Germany, friction within the bearing is reduced and greater efficiency is achieved. As a result, there is less heat development as well as less bearing noise, which means you can enjoy a longer service life from your fan.

  Two Way Installation

  • Push warm air out of the case
  • Pull cool air into your case

  Specifications:

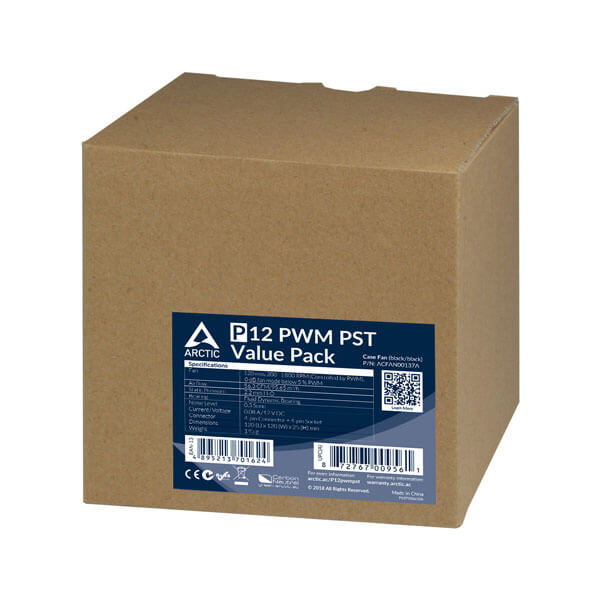

  Model Name	P12 PWM PST 5 Pieces (ACFAN00137A)
  Performance
  Fan Speed	200—1800 rpm PWM Controlled (0 rpm below 5 % PWM)
  Airflow	56.30 cfm | 95.70 m³/h
  Static Pressure	2.20 mmH2O
  Noise Level	0.3 Sone
  Operating Ambient Temperature	0—40 °C
  Fan
  Fan Frame	Standard
  Control Type	PWM PST
  Connector	4-Pin Connector + 4-Pin Socket
  Fan Bearing	Fluid Dynamic Bearing
  Electric Characteristics
  Typical Voltage	12 V DC
  Starting Voltage	3.9 V
  Current | Voltage	0.1 A | 12 V DC
  Cable Length	400 mm
  Size & Weight
  Length	120 mm
  Width	120 mm
  Height	25 mm
  Weight	145 g
  Warranty	6 Years
  Note	Features, Price, Specifications are subject to change without notice. Images used for Representation purpose only  LED No Size 120 mm Pack Five Warranty 6 Years

• Brand:ARCTIC
• Product Code:ACFAN00138A

  Features:

  Optimised for Static Pressure
  During the development of the new P14 PWM PST, special emphasis was placed on a focused airstream and thus a high static pressure. The fan guarantees extremely efficient cooling, even with increased air resistance. Therefore, the P14 PWM PST is particularly suitable for use on heatsinks and radiators.

  0 dB Mode — Zero rpm
  The speed of the fan can be throttled down to standstill via PWM. This allows silent operation in IDLE and at the same time guarantees maximum performance when required.

  More Efficient Technology
  The motor is powered by a PWM IC of the newest generation, which allows the new P14 PWM PST to run much more efficiently than its predecessors. This saves energy without compromising the performance.

  Maximum Quietness, Minimum Vibration
  Even at low speeds the operating sound of the new ARCTIC motor is barely noticeable. Due to sinus-magnetizing the new motor only creates about 5 % of the vibration from the commutation of a regular DC motor without a filter. Consequently, there is no need for rubber spacers due to the steady and smooth torque of the new motor.

  Extended Life Span
  A 10 °C lower motor temperature roughly doubles the life span of a fan. The new ARCTIC motor has a four times longer service life through its low coil temperature. Consequently, we give a manufacturer warranty of 6 years.

  200 to 1700 rpm Regulated via PWM PST
  With a wide range of regulation and the PWM Sharing Technology (PST), the P14 PWM PST fan speed can be controlled synchronously with all your other fans together. This keeps noise at a minimum while guaranteeing maximum cooling performance when needed.

  High-Quality Bearing
  Thanks to an alloy/lubricant combination developed in Germany, friction within the bearing is reduced and greater efficiency is achieved. As a result, there is less heat development as well as less bearing noise, which means you can enjoy a longer service life from your fan.

  Two Way Installation

  • Push warm air out of the case
  • Pull cool air into your case

  Specifications:

  Model Name	P14 PWM PST 5 Pieces (ACFAN00138A)
  Performance
  Fan Speed	200—1700 rpm PWM Controlled (0 rpm below 5 % PWM)
  Airflow	72.80 cfm | 123.76 m³/h
  Static Pressure	2.40 mmH2O
  Noise Level	0.3 Sone
  Operating Ambient Temperature	0—40 °C
  Fan
  Fan Frame	Standard
  Control Type	PWM PST
  Connector	4-Pin Connector + 4-Pin Socket
  Fan Bearing	Fluid Dynamic Bearing
  Electric Characteristics
  Typical Voltage	12 V DC
  Starting Voltage	3.9 V
  Current | Voltage	0.12 A | 12 V DC
  Cable Length	400 mm
  Size & Weight
  Length	140 mm
  Width	140 mm
  Height	27 mm
  Weight	194 g
  Warranty	6 Years
  Note	*** Features, Price, Specifications are subject to change without notice.  LED No Size 140 mm Pack Five Warranty 6 Years Note*** *** Features, Price, Specifications are subject to change without notice.

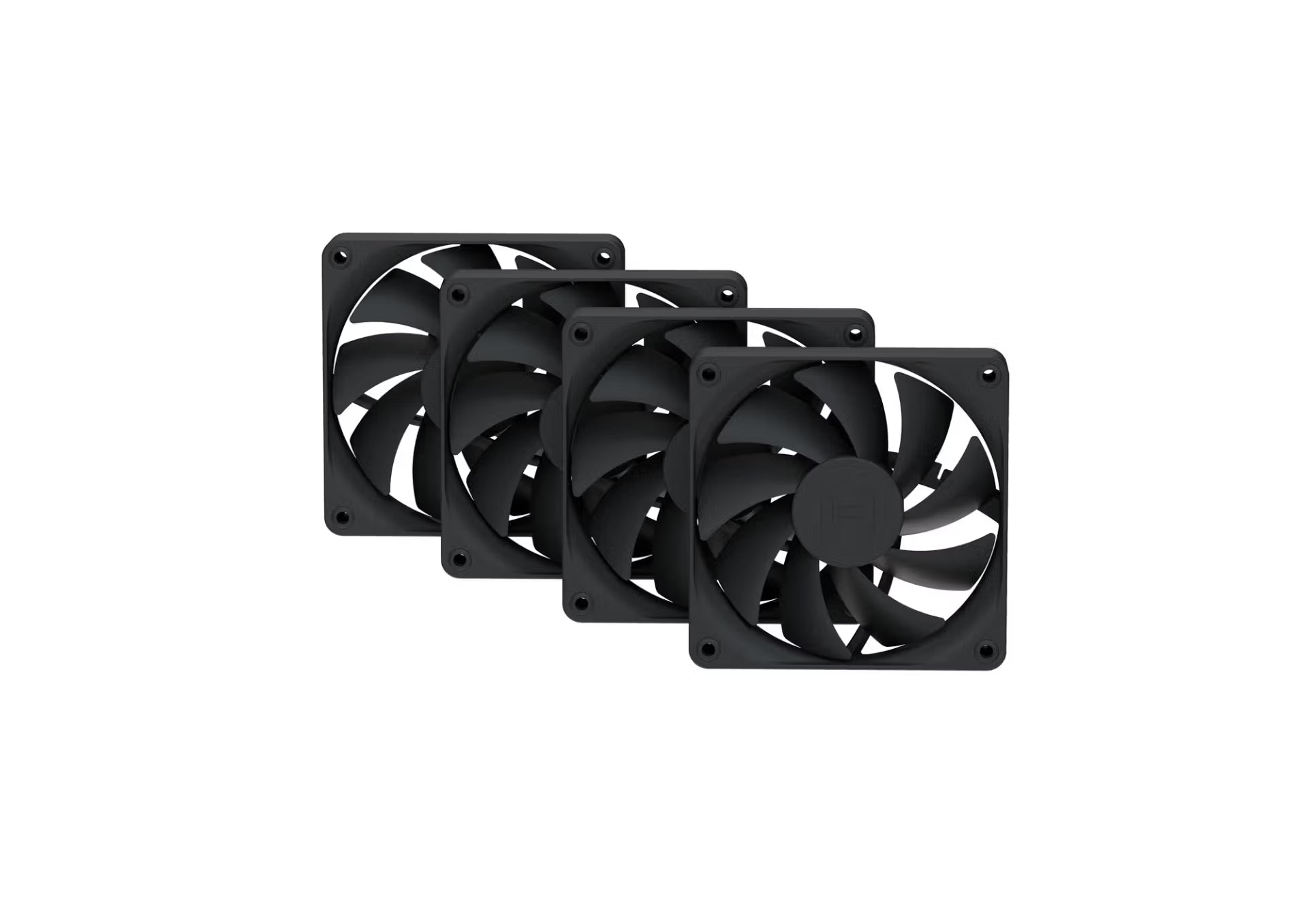

The HYTE FA12 PWM 120mm Fan 4-Pack is designed to provide high-efficiency cooling while perfectly matching the aesthetics of the HYTE case series. These fans feature Pulse Width Modulation (PWM) control, allowing for precise adjustment of fan speeds to balance thermal performance and noise levels based on your system's real-time needs.

Product Variants

Key Features

• Optimized PWM Control: Dynamically adjusts speed from 500 to 1800 RPM, ensuring your system stays cool under load and whisper-quiet during idle.

• High-Performance Airflow: Engineered to provide a high volume of air (up to 72 CFM) to effectively dissipate heat from radiators and chassis.

• Fluid Dynamic Bearings (FDB): Features premium bearings for reduced friction, ultra-low noise operation, and an extended lifespan of up to 60,000 hours.

• Anti-Vibration Rubber Pads: Integrated rubber dampeners on the corners minimize noise caused by vibration against the case or radiator.

• Sleek Aesthetic Design: Features a clean, minimalist frame and blade design that complements the modern look of HYTE Y-Series and X-Series cases.

• Value 4-Pack: Includes four high-quality fans and all necessary mounting screws, providing a complete cooling solution in one box.

Technical Specifications

• Fan Size: 120mm x 120mm x 25mm

• Speed: 500 ~ 1800 RPM

• Airflow: 72 CFM

• Static Pressure: 2.45 mm-H2O

• Noise Level: 10 ~ 28 dBA

• Connector: 4-pin PWM

• Bearing Type: Fluid Dynamic Bearing (FDB)

• Brand:GAMDIAS
• Product Code:AEOLUS-M2-1205R

  Features:

  REFINED BRILLIANCE. EXCEEDING SILENCE.

  • Remote To Switch Between 55 Lighting Effects
  • Five 120mm Trio-Ring RGB Fan Pack
  • Supports Motherboard Sync Functionality
  • AEOLUS Box Supports Up to 8 fans & 2 LED Strips
  • AEOLUS Box Extension enables more lighting effects
  • Hydraulic Bearing

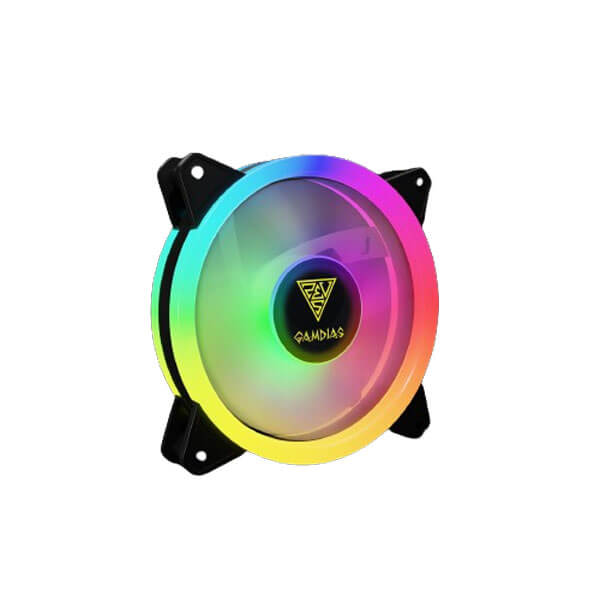

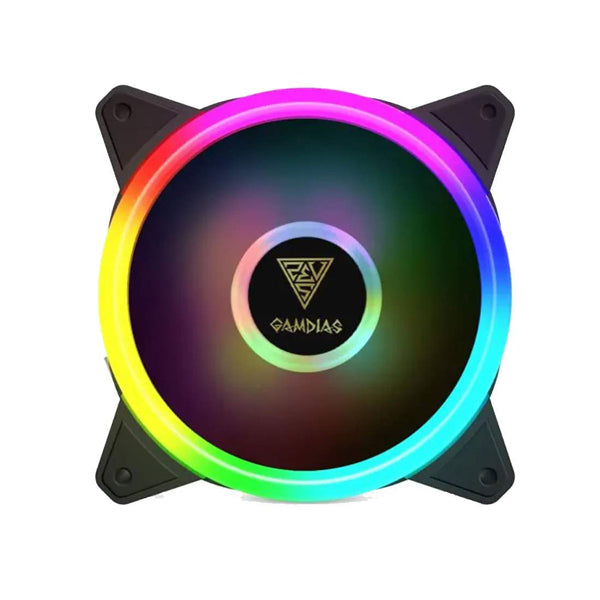

  The AEOLUS M2 1205R is a 5-pack combo of the silent and powerful AEOLUS M2 ARGB fan. The product comes with an auxiliary wireless remote controller and AEOLUS Box with simple plug-in connection to enrich your RGB experience.

  THRICE THE FUN
  AEOLUS M2 takes a Trio-loop design with three fully addressable RGB lighting rings around the front, back, and center of the fan.

  PREMIUM HYDRAULIC BEARING
  With near-zero friction between moving parts, the AEOLUS M2 makes minimal noise while generating maximum airflow while having a long lifespan.

  INTEGRATE YOUR STYLE
  With the magnetic AEOLUS box, you can add up to 8 fans & 2 additional LED strips and easily sync and customize your build with an auxiliary remote.

  CUSTOMIZABLE AND ADAPTIVE
  AEOLUS M2 supports addressable RGB sync via motherboard manufacturer's sync software and also has 30 built-in lighting effects accessible from an included remote or the pc case button.

  Specifications:

  Model	AEOLUS M2-1205R
  Package Contents	Fan x 5 Remote Control x 1 AEOLUS BOX x 1 Mounting Kit x 1
  FAN	Fan: 5 Remote Control: 1 Fan Size: 120 mm FAN Dimensions: 120 x 120 x 25 mm Lighting Effect: 55 Neon-Flex RGB Trio Rings: Yes LED NUMBER: 22 Bearing: Hydraulic Connector: 8 Pin Fan Speed: 700 - 1500 RPM±10% Air Flow: 56 CFM Air Pressure: 1.69 mmH2O Rated Voltage: 12 V (Fan) / 5V(LED) PWM Support: No
  REMOTE CONTROL	Selectable Fan Speeds: Yes Selectable Light Speeds: Yes Selectable Brightness: Yes
  CONTROL BOX	Model: AEOLUS Box Dimensions: 92 x 46 x 13 mm Power Connector: SATA Built-In Magnet: Yes Support Fans Number: 8 Support LED Strips Number: 2 Support Daisy Chain: Yes Support Motherboard Sync Software (5V Addressable Header): Yes Built-in Lighting Effect: 55
  Warranty	1 Year
  Note	*** Features, Price, Specifications are subject to change without notice.  Cabinet Fan LED ARGB Size 120 mm Pack Five Warranty 1 Year Note*** *** Features, Price, Specifications are subject to change without notice.

• Brand:GAMDIAS

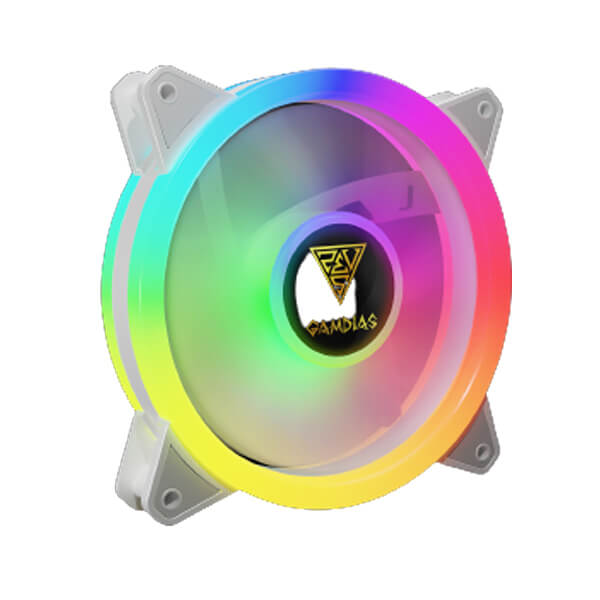

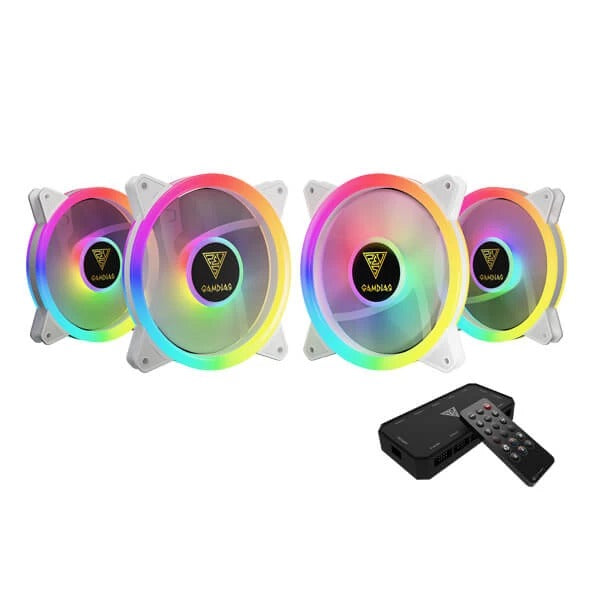

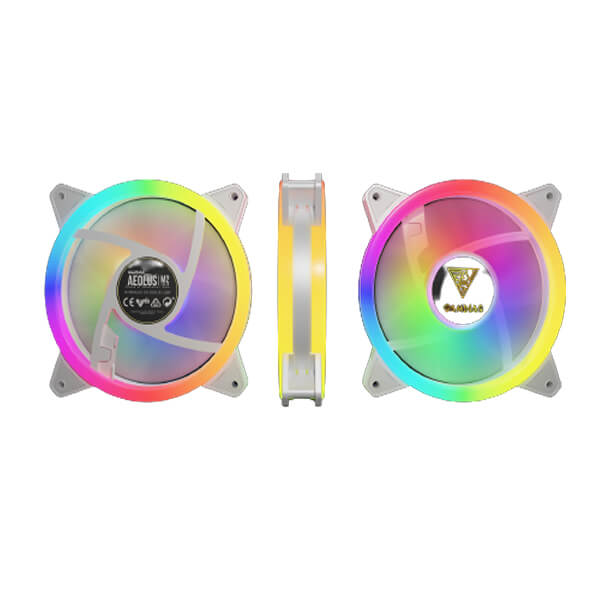

• Product Code:AEOLUS-M2-1204R-WH

  Features:

  • White Edition
  • Remote To Switch Between 55 Lighting Effects
  • Four 120mm Trio-Ring RGB Fan Pack
  • Supports Motherboard Sync Functionality
  • AEOLUS Box Supports Up to 8 fans & 2 LED Strips
  • AEOLUS Box Extension enables more lighting effects
  • Hydraulic Bearing

  THRICE THE FUN
  AEOLUS M2 takes a Trio-loop design with three fully addressable RGB lighting rings around the front, back, and center of the fan.

  PREMIUM HYDRAULIC BEARING
  With near-zero friction between moving parts, the AEOLUS M2 makes minimal noise while generating maximum airflow while having a long lifespan.

  INTEGRATE YOUR STYLE

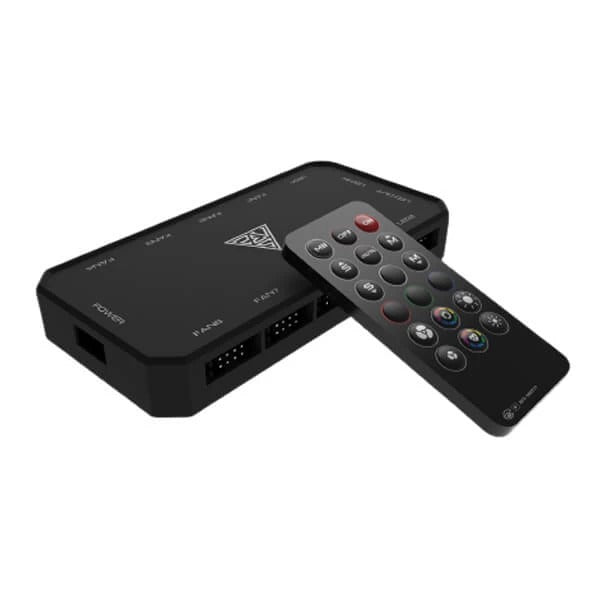

  With the magnetic AEOLUS box, you can add up to 8 fans & 2 additional LED strips and easily sync and customize your build with an auxiliary remote.

  CUSTOMIZABLE AND ADAPTIVE
  AEOLUS M2 supports addressable RGB sync via motherboard manufacturer's sync software and also has 30 built-in lighting effects accessible from an included remote or the pc case button.

  Specifications:

  Model Number	AEOLUS M2-1204R WH
  FAN	Fan : 4 Remote Control : 1 Fan Size : 120 mm FAN Dimensions : 120 x 120 x 25 mm Lighting Effect : 55 Neon-Flex RGB Trio Rings : Yes LED NUMBER : 22 Bearing : Hydraulic Connector : 8 Pin Fan Speed : 700 - 1500 RPM±10% Air Flow : 56 CFM Air Pressure : 1.69 mmH2O Rated Voltage : 12 V (Fan) / 5V(LED) PWM Support : No
  REMOTE CONTROL	Selectable Fan Speeds : Yes Selectable Light Speeds : Yes Selectable Brightness : Yes
  CONTROL BOX	Model :AEOLUS Box Dimensions : 92 x 46 x 13 mm Power Connector : SATA Built-In Magnet : Yes Support Fans Number : 8 Support LED Strips Number : 2 Support Daisy Chain : Yes Support Motherboard Sync Software (5V Addressable Header) : Yes Built-in Lighting Effect : 55
  Warranty	1 Year
  Note	*** Features, Price, Specifications are subject to change without notice.  Cabinet Fan LED ARGB Size 120 mm Pack Quadruple Warranty 1 Year

• Brand:GAMDIAS

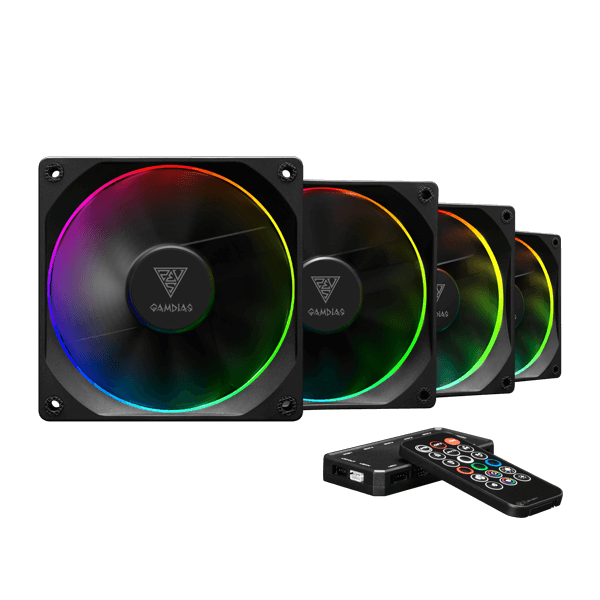

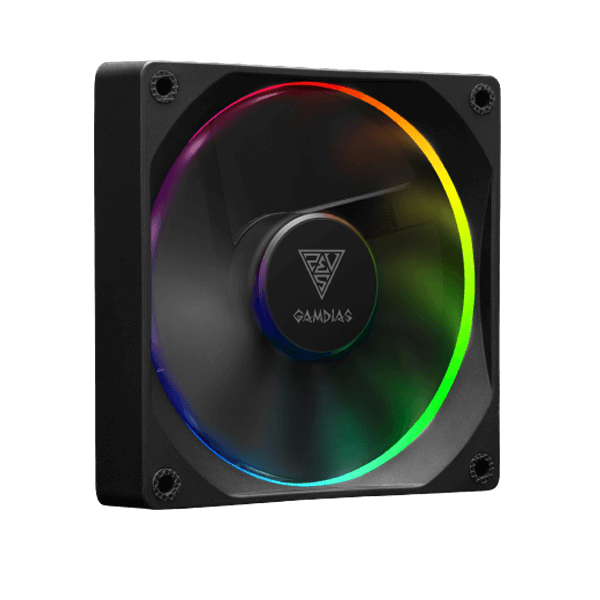

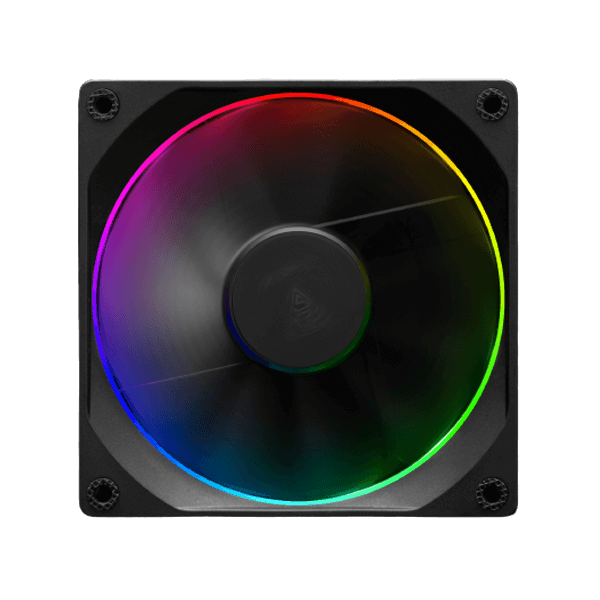

• Product Code:AEOLUS-M3-1204R

  Features:

  • Ultra Silent fan
  • ARGB PWM fan
  • High-Quality Hydraulic bearing
  • SATA power connector
  • Airflow up to 69.01 CFM
  • Optimized fan blades for high airflow performance
  • Supports ARGB Motherboard Sync Functionality
  • PWM AEOLUS Box Supports Up to 8 fans & 2 LED Strips
  • PWM AEOLUS Box Extension enables more lighting effects

  ULTRA PERFORMANCE. SILENT ACOUSTICS.

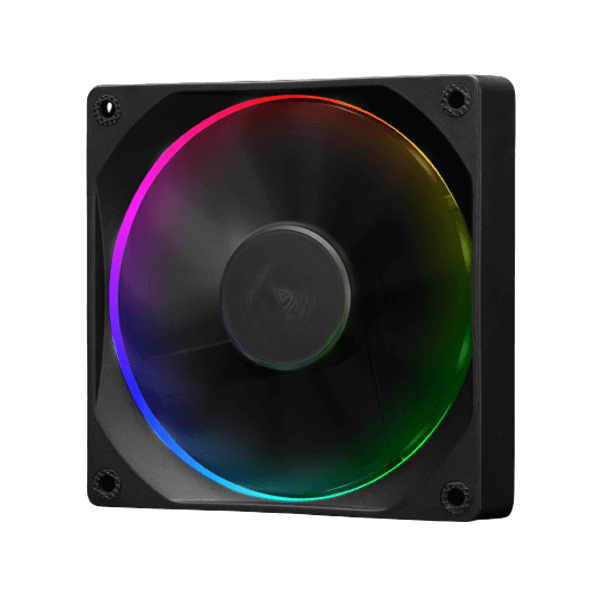

  The AEOLUS M3-1204R is a 4-pack combo of the AEOLUS M3-1201 ARGB fan with an additional PWM AEOLUS box and controller. The fans feature stealth black optimized fan blades for the highest performance, modified hydraulic bearing with smart PWM function, and low-profile ARGB lighting to create the perfect aesthetics.

  SUPERIOR AIRFLOW PERFORMANCE.

  Built with emphasis on performance, The AEOLUS M3 fans can range from 800-2000RPM for extremely high air pressure. With optimized design and PWM, the fan airflow capabilities can ramp up to 69.01 CFM for maximum cooling with quiet operations.

  REFINED FAN DESIGN.

  The fan frame features a chamfered design for a more robust air intake, while the altered fan blade design allows maximum airflow performance, better acoustics, and a minimalist style.

  PREMIUM HYDRAULIC BEARING

  With near-zero friction between moving parts, the AEOLUS M3 fans makes minimal noise while generating maximum airflow while having a long lifespan.

  INTEGRATE YOUR STYLE

  With the magnetic PWM AEOLUS box, you can add up to 8 fans & 2 additional LED strips and easily sync and customize your build with an auxiliary remote.

  CUSTOMIZABLE AND ADAPTIVE

  AEOLUS M3 supports addressable RGB sync via Motherboard manufacturer's sync software and also has 55 built-in lighting effects accessible from an included remote or the pc case button.

  LOW-PROFILE CONCENTRIC LIGHTING

  Fully addressable RGB lighting rings are integrated within the AEOLUS M3 fan frame for a more low-profile take on RGB, providing a subtle yet modish look without losing the vibrant colors of the ARGB lighting.

  Specifications:

  Model Number	AEOLUS M3-1204R
  Package Contents	Fan x 4 Remote Control x 1 PWM AEOLUS BOX x 1 Mounting Kit x 1
  FAN
  Fan	1
  Remote Control	1
  Fan Size	120 mm
  FAN Dimensions	120 x 120 x 25 mm
  Lighting Effect	55 Neon-Flex RGB
  LED NUMBER	12
  Bearing	Hydraulic
  Connector	8 Pin
  Fan Speed	800 - 2000 RPM±10%
  Air Flow	69.01 CFM
  Air Pressure	2.37 mmH2O
  Rated Voltage	12 V (Fan) / 5V(LED)
  PWM Support	Yes
  REMOTE CONTROL
  Selectable Fan Speeds	Yes
  Selectable Light Speeds	Yes
  Selectable Brightness	Yes
  CONTROL BOX
  Model	PWM AEOLUS Box
  Dimensions	92 x 46 x 13 mm
  Power Connector	SATA
  Built-In Magnet	Yes
  Support Fans Number	8
  Support LED Strips Number	2
  Support Daisy Chain	Yes
  Support Motherboard Sync Software (5V Addressable Header)	Yes
  Built-in Lighting Effect	55
  Warranty	1 Year
  Note	Features, Price, Specifications are subject to change without notice. Images used for representation purpose only Cabinet Fan LED ARGB Size 120 mm Pack Four Warranty 1 Year

• Brand:GAMDIAS

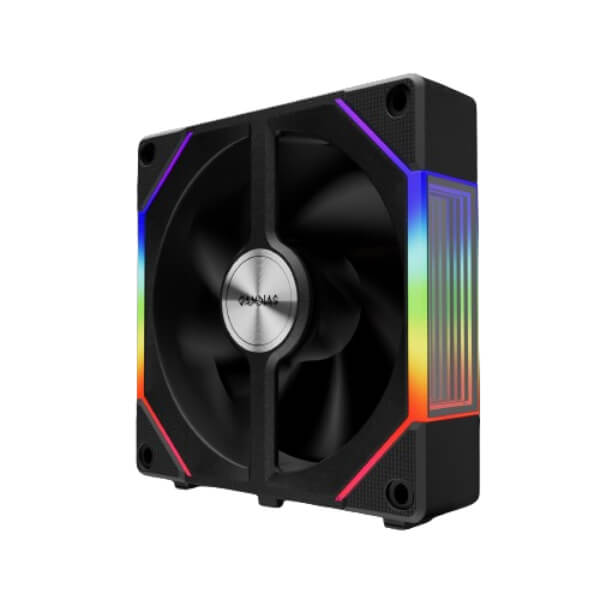

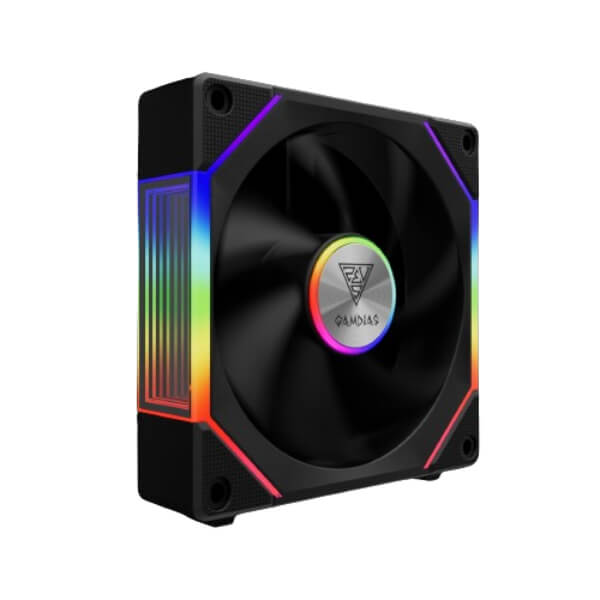

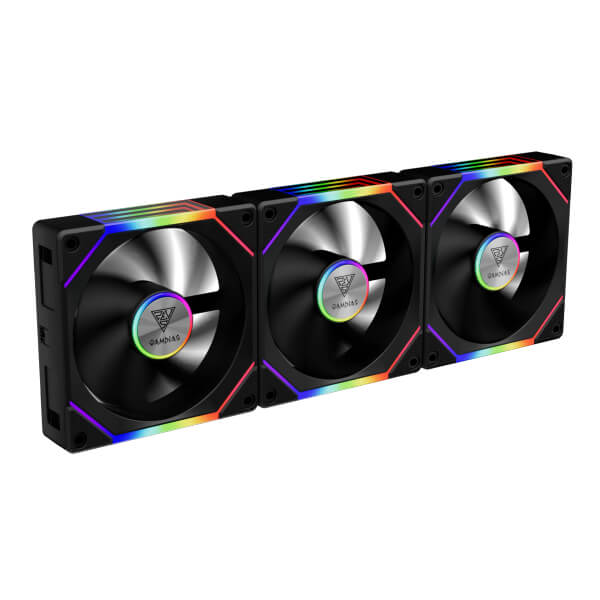

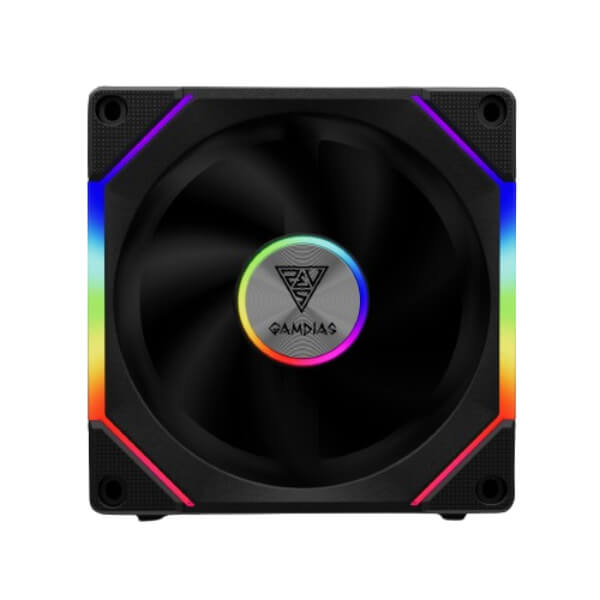

• Product Code:AEOLUS-P2-1203

  Features:

  • ARGB PWM Fans
  • Daisy Chain Via Cableless Connection
  • Dual Infinity Mirror Lighting on Both Sides
  • Swappable Fan Blades (Reverse Fan Blades Included)
  • Includes a Lighting Controller
  • 30mm Thickness Fans
  • Premium Hydraulic Bearing
  • PBT Fan Case With Thicker Surface
  • Compatible to AEOLUS P2-1203U/USB AEOLUS Box II/ZEUS CAST Software

    Specifications:

    Model	AEOLUS P2-1203
    Fan	3
    Fan Size	120 mm
    FAN Dimensions	120 x 120 x 30 mm
    Lighting Effect	USB control
    Support Motherboard Sync Software (5V Addressable Header)	Yes
    Infinity Mirror	Yes
    LED NUMBER	32
    Bearing	Hydraulic
    Connector	4Pin PWM Connector
    Fan Speed	1000 - 2400 RPM±10%
    Air Flow	74.97 CFM
    Air Pressure	3.1 mmH2O
    Rated Voltage	12 V (Fan) / 5V(LED)
    PWM Support	Yes
    Package Contents	Fan x 3 Reverse Fan Blade x 3 Extension Cable x 2 Motherboard Sync Cable x 1 Lubricant x 1 Lighting Controller x 1
    Warranty	1 Year
    Note	*** Image use as reference only *** Features, Price, Specifications are subject to change without notice. Cabinet Fan LED ARGB Size 120 mm Pack Triple Fan Controller No Warranty 1 Year Note*** *** Features, Price, Specifications are subject to change without notice.

• Brand:GAMDIAS

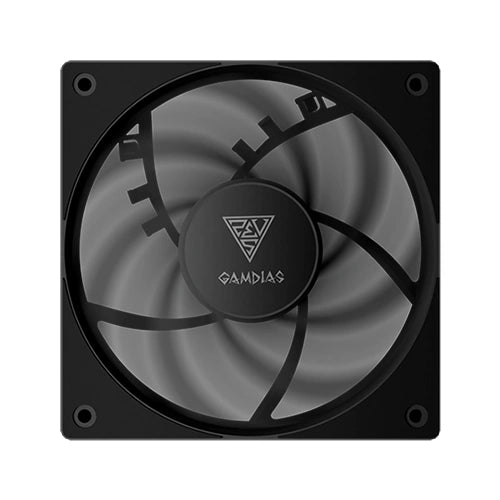

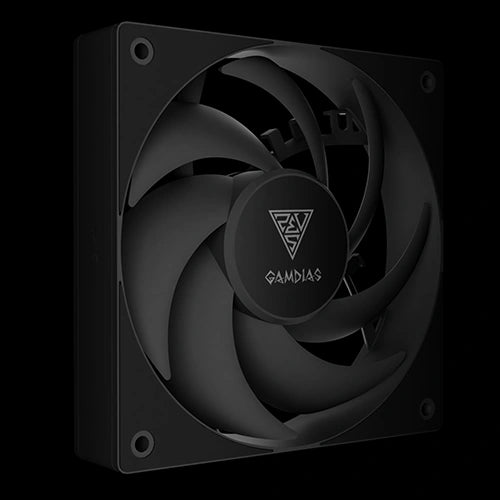

• Product Code:NOTUS-M1-1201

  Features:

  • Premium All-black Design
  • PWM Performance Fan
  • Airflow up to 57.56 CFM
  • Closed-loop Control System
  • Advanced P/Q Curve
  • Whisper-quiet Operation
  • Optimized Tip Clearance
  • High-Quality Hydraulic Bearing
  • Fan Size: 120 mm
  • FAN Dimensions: 120 x 120 x 25 mm
  • Bearing: Hydraulic
  • Connector: 4Pin PWM Connector
  • Fan Speed: 400 - 1600 RPM±10%
  • Air Flow: 57.56 CFM
  • Air Pressure: 1.75 mmH2O
  • Rated Voltage: 12 V (Fan)
  • PWM Support: Yes

  SILENT. STURDY. POWERFUL.

  The NOTUS M1-1201 is engineered for high-performance cooling with impressive quietness. Capable of reaching to 1,600 RPM, it minimizes air leakage to enhance airflow efficiency. Even at maximum speed, it operates at just 25dBA, ensuring near-silent performance. Built from durable PBT material, this fan offers long-lasting reliability, making it the ideal choice for demanding cooling applications.

  SUPERIOR AIRFLOW PERFORMANCE

  Built with emphasis on performance, the NOTUS M1-1201 fan operates within a dynamic 400-1600 RPM range, delivering powerful air pressure. Its optimized design and PWM control enable airflow of up to 57.56 CFM, ensuring maximum cooling efficiency with whisper-quiet operation.

  WHISPER-QUIET OPERATION

  The NOTUS M1 fan delivers ultra-silent operation, maintaining a noise level of just 25dBA even at maximum speed, ensuring a peaceful gaming experience.

  STEADY RPM TECHNOLOGY

  The closed-loop system ensures steady RPM and consistent airflow, delivering reliable cooling performance across PCs, air coolers, and liquid coolers.

  ADVANCED P/Q CURVE

  The NOTUS M1 fan is engineered to deliver exceptional performance across all cooling applications. Whether integrated into a radiator or an air cooler, this fan stand as the optimal choice.

  OPTIMIZED TIP CLEARANCE

  The NOTUS M1 features a precision blade-to-frame design that enhances airflow performance while ensuring quiet operation. With a tight 1 mm tip clearance, this fan minimizes airflow leakage, delivering efficient cooling with reduced noise.

  PREMIUM HYDRAULIC BEARING

  With near-zero friction between moving parts, the fan delivers whisper-quiet operation, exceptional airflow, and extended durability, ensuring peak performance and longevity.

  ENGINEERED FOR OPTIMAL COOLING

  The anti-vibration rubber pads, molded in place, reduce fan vibrations, enabling higher RPMs without increasing noise. Covering 80% of each corner, these pads help maintain quiet operation even at elevated speeds.

  Cabinet Fan
  LED	None-LED
  Size	120 mm
  Pack	Single
  Fan Controller	Yes
  Warranty	1 Year
  Note***	Features, Price, Specifications are subject to change without notice. Images used for representation purpose only

• Brand:GAMDIAS

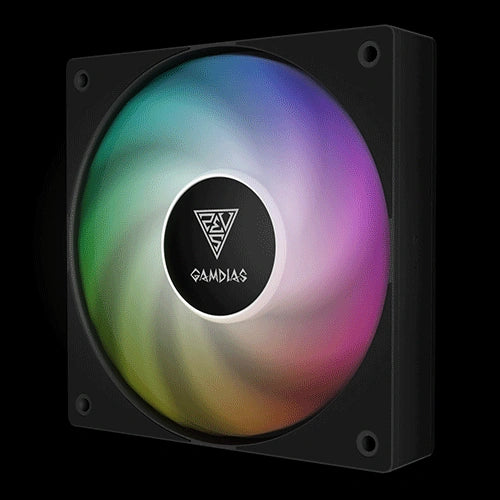

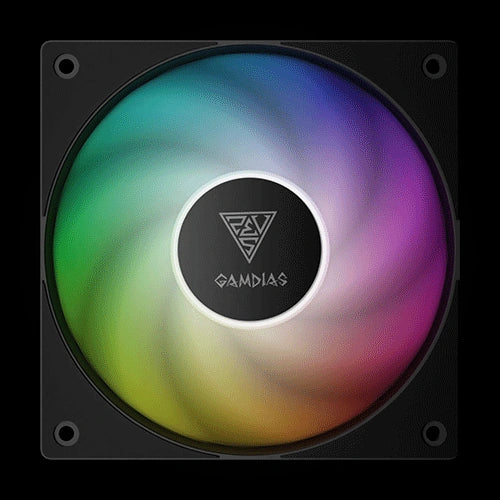

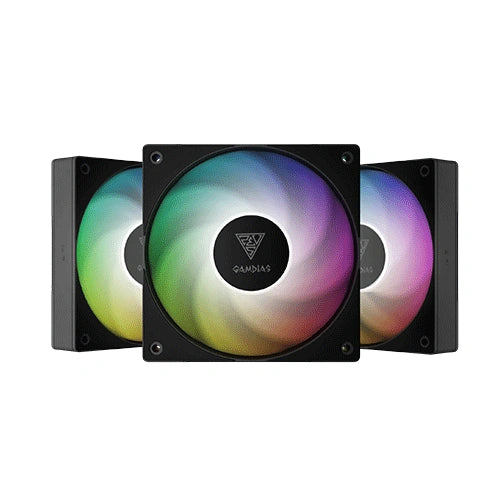

• Product Code:NOTUS-M1-1203-ARGB

  Features:

  • ARGB PWM Fans
  • Airflow up to 57.56 CFM
  • Closed-loop Control System
  • Advanced P/Q Curve
  • Whisper-quiet Operation
  • Optimized Tip Clearance
  • Swappable Fan Blades (Reverse Fan Blades Included)
  • High-Quality Hydraulic Bearing
  • Fan Size: 120 mm
  • FAN Dimensions: 120 x 120 x 25 mm
  • Lighting Effect: ARGB
  • LED NUMBER: 8
  • Bearing: Hydraulic
  • Connector: 4Pin PWM Connector/3Pin ARGB Connector
  • Fan Speed: 400 - 1600 RPM±10%
  • Air Flow: 57.56 CFM
  • Air Pressure: 1.75 mmH2O
  • Rated Voltage: 12 V (Fan) / 5V(LED)
  • PWM Support: Yes

  SILENT. STURDY. POWERFUL.

  The NOTUS M1 ARGB Series is engineered for high-performance cooling with impressive quietness. Capable of reaching up to 1,600 RPM, it minimizes air leakage to enhance airflow efficiency. Even at maximum speed, it operates at just 25dBA, ensuring near-silent performance. Built from durable PBT material, this fan offers long-lasting reliability, making it the ideal choice for demanding cooling applications.

  SUPERIOR AIRFLOW PERFORMANCE

  Built with emphasis on performance, the NOTUS M1-1203 ARGB fans operate within a dynamic 400-1600 RPM range, delivering powerful air pressure. Its optimized design and PWM control enable airflow of up to 57.56 CFM, ensuring maximum cooling efficiency with whisper-quiet operation.

  WHISPER-QUIET OPERATION

  The NOTUS M1 ARGB fan delivers ultra-silent operation, maintaining a noise level of just 25dBA even at maximum speed, ensuring a peaceful gaming experience.

  SWAPPABLE FAN BLADE INCLUDED

  NOTUS M1-1203 ARGB includes pre-installed standard orientation fan blades and three reversed orientation fan blades, offering a flexible option for switching the airflow from intake to exhaust without changing the orientation.

  STEADY RPM TECHNOLOGY

  The closed-loop system ensures steady RPM and consistent airflow, delivering reliable cooling performance across PCs, air coolers, and liquid coolers.

  ADVANCED P/Q CURVE

  The NOTUS M1 ARGB fan is engineered to deliver exceptional performance across all cooling applications. Whether integrated into a radiator or an air cooler, this fan stand as the optimal choice.

  OPTIMIZED TIP CLEARANCE

  The NOTUS M1 ARGB features a precision blade-to-frame design that enhances airflow performance while ensuring quiet operation. With a tight 1 mm tip clearance, this fan minimizes airflow leakage, delivering efficient cooling with reduced noise.

  PREMIUM HYDRAULIC BEARING

  With near-zero friction between moving parts, the fan deliver whisper-quiet operation, exceptional airflow, and extended durability, ensuring peak performance and longevity.

  ENGINEERED FOR OPTIMAL COOLING

  The anti-vibration rubber pads, molded in place, reduce fan vibrations, enabling higher RPMs without increasing noise. Covering 80% of each corner, these pads help maintain quiet operation even at elevated speeds.

  MOTHERBOARD ARGB SUPPORT

  The NOTUS M1-1203 ARGB fans supports addressable RGB sync via motherboard manufacturer's sync software through included cable modules.

  Cabinet Fan
  LED	ARGB
  Size	120 mm
  Pack	Triple
  Fan Controller	Yes
  Warranty	1 Year
  Note***	Features, Price, Specifications are subject to change without notice. Images used for representation purpose only

• Brand:GAMDIAS

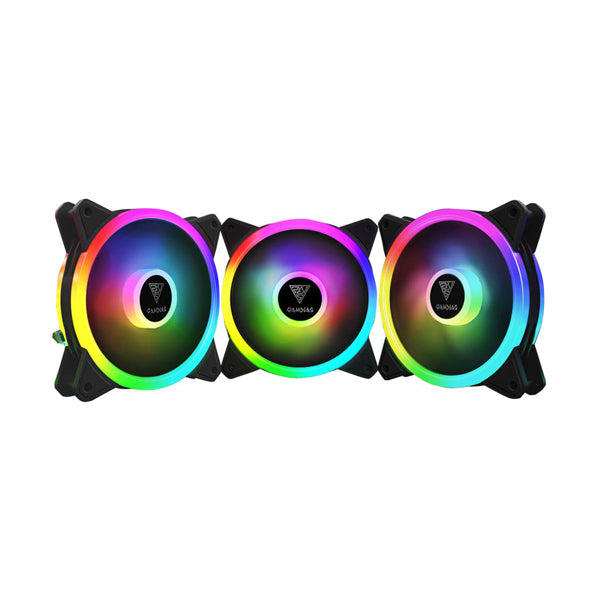

• Product Code:AEOLUS-M2-1203-LITE

  Specifications



  Model	AEOLUS-M2-1203-LITE
  Fan
  Dimensions	120 x 120 x 25 mm
  Lighting Effect	30 Chromatic LED Effects
  Motherboard Sync Rated Voltage	5V 3-pin RGB header Only
  Trio Ring RGB	Yes
  LED Number	22
  Bearing	Hydraulic
  Connector	SATA
  Fan Speed	1200 RPM±10%
  Rated Voltage	Fan 12V LED 5V
  Fan Speed	1200 RPM±10%
  Air Flow	46.7 CFM
  Air Pressure	1.31 mmH2O
  Noise Level	19 dBA
  Package Contents
  Fan	3
  Mounting Kit	Yes
  Warranty	1 Year
  Note	***Features, Price and Specifications are subject to change without notice.   Cabinet Fan LED ARGB Size 120 mm Pack Triple Warranty 1 Year

• Brand:GAMDIAS
• Product Code:AEOLUS-M3-1204R

  Features:

  • Ultra Silent fan
  • ARGB PWM fan
  • High-Quality Hydraulic bearing
  • SATA power connector
  • Airflow up to 69.01 CFM
  • Optimized fan blades for high airflow performance
  • Supports ARGB Motherboard Sync Functionality
  • PWM AEOLUS Box Supports Up to 8 fans & 2 LED Strips
  • PWM AEOLUS Box Extension enables more lighting effects

  ULTRA PERFORMANCE. SILENT ACOUSTICS.

  The AEOLUS M3-1204R is a 4-pack combo of the AEOLUS M3-1201 ARGB fan with an additional PWM AEOLUS box and controller. The fans feature stealth black optimized fan blades for the highest performance, modified hydraulic bearing with smart PWM function, and low-profile ARGB lighting to create the perfect aesthetics.

  SUPERIOR AIRFLOW PERFORMANCE.

  Built with emphasis on performance, The AEOLUS M3 fans can range from 800-2000RPM for extremely high air pressure. With optimized design and PWM, the fan airflow capabilities can ramp up to 69.01 CFM for maximum cooling with quiet operations.

  REFINED FAN DESIGN.

  The fan frame features a chamfered design for a more robust air intake, while the altered fan blade design allows maximum airflow performance, better acoustics, and a minimalist style.

  PREMIUM HYDRAULIC BEARING

  With near-zero friction between moving parts, the AEOLUS M3 fans makes minimal noise while generating maximum airflow while having a long lifespan.

  INTEGRATE YOUR STYLE

  With the magnetic PWM AEOLUS box, you can add up to 8 fans & 2 additional LED strips and easily sync and customize your build with an auxiliary remote.

  CUSTOMIZABLE AND ADAPTIVE

  AEOLUS M3 supports addressable RGB sync via Motherboard manufacturer's sync software and also has 55 built-in lighting effects accessible from an included remote or the pc case button.

  LOW-PROFILE CONCENTRIC LIGHTING

  Fully addressable RGB lighting rings are integrated within the AEOLUS M3 fan frame for a more low-profile take on RGB, providing a subtle yet modish look without losing the vibrant colors of the ARGB lighting.

  Specifications:

  Model Number	AEOLUS M3-1204R
  Package Contents	Fan x 4 Remote Control x 1 PWM AEOLUS BOX x 1 Mounting Kit x 1
  FAN
  Fan	1
  Remote Control	1
  Fan Size	120 mm
  FAN Dimensions	120 x 120 x 25 mm
  Lighting Effect	55 Neon-Flex RGB
  LED NUMBER	12
  Bearing	Hydraulic
  Connector	8 Pin
  Fan Speed	800 - 2000 RPM±10%
  Air Flow	69.01 CFM
  Air Pressure	2.37 mmH2O
  Rated Voltage	12 V (Fan) / 5V(LED)
  PWM Support	Yes
  REMOTE CONTROL
  Selectable Fan Speeds	Yes
  Selectable Light Speeds	Yes
  Selectable Brightness	Yes
  CONTROL BOX
  Model	PWM AEOLUS Box
  Dimensions	92 x 46 x 13 mm
  Power Connector	SATA
  Built-In Magnet	Yes
  Support Fans Number	8
  Support LED Strips Number	2
  Support Daisy Chain	Yes
  Support Motherboard Sync Software (5V Addressable Header)	Yes
  Built-in Lighting Effect	55
  Warranty	1 Year
  Note	Features, Price, Specifications are subject to change without notice. Images used for representation purpose only  Cabinet Fan LED ARGB Size 120 mm Pack Four Warranty 1 Year

• Brand:GAMDIAS

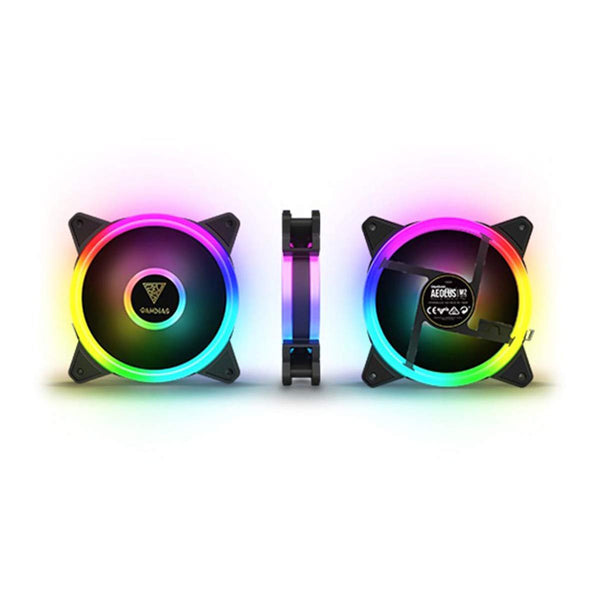

• Product Code:AEOLUS-M2-1201

  Specifications

  Model	AEOLUS-M2-1201
  Dimensions	120 x 120 x 25 mm
  Support Motherboard RGB Sync Connectors	5V 3-pin Addressable (Digital) LED RGB Header Only
  Connector	Male and female Molex
  Speed	1200 RPM ±10%
  Air Flow	46.7 CFM
  Air Pressure	1.31 mmH2O
  Noise	19.8 dBA
  Bearing	Hydraulic
  Rated Voltage	12 V(FAN) / 5V(LED)
  Package Contents	Fan x 1 Metal Screw x 4
  Warranty	1 Year
  Note	Actual products may vary due to product enhancement and are mainly based on specifications on package. ***Features, Price and Specifications are subject to change without notice. Cabinet Fan LED ARGB Size 120 mm Pack Single Warranty 1 Year

• Brand:GAMDIAS

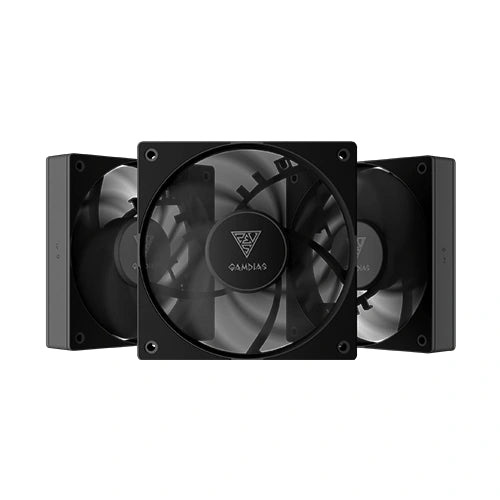

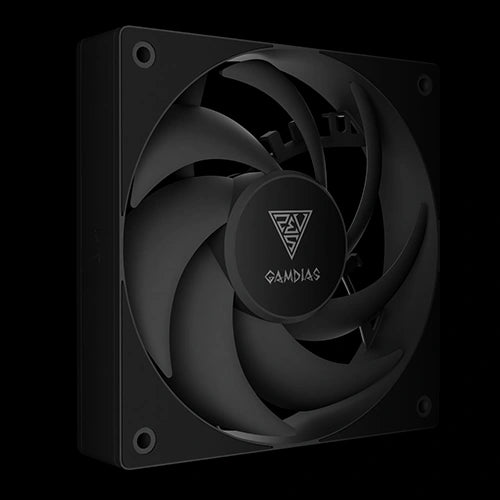

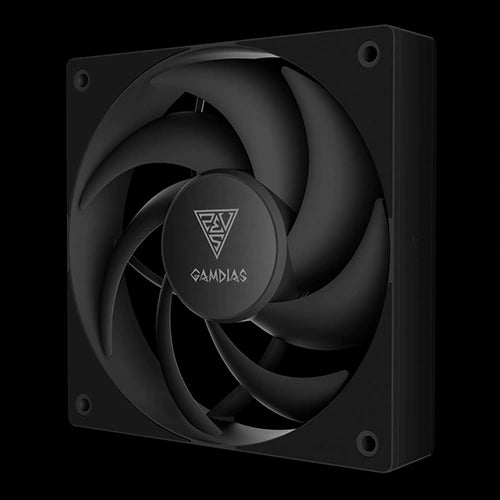

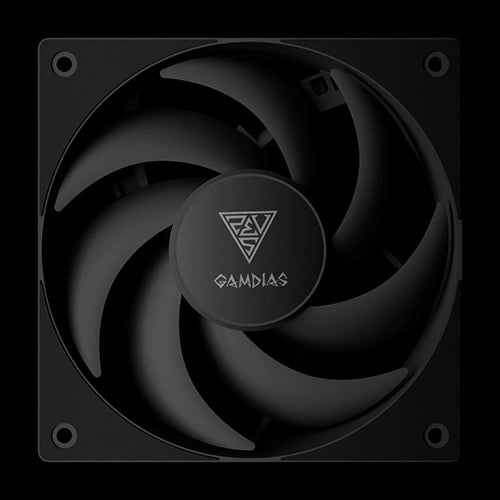

• Product Code:NOTUS-M1-1203

  Features:

  • Premium All-black Design
  • PWM Performance Fans
  • Airflow up to 57.56 CFM
  • Closed-loop Control System
  • Advanced P/Q Curve
  • Whisper-quiet Operation
  • Optimized Tip Clearance
  • High-Quality Hydraulic Bearing
  • Fan Size: 120 mm
  • FAN Dimensions: 120 x 120 x 25 mm
  • Bearing: Hydraulic
  • Connector: 4Pin PWM Connector
  • Fan Speed: 400 - 1600 RPM±10%
  • Air Flow: 57.56 CFM
  • Air Pressure: 1.75 mmH2O
  • Rated Voltage: 12 V (Fan)
  • PWM Support: Yes

  SILENT. STURDY. POWERFUL.

  The NOTUS M1-1203 is engineered for high-performance cooling with impressive quietness. Capable of reaching to 1,600 RPM, it minimizes air leakage to enhance airflow efficiency. Even at maximum speed, it operates at just 25dBA, ensuring near-silent performance. Built from durable PBT material, this fan offers long-lasting reliability, making it the ideal choice for demanding cooling applications.

  SUPERIOR AIRFLOW PERFORMANCE

  Built with emphasis on performance, the NOTUS M1-1203 fans operate within a dynamic 400-1600 RPM range, delivering powerful air pressure. Its optimized design and PWM control enable airflow of up to 57.56 CFM, ensuring maximum cooling efficiency with whisper-quiet operation.

  WHISPER-QUIET OPERATION

  The NOTUS M1 fans deliver ultra-silent operation, maintaining a noise level of just 25dBA even at maximum speed, ensuring a peaceful gaming experience.

  STEADY RPM TECHNOLOGY

  The closed-loop system ensures steady RPM and consistent airflow, delivering reliable cooling performance across PCs, air coolers, and liquid coolers.

  ADVANCED P/Q CURVE

  The NOTUS M1 fans are engineered to deliver exceptional performance across all cooling applications. Whether integrated into a radiator or an air cooler, these fans stand as the optimal choice.

  OPTIMIZED TIP CLEARANCE

  The NOTUS M1 features a precision blade-to-frame design that enhances airflow performance while ensuring quiet operation. With a tight 1 mm tip clearance, this fan minimizes airflow leakage, delivering efficient cooling with reduced noise.

  PREMIUM HYDRAULIC BEARING

  With near-zero friction between moving parts, the fans deliver whisper-quiet operation, exceptional airflow, and extended durability, ensuring peak performance and longevity.

  ENGINEERED FOR OPTIMAL COOLING

  The anti-vibration rubber pads, molded in place, reduce fan vibrations, enabling higher RPMs without increasing noise. Covering 80% of each corner, these pads help maintain quiet operation even at elevated speeds.

  Cabinet Fan
  LED	None
  Size	120 mm
  Pack	Triple
  Fan Controller	Yes
  Warranty	1 Year
  Note***	Features, Price, Specifications are subject to change without notice. Images used for representation purpose only

• Brand:GAMDIAS

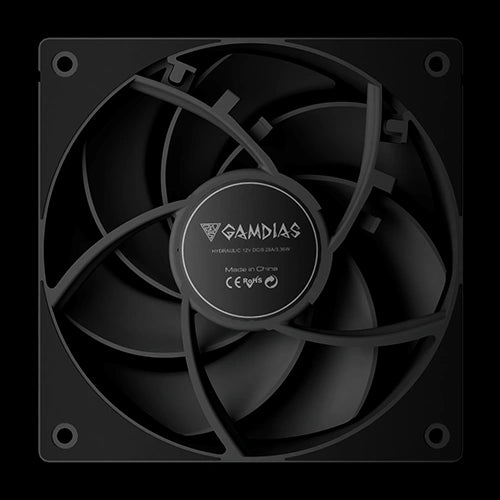

• Product Code:NOTUS-M1-1201

  Features:

  • Premium All-black Design
  • PWM Performance Fan
  • Airflow up to 57.56 CFM
  • Closed-loop Control System
  • Advanced P/Q Curve
  • Whisper-quiet Operation
  • Optimized Tip Clearance
  • High-Quality Hydraulic Bearing
  • Fan Size: 120 mm
  • FAN Dimensions: 120 x 120 x 25 mm
  • Bearing: Hydraulic
  • Connector: 4Pin PWM Connector
  • Fan Speed: 400 - 1600 RPM±10%
  • Air Flow: 57.56 CFM
  • Air Pressure: 1.75 mmH2O
  • Rated Voltage: 12 V (Fan)
  • PWM Support: Yes

  SILENT. STURDY. POWERFUL.

  The NOTUS M1-1201 is engineered for high-performance cooling with impressive quietness. Capable of reaching to 1,600 RPM, it minimizes air leakage to enhance airflow efficiency. Even at maximum speed, it operates at just 25dBA, ensuring near-silent performance. Built from durable PBT material, this fan offers long-lasting reliability, making it the ideal choice for demanding cooling applications.

  SUPERIOR AIRFLOW PERFORMANCE

  Built with emphasis on performance, the NOTUS M1-1201 fan operates within a dynamic 400-1600 RPM range, delivering powerful air pressure. Its optimized design and PWM control enable airflow of up to 57.56 CFM, ensuring maximum cooling efficiency with whisper-quiet operation.

  WHISPER-QUIET OPERATION

  The NOTUS M1 fan delivers ultra-silent operation, maintaining a noise level of just 25dBA even at maximum speed, ensuring a peaceful gaming experience.

  STEADY RPM TECHNOLOGY

  The closed-loop system ensures steady RPM and consistent airflow, delivering reliable cooling performance across PCs, air coolers, and liquid coolers.

  ADVANCED P/Q CURVE

  The NOTUS M1 fan is engineered to deliver exceptional performance across all cooling applications. Whether integrated into a radiator or an air cooler, this fan stand as the optimal choice.

  OPTIMIZED TIP CLEARANCE

  The NOTUS M1 features a precision blade-to-frame design that enhances airflow performance while ensuring quiet operation. With a tight 1 mm tip clearance, this fan minimizes airflow leakage, delivering efficient cooling with reduced noise.

  PREMIUM HYDRAULIC BEARING

  With near-zero friction between moving parts, the fan delivers whisper-quiet operation, exceptional airflow, and extended durability, ensuring peak performance and longevity.

  ENGINEERED FOR OPTIMAL COOLING

  The anti-vibration rubber pads, molded in place, reduce fan vibrations, enabling higher RPMs without increasing noise. Covering 80% of each corner, these pads help maintain quiet operation even at elevated speeds.

  Cabinet Fan
  LED	None-LED
  Size	120 mm
  Pack	Single
  Fan Controller	Yes
  Warranty	1 Year
  Note***	Features, Price, Specifications are subject to change without notice. Images used for representation purpose only
