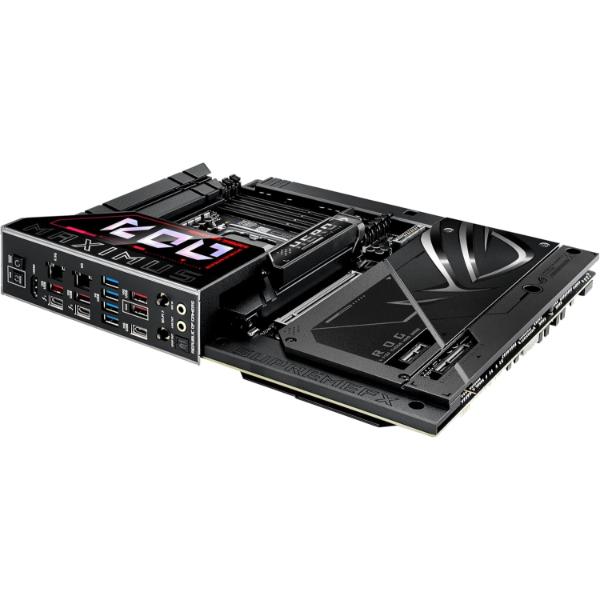

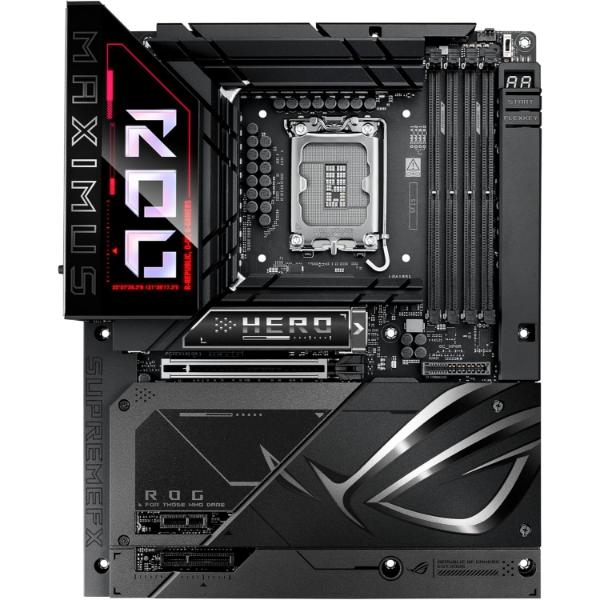

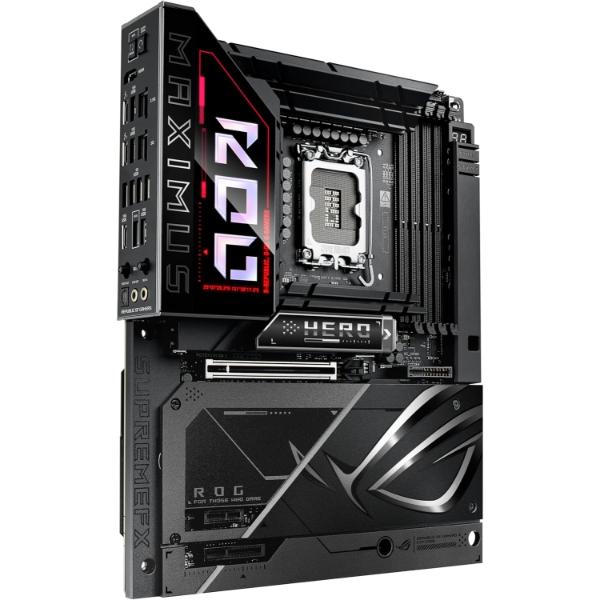

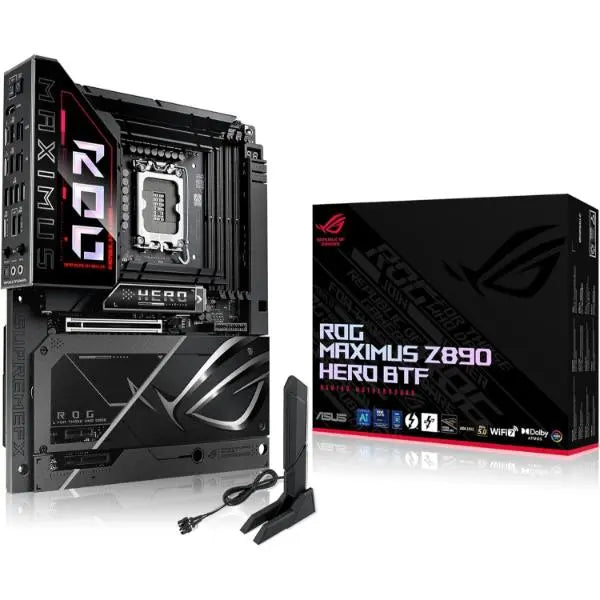

      ASUS ROG MAXIMUS Z890 HERO BTF LGA 1851 ATX motherboard, hidden-connector design, Advanced AI PC Ready, 22+1+2+2 stages, DDR5, WiFi 7, 2.5G LAN, 6x M.2, PCIe 5.0, Thunderbolt 4, USB Type-C, AI OC




      The ROG Maximus Z890 Hero BTF features hidden connectors for motherboard power, graphics card power, USB ports and fan cables, enabling an ultra-clean build for your Intel^® Core™ Ultra (Series 2) rig. Like the standard Z890 Hero, it also boasts ASUS-exclusive AI-enhanced tuning, DIY-friendly innovations, PCIe^® 5.0, and DDR5 slots with NitroPath DRAM Technology that enables advanced memory overclocking headroom and stability. Meanwhile, Polymo Lighting II elevates your overall system aesthetic.







      Advanced BTF Design

      With the combination of a BTF graphics card, motherboard and chassis, you can enjoy a full hidden-connector experience. This Advanced BTF approach is achieved through the new graphics card high-power slot available on BTF motherboards, which can deliver up to 600 watts to BTF graphics cards. With a full set of BTF components, builders can eliminate visible cables for an extra-clean aesthetic.



      HIDDEN-CONNECTOR DESIGN

      The hidden-connector design can be ideal for first-time builders, because it provides easier cable management. The absence of visible cables also creates a clean and tidy look that would normally require an expert.



      GRAPHICS CARD HIGH-POWER SLOT

      The graphics card high-power slot stands ready to supply all the wattage that a BTF graphics card needs. This special design can deliver up to 600 watts through the motherboard itself, eliminating the need for visible 8-pin or 16-pin power cables on the front.

















      ASUS AI ADVISOR

      Using AI technology to understand natural-language questions or scenario descriptions, ASUS AI Advisor allows users to explore the functionality and advanced features of ASUS motherboards in a simple and straightforward way.




      NPU BOOST

      The integrated NPU in Intel^® Core™ Ultra Processors (Series 2) efficiently accelerates AI workflows — and NPU Boost lets you do more with it. This BIOS feature overclocks the NPU with just one click, increasing performance by up to 24%.



      DDR5 DOMINATION

      Thanks to improved signal routing, now enthusiast-grade kits can be driven far beyond the 9 GT/s mark on the ROG Maximus Z890 Hero BTF*.



      AEMP III

      ASUS Enhanced Memory Profile III (AEMP III) is an advanced firmware feature that empowers users to achieve unparalleled memory performance with cutting-edge CUDIMM memory.











      M.2 SLOTS WITH
      ROG M.2 POWERBOOST

      The ROG Maximus Z890 Hero BTF features ROG M.2 PowerBoost, which enables all M.2 devices to operate simultaneously at optimal performance.



      PCIE 5.0 EXPANSION SLOT

      The primary PCIe 5.0 x16 SafeSlot with PCIe Slot Q-Release Slim fully supports next-gen graphics cards.











      BIOS Q-DASHBOARD

      Simplify your motherboard configuration with BIOS Q-Dashboard. Its intuitive visual representation of hardware connections and corresponding BIOS settings takes the complexity out of setting up your system. Upgrade now, and discover the power of BIOS Q-Dashboard to easily and efficiently enhance your computing setup.









      Component	Details
      CPU Support	Intel® Core™ Ultra Processors (Series 2) on LGA1851 socket. Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0.
      Chipset	Intel® Z890 Chipset.
      Memory	4 x DIMM slots, max. 256GB, DDR5. Supports up to 9200+MT/s (OC). Dual-channel architecture.
      Graphics	1 x HDMI™ port (max 8K@60Hz with DSC). 2 x Intel® Thunderbolt™ 4 ports (USB Type-C®) supporting DisplayPort. Graphics vary by CPU.
      Expansion Slots	1 x PCIe 5.0 x16 slot (from CPU), and 1 x PCIe 4.0 x4 slot, 1 x PCIe 4.0 x1 slot (from Chipset). Note: PCIe 5.0 x16 slot runs at x8 mode when certain M.2 slots are enabled.
      Storage	6 x M.2 slots (4 x from CPU, 2 x from Chipset) and 4 x SATA 6Gb/s ports. Supports PCIe 5.0 x4 and PCIe 4.0 x4 modes for M.2.
      Ethernet	1 x Intel® 2.5Gb Ethernet and 1 x Realtek 5Gb Ethernet.
      Wireless & Bluetooth	Wi-Fi 7 (802.11be) with 2x2 antenna, supporting 2.4/5/6GHz bands. Bluetooth® v5.4.
      USB	Rear: 2 x Thunderbolt™ 4 (Type-C), 5 x USB 10Gbps (4 x Type-A, 1 x Type-C), 4 x USB 5Gbps (Type-A). Front: 1 x USB 20Gbps (Type-C with up to 60W PD/QC4+), 1 x USB 10Gbps (Type-C), 2 x USB 5Gbps headers (4 ports), 2 x USB 2.0 headers (4 ports).
      Audio	ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4082 with ESS® ES9219 QUAD DAC. Supports impedance sense and spatial audio via front panel.
      Back Panel I/O	2 x Thunderbolt™ 4 (USB Type-C®), 5 x USB 10Gbps, 4 x USB 5Gbps, 1 x HDMI™, 1 x Wi-Fi module, 1 x Intel® 2.5Gb Ethernet, 1 x Realtek 5Gb Ethernet, audio jacks, S/PDIF out, BIOS FlashBack™, Clear CMOS button.
      Internal I/O	Numerous headers for fans, power, M.2 slots, SATA, USB, and miscellaneous features like Addressable Gen 2 headers and a Start button.
      Special Features	Extreme OC Kit, Extreme Engine Digi+, ASUS Q-Design (M.2 Q-Latch, Q-Code, Q-LED, etc.), ASUS Thermal Solution, ASUS EZ DIY, Aura Sync, ROG M.2 PowerBoost.
      Software Features	ROG Exclusive Software (CPU-Z, Dolby Atmos), ASUS Exclusive Software (Armoury Crate with AIDA64, Aura Creator, etc.), ASUS AI Advisor, Thunderbolt™ Share, and more.
      BIOS	256 Mb Flash ROM, UEFI AMI BIOS.
      Operating System	Windows 11 (22H2 & later).
      Form Factor	ATX Form Factor (12 inch x 9.6 inch).

      Weight	1 kg
      Brands	Asus
      Chipset	Z890
      color	Black
      Memory Series	DDR5
      Motherboard Series	Asus ROG
      Motherboard Size	E-ATX
      Platform	Intel
      Socket	LGA 1851
      Warranty	3 Years
      EAN / UPC Code	4711387847602

• Brand:ASUS
• Product Code:PROART-Z890-CREATOR-WIFI

  Features:

  The ProArt Z890-CREATOR WIFI empowers creators of all levels by maximizing the performance of the latest Intel® Core™ Ultra Processor (Series 2) processors with 16+1+2+2 team power stages, DDR5 slots, PCIe® 5.0 and lightning-fast connectivity including dual Thunderbolt™ 5 ports, 10G and 2.5G Ethernet, and WiFi 7.

  This motherboard manifests a professional, elegant and precise vision for content creators of all kinds, with a style elevated by tone-on-tone layers of black infused with metallic gold touches. A subtly designed I/O cover provides a sleek and sophisticated look while concealing the premium connectors within.

  Thunderbolt™ Connectivity
  Get immersed in your creations with two Thunderbolt™ 5 ports and one Thunderbolt™ 4 port for connecting to all your compatible content-creation gadgets, enjoying up to 120 Gbps bi-directional data transfers. To further push your creative work with one 8K or two 4K color-accurate monitors, you can connect your discrete graphics card to the onboard DisplayPort™ In port on the rear I/O panel and direct the video output via the Thunderbolt™ 5 port

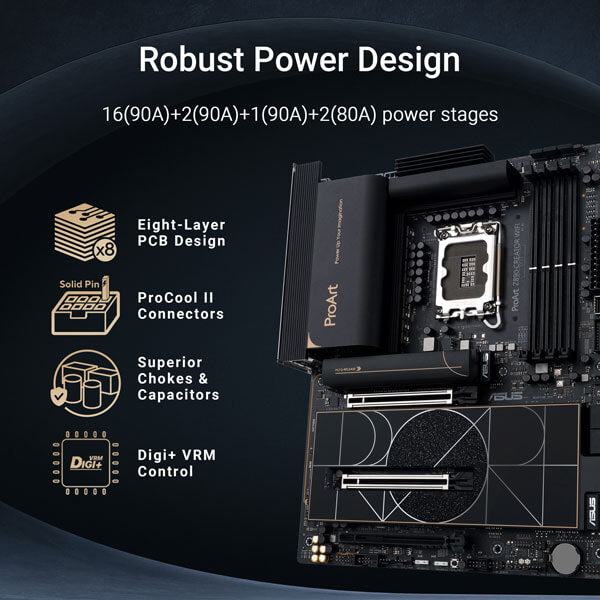

  Robust Power Design
  Designed to meet the needs of high-core-count CPUs, the ProArt Z890-CREATOR WIFI features 16(90A)+1(90A)+2(90A)+2(80A) power stages that integrate high-side and low-side MOSFETs and drivers into packages rated for up to 90 amps each. This configuration ensures optimal power delivery, efficiency, stability and performance for new Intel® Core™ Ultra Processors (Series 2).

  AI Overclocking
  Maximized CPU performance and predictions for ideal CPU and cooling settings push your system to its limits.

  AI Cooling II
  Balance the thermals and acoustics of any build with a single click

  NPU Boost
  The integrated Neural Processing Unit in Intel® Core™ Ultra Processors (Series 2) efficiently accelerates AI workflows — and NPU Boost lets you do more with it. This BIOS feature overclocks the NPU with just one click, increasing performance by up to 24%

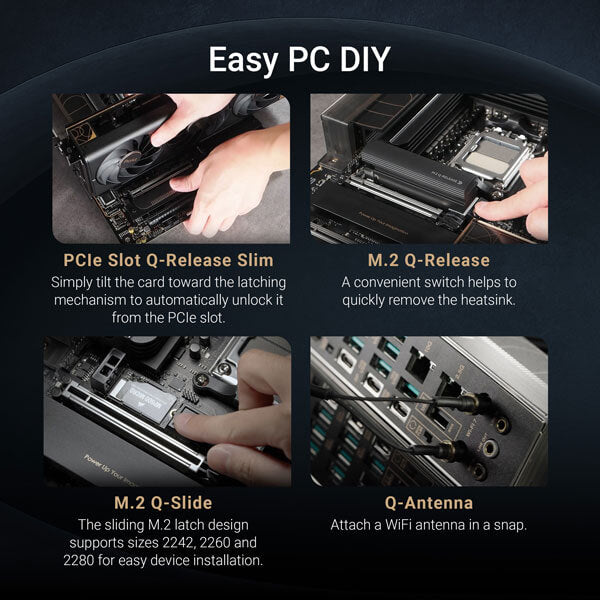

  PCIe® Slot Q-Release Slim
  With PCIe Slot Q-Release Slim, simply tilt the card toward the latching mechanism to automatically unlock it from the PCIe slot. This makes upgrades and maintenance easier than ever before. Users no longer need to fiddle with a tricky latch or even press a button to release their graphics card from the slot.

  Trusted Stability
  ProArt Z890-CREATOR WIFI is engineered and rigorously tested to offer superior quality, stability and compatibility to ensure that it empowers creativity for years to come.

  Motherboard
  Platform	INTEL
  Socket	LGA1851
  Cpu Type	Core Ultra
  Chipset	Z890
  Memory Speed	up to 9066+
  Max Memory Support	256 GB
  Supported Memory Type	DDR5
  Channel Supported	Dual Channel
  Memory Feature	Non-ECC, Un-buffered and Clocked Unbuffered DIMM (CUDIMM) Supports Intel Extreme Memory Profile (XMP) memory module ASUS Enhanced Memory Profile III (AEMP III) Support DIMM Fit Support DIMM Flex
  Graphics Port	1 x HDMI,2 x Intel® Thunderbolt 5 ports, 1x Intel Thunderbolt 4 ports
  Expansion Slots	Intel® Core™ Ultra Processors (Series 2) 2 x PCIe 5.0 x16 slots (supports x16 or x8/x8 modes) Intel® Z890 Chipset *1 x PCIe 4.0 x16 slot (supports x4 mode) * Please check the PCIe bifurcation table on the support Brand website - To ensure compatibility of the device installed, please refer to Brand website for the list of supported peripherals.
  Wireless Networking	WiFi 7,Bluetooth 5.4
  Back Panel I/O Ports	2 x Thunderbolt™ 5 USB Type-C® ports 1 x USB4 / Thunderbolt™ Type-C®port 6 x USB 10Gbps ports (6 x Type-A) 1 x USB 2.0 port (1 x Type-A) 1 x DisplayPort (Input only) 1 x HDMI™ port 1 x Wi-Fi module1 x Marvell® AQtion 10Gb Ethernet port 1 x Intel® 2.5Gb Ethernet port 2 x Gold-plated audio jacks 1 x BIOS FlashBack™ button
  Internal I/O Connector	Fan and Cooling Related 1 x 4-pin CPU Fan header 1 x 4-pin CPU OPT Fan header 1 x 4-pin AIO Pump header 5 x 4-pin Chassis Fan headers Power Related 1 x 24-pin Main Power connector 2 x 8-pin +12V CPU Power connector Storage Related 5 x M.2 slots (Key M) 4 x SATA 6Gb/s ports USB 1 x USB 20Gbps connector (supports USB Type-C® ) 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports 1 x USB 2.0 header supports 2 additional USB 2.0 ports Miscellaneous 3 x Addressable Gen2 headers 1 x Clear CMOS button 1 x COM Port header 1 x CPU Over voltage jumper 1 x Chassis Intrusion header 1 x Front Panel Audio header (F_AUDIO) 1 x SPI TPM header (14-1 pin) 1 x 10-1 pin Front System Panel header 1 x Thermal Sensor header
  Form Factor	ATX
  Warranty	3 Years
  Note	Features, Price, Specifications are subject to change without notice. Images used for representation purposes only

• Ready for Advanced AI PCs: Designed for the future of AI computing, with the power and connectivity needed for demanding AI applications
• Intel® LGA 1851 Socket: Ready for Intel® Core™ Ultra processors (Series 2)
• Exclusive AI Technologies: NPU Boost, ASUS AI Advisor, ASUS-exclusive AI Overclocking, AI Cooling II, AI Networking II
• Exclusive Memory Technologies: DIMM Fit, DIMM Flex and AEMP III to simplify setup and improve performance

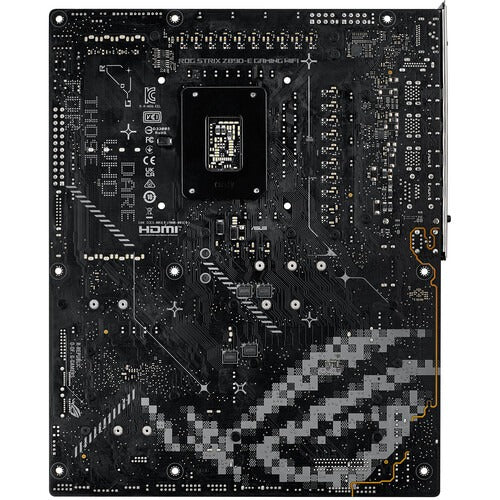

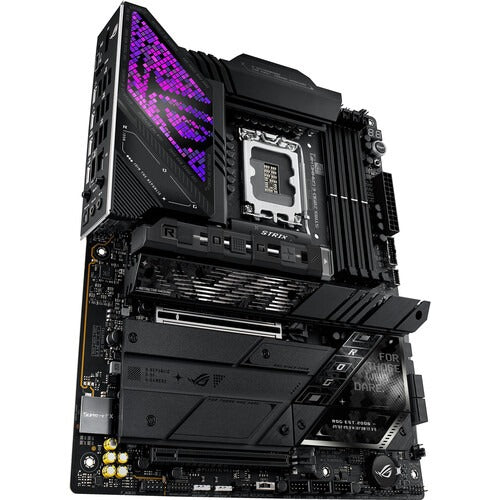

  ASUS ROG Strix Z890-E Gaming WiFi Intel® Z890 LGA 1851 ATX Motherboard, Advanced AI PC-Ready, 18+2+1+2 Stages, DDR5, WiFi 7, 7X M.2, Thunderbolt™ 4, USB Type-C®, AI Overclocking, Cooling & Networking

  Feature

  Intel^® Z890 LGA 1851 ATX motherboard, Advanced AI PC-ready, 18+1+2+2 power stages, DDR5 slots with NitroPath DRAM Technology, DIMM Fit, DIMM Flex, AEMP III, WiFi 7 with ASUS WiFi Q-Antenna, seven M.2 slots, three PCIe^® 5.0 NVMe^® SSD slots, PCIe 5.0 x16 SafeSlot with PCIe Slot Q-Release Slim, and full support for next-gen graphics card, two Thunderbolt™ 4 ports, USB 10Gbps Type-C^®rear I/O port with up to 30-watt Power Delivery fast charging, NPU Boost, ASUS AI Advisor, AI Overclocking, AI Cooling II, AI Networking II and Polymo Lighting

  • Ready for Advanced AI PCs: Designed for the future of AI computing, with the power and connectivity needed for demanding AI applications
  • Intel^® LGA 1851 Socket: Ready for Intel^® Core™ Ultra processors (Series 2)
  • Exclusive AI Technologies: NPU Boost, ASUS AI Advisor, ASUS-exclusive AI Overclocking, AI Cooling II, AI Networking II
  • Exclusive Memory Technologies: DIMM Fit, DIMM Flex and AEMP III to simplify setup and improve performance
  • Robust Power Solution: 18(110A)+1(90A)+2(90A)+2(80A) power stages with ProCool II power connectors, MicroFine alloy chokes and premium metallic capacitors
  • Optimized Thermal Design: Massive heatsinks with integrated I/O cover, high-conductivity thermal pads, and connected with an C-shaped heatpipe
  • Latest M.2 Support: Three PCIe^® 5.0 M.2 slots and four PCIe 4.0 M.2 slots, all with substantial cooling solutions
  • Abundant Connectivity: Dual Thunderbolt™ 4 USB Type-C^® ports, USB 10Gbps Type-C rear I/O port with up to 30-watt Power Delivery fast charging plus USB Wattage Watcher, ten USB 10Gbps ports, PCIe 5.0 x16 SafeSlot with full support for next-gen graphics card, HDMI™ 2.1 and DisplayPort™ 1.4
  • High-Performance Networking: On-board Intel Wi-Fi 7 (802.11be) with ASUS WiFi Q-Antenna, Realtek 5 Gb Ethernet
  • DIY-Friendly Design: PCIe Slot Q-Release Slim, new M.2 Q-Latch, M.2 Q-Release, M.2 Q-Slide, Q-Antenna, BIOS Q-Dashboard, Q-Code, Q-LED, FlexKey button, Start button, BIOS FlashBack™ button, Clear CMOS button and pre-mounted I/O shield
  • Immersive Audio: ROG SupremeFX ALC4080 codec with Savitech SV3H712 amplifier, along with Dolby Atmos^®
  • Unmatched Personalization: I/O cover with Polymo Lighting, three Gen 2 ARGB headers, all configurable with ASUS-exclusive Aura Sync RGB lighting
  • Renowned Software: ASUS DriverHub, Dolby Atmos^®, TurboV Core, GlideX, HWiNFO, bundled 60-days AIDA64 Extreme subscription

  With an advanced power design and AI features, the ROG Strix Z890-E Gaming Wi-Fi delivers top-tier performance. Equipped with Thunderbolt™ 4, Wi-Fi 7, high-speed DDR5 slots, and seven M.2 slots, it provides exceptional connectivity and speed, making it ideal for elite gaming and advanced AI PC applications.




  ASUS AI INTELLIGENCE

  ASUS AI ADVISOR

  Using AI technology to understand natural-language questions or scenario descriptions, ASUS AI Advisor allows users to explore the functionality and advanced features of ASUS motherboards in a simple and straightforward way.

  * Availability of ASUS AI Advisor may vary by region.

  AI OVERCLOCKING

  ASUS AI Overclocking profiles the CPU and cooling to predict the optimal configuration and push the system to its limits.



  AI COOLING II

  Balance the thermals and acoustics of any build with a single click.



  AI OVERCLOCKING

  ASUS AI Overclocking profiles the CPU and cooling to predict the optimal configuration and push the system to its limits. Predicted values can be engaged automatically or used as a launching ground for further experimentation.




  AI COOLING II

  Balance the thermals and acoustics of any build with a single click. A proprietary ASUS algorithm slashes unnecessary noise while running a quick stress test, and then monitors CPU temperatures to dynamically adjust fans to optimal speeds.




  AI NETWORKING II

  AI Networking II combines intelligent technologies to continuously optimize network performance, provide trustworthy and seamless connectivity, and unleash the full speed of Wi-Fi 7*.

  NPU BOOST

  The integrated NPU in Intel® Core™ Ultra Processors (Series 2) efficiently accelerates AI workflows — and NPU Boost lets you do more with it. This BIOS feature overclocks the NPU with just one click, increasing performance by up to 24%.

  DDR5 STRENGTH

  ROG has a rich history of delivering top-tier memory performance, and DDR5 is no exception. Enhanced signal routing can push enthusiast-grade kits well beyond the 8 GT/s threshold on the Strix Z890-E, with even greater speeds on the horizon. For experienced users, the UEFI offers a wide range of options to fine-tune and push performance to its limits.

  NITROPATH DRAM TECHNOLOGY

  NitroPath DRAM Technology provides enhanced DDR5 memory performance. Shorter gold finger pins and optimized signal pathways ensure faster data transfers between your DRAM and CPU, allowing for greater memory overclocking headroom and stability. These reinformed DRAM slots are also better prepared to withstand the wear and tear of the RAM installation process than traditional slot designs, perfect for enthusiasts who keep their system upgraded with the fastest kits available.

  DIMM FIT

  DIMM Fit is an ASUS-exclusive BIOS feature that precisely analyzes individual memory modules to optimize performance and pinpoint potential issues. This offers peak efficiency, compatibility, and system stability.

  Whether you are an overclocker seeking ultimate performance, a competitor pursuing the most responsive gameplay, or a content creator prioritizing rock-solid stability, DIMM Fit provides optimizations tailored to your needs and your hardware configuration.

  AEMP III

  ASUS Enhanced Memory Profile III (AEMP III) is an advanced firmware feature that empowers users to achieve unparalleled memory performance with cutting-edge CUDIMM memory. Through a two-phase comprehensive tuning process, AEMP III first optimizes the clock driver and then the memory frequency. This results in the best balance between performance and stability, even at cutting-edge speeds of DDR5-8000 or higher.*

  *Results may vary according to individual system specifications. Currently, only 2-DIMM configurations are supported. Results are based on a test with an Intel Core Ultra 9 285K processor and 2x16GB SK Hynix DDR5-6400 Clocked Unbuffered DIMM RAM, model HMCG78AHBCA326N.




  DIMM FLEX

  DIMM Flex provides enthusiasts with a powerful new way to overclock their DDR5 memory modules. It employs specialized circuitry that can boost performance or address potential stability issues, depending on temperature readings. When temperatures are nominal, it can use the extra headroom to increase speeds and efficiency. And when temperatures increase, it can adjust memory behavior downward to maintain stability.

  1. M.2 COMBO-SINK

  This M.2 heatsink integrates a direct-contact U-shaped heat pipe to achieve optimal operating temperatures, and it has been upgraded with a larger surface area for even more cooling.

  2. M.2 BACKPLATE

  An integrated backplate helps ensure that high-performance drives can deliver peak performance, even when airflow is restricted.

  3. M.2 HEATSINKS

  Heatsinks cover every slot to help keep onboard NVME SSDs at optimal temperatures for consistent performance and reliability.




  VRM HEATSINK ARRAY

  Two thick heatsinks covering the power delivery section provide strategic airflow channels for increased heat dissipation while empowering high-performance Intel® Core™ Ultra Processors (Series 2)

  LEADING CONNECTIVITY




  M.2 SLOTS WITH ROG M.2 POWERBOOST

  SEVEN ONBOARD M.2 SLOTS

  The ROG Strix Z890-E features seven onboard M.2 slots, three of which are PCIe 5.0-ready to offer blistering 16 GB/s speeds, while the others offer still-impressive 8 GB/s over PCIe 4.0 interfaces.

  ROG M.2 POWERBOOST

  ROG M.2 PowerBoost is an exclusive ASUS motherboard feature that provides amperage exceeding industry standards, supporting up to seven M.2 devices to operate simultaneously at optimal performance. This advanced power setup helps ensure stability and data integrity even under high loads, while also helping to ensure the rated lifespan of an M.2 SSD.

  WI-FI 7

  The revolutionary Wi-Fi 7 is up to 4.8X times faster than standard Wi-Fi 6*, thanks to tech like 320 MHz channels** on the 6GHz band and 4K QAM*. Multi-Link Operation (MLO) provides a more stable Wi-Fi connection and lower latency, unlocking the realms of the unknown in gaming, streaming and industrial IoT.

  Model	ROG STRIX Z890-E GAMING WIFI
  CPU	Intel® Socket LGA1851 for Intel® Core™ Ultra Processors(Series 2)
  	Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0**
  	* Refer to https://www.asus.com/support/download-center/ for CPU support list.
  	** Intel® Turbo Boost Max Technology 3.0 support depends on the CPU types.
  Chipset	Intel® Z890 Chipset
  Memory	4 x DIMM slots, max. 192GB, DDR5
  	Support up to 8800+MT/s (OC), Non-ECC, Clocked Unbuffered DIMM (CUDIMM)*
  	Dual Channel Memory Architecture
  	Supports Intel® Extreme Memory Profile (XMP) memory module
  	Supports DIMM Flex
  	NitroPath DRAM Technology
  	DIMM Fit
  	ASUS Enhanced Memory Profile III (AEMP III)
  	* Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information please refer to CPU/Memory Support list under the Support tab of product information site or visit https://www.asus.com/support/download-center/.
  	* Non-ECC, Un-buffered DDR5 Memory supports On-Die ECC function

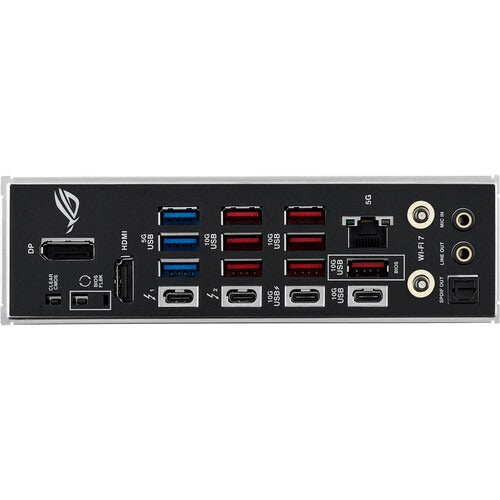

  Graphics	1 x DisplayPort**
  	1 x HDMI® port***
  	2 x Intel® Thunderbolt™ 4 support DisplayPort and Thunderbolt™ video outputs****
  	* Graphics specifications may vary between CPU types. Please refer to www.intel.com for any updates.
  	** Supports max. 8K@60Hz as specified in DisplayPort 1.4.
  	*** Supports max. 8K@60Hz as specified in HDMI 2.1.
  	**** In ThunderboltTM   4 mode, supports up to 8K@60Hz x1 with DSC or 4K@60Hz x 2, maximum total bandwidth up to 23.8Gbps or 16Gbps/16Gbps, for resolution support please check DisplayPort 2.1 specs.
  	***** In DP alt mode, Only one USB Type-C® port supports up to UHBR20 at a time.
  	****** VGA resolution support depends on processors’ or graphic cards’ resolution.
  	*******While installing the operating system, please ensure that your monitor is connected to the HDMI port on the back I/O panel or to a discrete graphics card.
  Expansion Slots	Intel® Core™ Ultra Processors(Series 2)*
  	1 x PCIe 5.0 x16 slot (supports x16 or x8/x4/x4 modes)
  	Intel® Z890 Chipset
  	1 x PCIe 4.0 x16 slot (supports x4 mode)
  	* Please check PCIe bifurcation table in support site (https://www.asus.com/support/FAQ/1037507/).
  	To ensure compatibility of the device installed, please refer to https://www.asus.com/support/ for the list of supported peripherals.
  Storage	Total supports 7 x M.2 slots and 4 x SATA 6Gb/s ports*
  	Intel® Core™ Ultra Processors(Series 2)*
  	M.2_1 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 5.0 x4 mode)
  	M.2_2 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)
  	M.2_3 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode)**
  	M.2_4 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode)**
  	Intel® Z890 Chipset
  	M.2_5 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)
  	M.2_6 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)
  	M.2_7 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 & SATA modes)
  	4 x SATA 6Gb/s ports
  	* Intel® Rapid Storage Technology supports PCIe RAID 0/1/5/10, SATA RAID 0/1/5/10, M.2 slot from CPU only supports RAID 0/1/5.
  	** M.2_3 & M.2_4 slots share bandwidth with PCIEX16(G5). When M.2_3 & M.2_4 are occupied with SSD devices, PCIEX16(G5) will run x8 only.
  Ethernet	1 x Realtek 5Gb Ethernet
  	ASUS LANGuard
  Wireless & Bluetooth	Wi-Fi 7*
  	2×2 Wi-Fi 7 (802.11be)
  	Supports 2.4/5/6GHz frequency band**
  	Support Wi-Fi 7 320MHz bandwidth, up to 5.8Gbps transfer rate.
  	Bluetooth® v5.4***
  	*Wi-Fi features may vary depending on the operating system
  	For Windows 11, Wi-Fi 7 will require 24H2 or later version for full functions, Windows 11 21H2/22H2/23H2 only supports Wi-Fi 6E.
  	For Windows 10, only Wi-Fi 6 is supported.
  	** Wi-Fi 6GHz frequency band and bandwidth regulatory may vary between countries.
  	*** The Bluetooth® version may vary, please refer to the Wi-Fi module manufacturer’s website for the latest specifications.
  USB	Rear USB (Total 14 ports)
  	2 x Thunderbolt™ 4 (2 x USB Type-C®)
  	9 x USB 10Gbps ports (7 x Type-A + 1 x USB Type-C®* + 1 x USB Type-C® with up to 30W PD Fast-charge)**
  	3 x USB 5Gbps ports (3 x Type-A)
  	Front USB (Total 11 ports)
  	1 x USB 20Gbps connector (supports USB Type-C®)
  	2 x USB 5Gbps headers support additional 4 USB 5Gbps ports
  	3 x USB 2.0 headers support additional 6 USB 2.0 ports
  	* USB Type-C® power delivery output: 5V/3A
  	** USB Type-C® power delivery output: 5V/9V max. 3A, 12V max 2.5A, 15V max. 2A.
  Audio	ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4080*
  	Impedance sense for front and rear headphone outputs
  	Supports: Jack-detection, Multi-streaming, Front Panel MIC Jack-retasking
  	High quality 120 dB SNR stereo playback output and 110 dB SNR recording input
  	Supports up to 32-Bit/384 kHz playback
  	Audio Features
  	Audio Shielding
  	Savitech SV3H712 AMP
  	Gold-plated audio jacks
  	Rear optical S/PDIF out port
  	Premium audio capacitors
  	Audio cover
  	* The LINE OUT port on the rear panel does not support spatial audio. If you wish to use spatial audio, make sure to connect your audio output device to the audio jack on the front panel of your chassis or use a USB interface audio device.
  Back Panel I/O Ports	2 x Thunderbolt™ 4 (2 x USB Type-C®)
  	9 x USB 10Gbps ports (7 x Type-A + 1 x USB Type-C® + 1 x USB Type-C® with up to 30W PD Fast-charge)
  	3 x USB 5Gbps ports (3 x Type-A)
  	1 x DisplayPort
  	1 x HDMI® port
  	1 x Wi-Fi Module
  	1 x Realtek 5Gb Ethernet
  	2 x Gold-plated audio jacks
  	1 x Optical S/PDIF out port
  	1 x BIOS FlashBack™  button
  	1 x Clear CMOS button
  Internal I/O Connectors	Fan and Cooling related
  	1 x 4-pin CPU Fan header
  	1 x 4-pin CPU OPT Fan header
  	1 x 4-pin AIO Pump header
  	5 x 4-pin Chassis Fan headers
  	Power related
  	1 x 24-pin Main Power connector
  	2 x 8-pin +12V CPU Power connectors
  	Storage related
  	7 x M.2 slots (Key M)
  	4 x SATA 6Gb/s ports
  	USB
  	1 x USB 20Gbps connector (supports USB Type-C®)
  	2 x USB 5Gbps headers support additional 4 USB 5Gbps ports
  	3 x USB 2.0 headers support additional 6 USB 2.0 ports
  	Miscellaneous
  	3 x Addressable Gen2 headers
  	1 x Chassis Intrusion header
  	1 x CPU Over Voltage jumper
  	1 x FlexKey button
  	1 x Front Panel Audio header (F_AUDIO)
  	1 x Start button
  	1 x 10-1 pin System Panel header
  	1 x Thermal Sensor header
  	1 x Thunderbolt™ (USB4®) header
  Special Features	Extreme Engine Digi+
  	5K Black Metallic Capacitors
  	ASUS Q-Design
  	M.2 Q-Latch
  	M.2 Q-Release
  	M.2 Q-Slide
  	PCIe Slot Q-Release Slim (with PCIe SafeSlot)
  	Q-Antenna
  	Q-Code
  	Q-Dashboard
  	Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green])
  	Q-Slot
  	ASUS Thermal Solution
  	M.2 heatsinks
  	M.2 heatsink backplate
  	VRM heatsink design
  	ASUS EZ DIY
  	BIOS FlashBack™ button
  	BIOS FlashBack™ LED
  	Clear CMOS button
  	ProCool II
  	Pre-mounted I/O shield
  	SafeSlot
  	SafeDIMM
  	Aura Sync
  	Addressable Gen2 headers
  Software Features	ROG Exclusive Software
  	ROG CPU-Z
  	Dolby Atmos
  	ASUS Exclusive Software
  	Armoury Crate
  	AIDA64 Extreme (60 days free trial)
  	Aura Creator
  	Aura Sync
  	Fan Xpert 4 (with AI Cooling II)
  	GameFirst
  	HWiNFO
  	Power Saving
  	ASUS Driver Hub
  	ASUS GlideX
  	TurboV Core
  	USB Wattage Watcher
  	Adobe Creative Cloud (Free Trial)
  	Norton 360 for Gamers (60 Days Free Trial)
  	WinRAR (40 Days Free Trial)
  	UEFI BIOS
  	AI Overclocking Guide
  	ASUS EZ DIY
  	ASUS CrashFree BIOS 3
  	ASUS EZ Flash
  	ASUS UEFI BIOS EZ Mode
  	ASUS MyHotkey
  	NPU Boost
  	FlexKey
  BIOS	256 Mb  Flash ROM, UEFI AMI BIOS
  Manageability	WOL by PME, PXE
  Accessories	Cables
  	2 x SATA 6Gb/s cables
  	Additional Cooling Kit
  	1 x Thermal pad for M.2 22110
  	Miscellaneous
  	1 x ASUS Wi-Fi Q-Antenna
  	1 x Cable ties pack
  	1 x M.2 Q-Latch package
  	2 x M.2 Q-Slides
  	1 x ROG key chain
  	1 x ROG Strix stickers
  	7 x M.2 Rubbers
  	Documentation
  	1 x Quick start guide
  Operating System	Windows® 11 (22H2 & later)
  Form Factor	ATX Form Factor
  	12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )

  Weight	1 kg
  Product Type	Gaming
  color	Black
  Brands	Asus
  Chipset	Z890
  Socket	LGA 1851
  Memory Series	DDR5
  Warranty	3 Years
  EAN / UPC Code	0821480547448

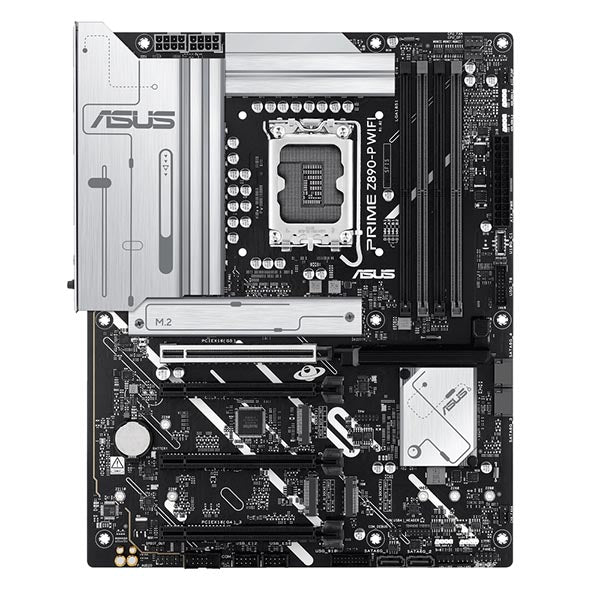

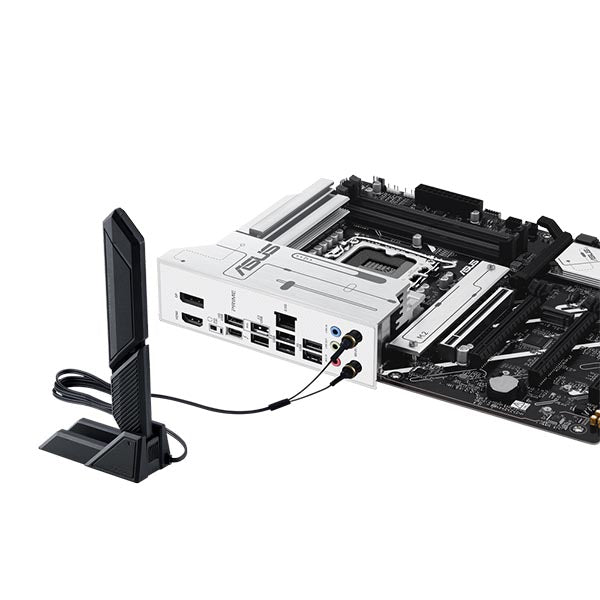

• Brand:ASUS

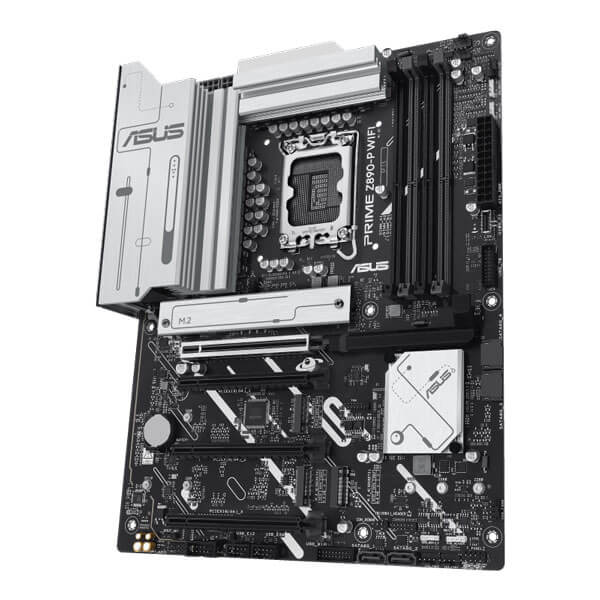

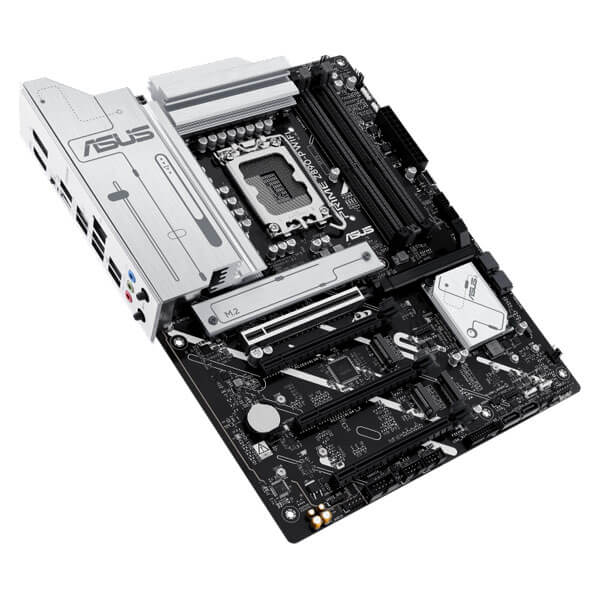

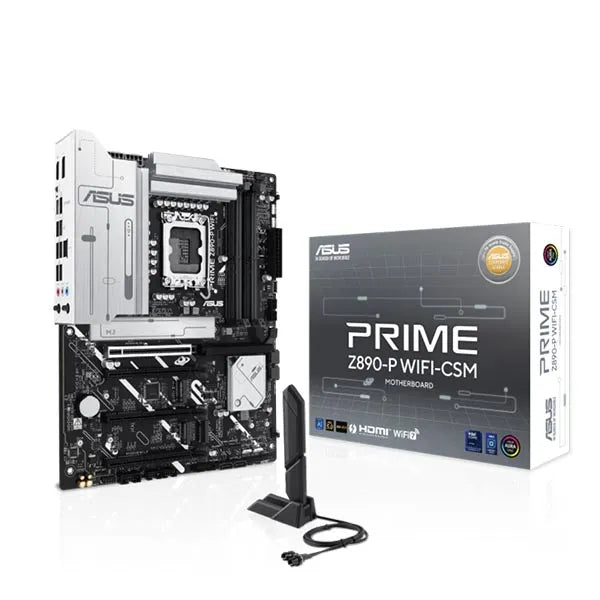

• Product Code:PRIME-Z890-P-WIFI-CSM

  Features:

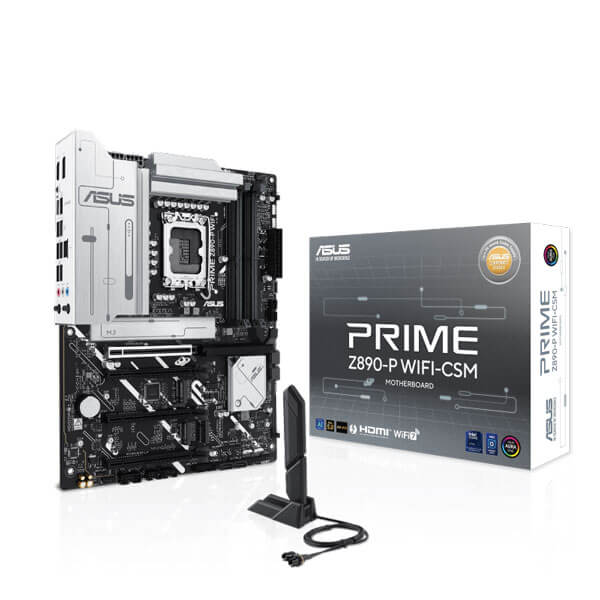

  PRIME Z890-P WIFI-CSM

  ASUS PRIME series motherboards are expertly engineered to unleash the full potential of the latest Intel® Core Ultra Processors (Series 2). Boasting a robust power design, comprehensive cooling solutions and intelligent tuning options, the PRIME Z890-P WIFI-CSM motherboard provides users and PC DIY builders with a range of performance optimizations via intuitive software and firmware features. It’s designed to be Advanced AI PC-ready, offering the power and connectivity needed for demanding AI applications.

  AI Solutions
  for advanced AI capabilities

  AEMP III
  for enhanced DDR5 performance

  WiFi 7
  for stable WiFi connection and lower latency

  PCIe 5.0 slots
  for graphics card and storage

  Cooler by design
  The PRIME Z890-P WIFI-CSM motherboard is engineered with multiple onboard heatsinks and an array of hybrid fan headers to help ensure your rig stays cool and stable under intense workloads.

  Empowering connections
  The PRIME Z890-P WIFI-CSM motherboard offers a versatile range of connectivity, including support for WiFi 7, the latest version of PCI Express, while an arsenal of USB ports includes Type-C connections, and Thunderbolt™ 4 which expands compatibility and bandwidth even further.

  Motherboard
  Platform	INTEL
  Socket	LGA1851
  Cpu Type	Core Ultra
  Chipset	Z890
  Memory Speed	up to 8666+
  Max Memory Support	256 GB
  Supported Memory Type	DDR5
  Channel Supported	Dual Channel
  Memory Feature	Supports Intel® Extreme Memory Profile (XMP) memory module ASUS Enhanced Memory Profile III(AEMPIII) * Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information please refer to CPU/Memory Support list under the Support tab of product information site or visit Asus Website. Adjustments will be made based on the specifications of mass-produced memory products available on the market. ** Non-ECC, un-buffered DDR5 memory supports On-Die ECC function.
  Graphics Port	1 x DisplayPort,1 x HDMI,1 x Intel Thunderbolt 4 port
  Expansion Slots	Intel® Core Ultra Processors (Series 2) 1 x PCIe 5.0 x16 slot Intel® Z890 Chipset 2 x PCIe 4.0 x16 slots (support x4 mode) 1 x PCIe 4.0 x16 slot (supports x1 mode)
  Wireless Networking	WiFi 7,Bluetooth 5.4
  Back Panel I/O Ports	1 x Thunderbolt™ 4 USB Type-C port 1 x USB 10Gbps port (1 x Type-A) 2 x USB 5Gbps ports (2 x Type-A) 4 x USB 2.0 ports (4 x Type-A) 1 x DisplayPort 1 x HDMITM port 1 x Wi-Fi module 1 x Realtek 2.5Gb Ethernet port 3 x Audio jacks 1 x BIOS FlashBack button
  Internal I/O Connector	Fan and Cooling related 1 x 4-pin CPU Fan header 1 x 4-pin CPU OPT Fan header 1 x 4-pin AIO Pump header 4 x 4-pin Chassis Fan headers Power related 1 x 24-pin Main Power connector 2 x 8-pin +12V CPU Power connector Storage related 4 x M.2 slots (Key M) 4 x SATA 6Gb/s ports USB 1 x USB 10Gbps connector (supports USB Type-C®) 2 x USB 5Gbps headers support 4 additional USB 5Gbps ports 2 x USB 2.0 headers support 4 additional USB 2.0 ports Miscellaneous 3 x Addressable Gen2 headers 1 x Aura RGB header 1 x Clear CMOS header 1 x COM Port header 1 x Front Panel Audio header (F_AUDIO) 1 x S/PDIF Out header 1 x SPI TPM header (14-1pin) 1 x 10-1 pin Front Panel System header 1 x Thunderbolt™ (USB4®) header
  Form Factor	ATX
  Warranty	3 Years
  Note	Features, Price, Specifications are subject to change without notice. Images used for representation purposes only

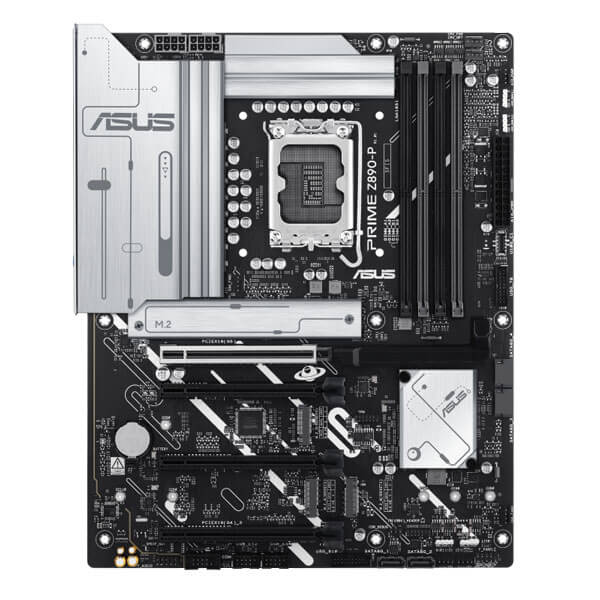

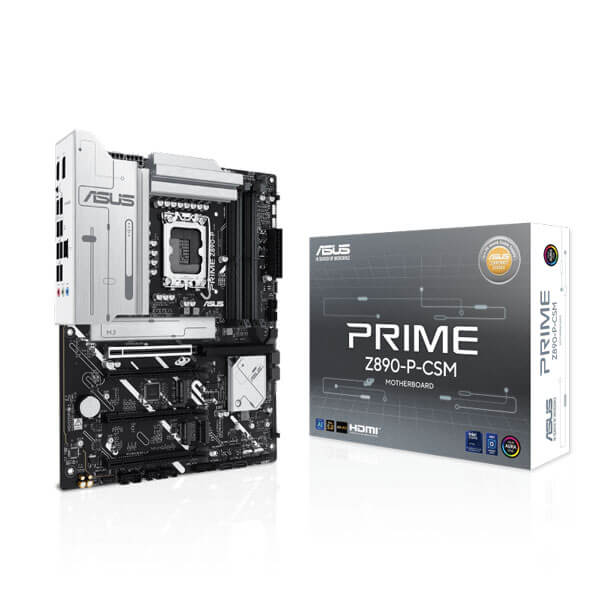

• Brand:ASUS

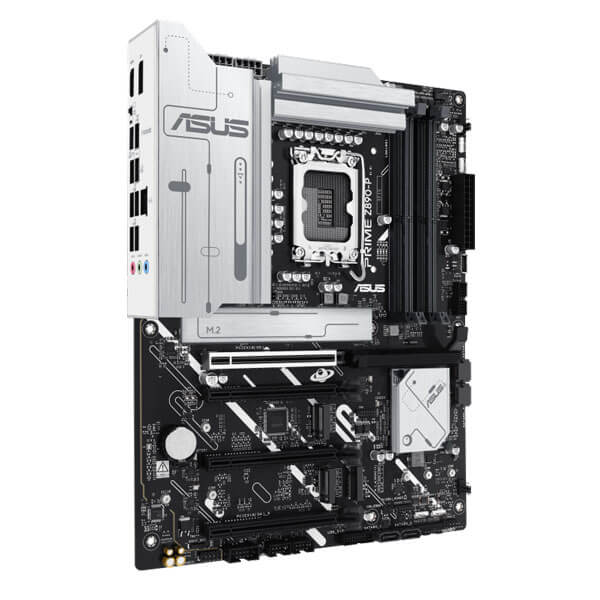

• Product Code:PRIME-Z890-P-CSM

  Features:

  ASUS PRIME series motherboards are expertly engineered to unleash the full potential of the latest Intel® Core™ Ultra Processors (Series 2). Boasting a robust power design, comprehensive cooling solutions and intelligent tuning options, the PRIME Z890-P-CSM motherboard provides users and PC DIY builders with a range of performance optimizations via intuitive software and firmware features. It’s designed to be Advanced AI PC-ready, offering the power and connectivity needed for demanding AI applications.

  Cooler by design
  The PRIME Z890-P-CSM motherboard is engineered with multiple onboard heatsinks and an array of hybrid fan headers to help ensure your rig stays cool and stable under intense workloads.

  SafeSlot

  PCIe 5.0 is twice as fast as PCIe 4.0. ASUS has adapted our SMT manufacturing for the faster SafeSlot, a reinforced metal sheath that ensures secure card installation and faster data speeds.

  Pre-mounted I/O shield

  Our pre-installed I/O shield safeguards ports, simplifies the build process, increases functionality and enhances aesthetics for PC DIY enthusiasts.

  PCIe 5.0 slot
  The latest processors introduce PCIe 5.0 support, doubling data transfer speeds compared to PCIe 4.0, enhancing signal integrity, and providing backward-compatible CEM connectors and support for previous PCIe versions.

  Empowering connections
  The PRIME Z890-P-CSM motherboard offers a versatile range of connectivity, including the latest version of PCI Express, while an arsenal of USB ports includes Type-C® connections expands compatibility and bandwidth even further.

  Motherboard
  Platform	INTEL
  Socket	LGA1851
  Cpu Type	Core Ultra
  Chipset	Z890
  Memory Speed	up to 8666+
  Max Memory Support	256 GB
  Supported Memory Type	DDR5
  Channel Supported	Dual Channel
  Memory Feature	Non-ECC, Un-buffered ,Clocked Unbuffered DIMM (CUDIMM) DIMM Fit Supports Intel® Extreme Memory Profile (XMP) memory module ASUS Enhanced Memory Profile III(AEMPIII) * Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information please refer to CPU/Memory Support list under the Support tab of product information site or visit Brand website. Adjustments will be made based on the specifications of mass-produced memory products available on the market. ** Non-ECC, un-buffered DDR5 memory supports On-Die ECC function.
  Graphics Port	1 x DisplayPort,1 x HDMI,1 x USB 20Gbps port
  Expansion Slots	Intel® Core™ Ultra Processors (Series 2) 1 x PCIe 5.0 x16 slot Intel® Z890 Chipset 2 x PCIe 4.0 x16 slots (support x4 mode) 1 x PCIe 4.0 x16 slot (supports x1 mode)
  Back Panel I/O Ports	1 x USB 20Gbps port (1 x USB Type-C® with DP Alt mode) 1 x USB 10Gbps port (1 x Type-A) 2 x USB 5Gbps ports (2 x Type-A) 4 x USB 2.0 ports (4 x Type-A) 1 x DisplayPort 1 x HDMITM port 1 x Realtek 2.5Gb Ethernet port 3 x Audio jacks 1 x BIOS FlashBack™ button
  Internal I/O Connector	Fan and Cooling related 1 x 4-pin CPU Fan header 1 x 4-pin CPU OPT Fan header 1 x 4-pin AIO Pump header 4 x 4-pin Chassis Fan headers Power related 1 x 24-pin Main Power connector 2 x 8-pin +12V CPU Power connector Storage related 4 x M.2 slots (Key M) 4 x SATA 6Gb/s ports USB 1 x USB 10Gbps connector (supports USB Type-C®) 2 x USB 5Gbps headers support 4 additional USB 5Gbps ports 2 x USB 2.0 headers support 4 additional USB 2.0 ports Miscellaneous 3 x Addressable Gen2 headers 1 x Aura RGB header 1 x Clear CMOS header 1 x COM Port header 1 x Front Panel Audio header (F_AUDIO) 1 x S/PDIF Out header 1 x SPI TPM header (14-1pin) 1 x 10-1 pin Front System Panel header 1 x Thunderbolt™ (USB4®) header
  Form Factor	ATX
  Warranty	3 Years
  Note	Features, Price, Specifications are subject to change without notice. Images used for representation purposes only

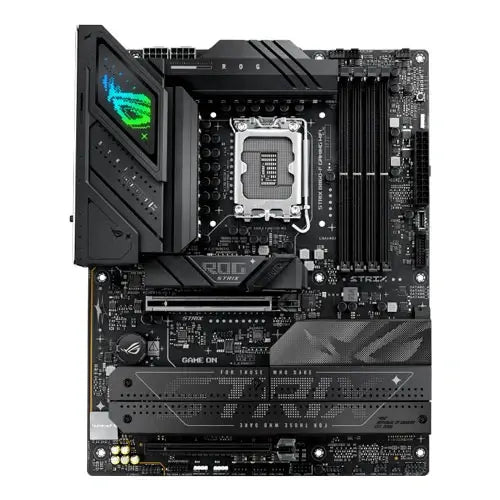

• Brand:ASUS

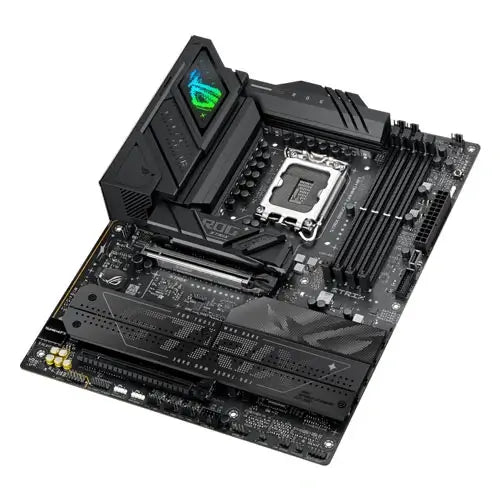

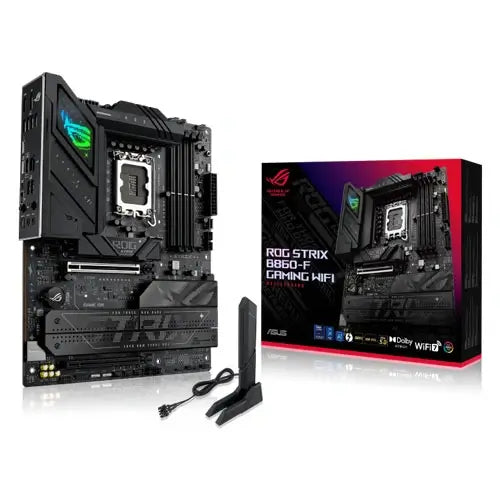

• Product Code:ROG-STRIX-B860-F-GAMING-WIFI

  Features:

  With NPU boosting and cutting-edge AI solutions, the ROG STRIX B860-F Gaming WiFi supports advanced AI PC applications. Featuring Thunderbolt™ 4, PCIe® 5.0, and Aura Sync lighting, it offers ultra-fast data transfer speeds, exceptional connectivity, and a versatile aesthetic that suits both bold and subtle styles.

  ASUS AI ADVISOR

  Using AI technology to understand natural-language questions or scenario descriptions, ASUS AI Advisor allows users to explore the functionality and advanced features of ASUS motherboards in a simple and straightforward way.

  AI NETWORKING II

  AI Networking II combines intelligent technologies to continuously optimize network performance, provide trustworthy and seamless connectivity, and unleash the full speed of WiFi 7

  NPU BOOST

  The integrated NPU in Intel® Core™ Ultra Processors (Series 2) efficiently accelerates AI workflows — and NPU Boost lets you do more with it. This BIOS feature overclocks the NPU with just one click, increasing performance by up to 24%.

  Asynchronous Clock

  For next-level frequency flexibility, the ROG Strix B860-F features a built-in clock generator that isolates CPU base clock from memory, NPU, D2D and NGU. Drive memory, NPU and others performance to their absolute brink while maintaining the stability of CPU clock domains.
  Separate CPU BCLK from other domains for unfettered overclocking

  DDR5 DOMINATION

  Enhanced signal routing can push enthusiast-grade kits well beyond the 9 GT/s threshold on the Strix B860-F.

  AEMP III

  ASUS Enhanced Memory Profile III (AEMP III) is an advanced firmware feature that empowers users to achieve unparalleled memory performance with cutting-edge CUDIMM memory.

  DIMM FIT

  DIMM Fit is an ASUS-exclusive BIOS feature that precisely analyzes individual memory modules to optimize performance and pinpoint potential issues.

  pcie 5.0

  Fully embracing the new standard, the Strix B860-F offers end-to-end PCIe 5.0 support.

  Motherboard
  Platform	INTEL
  Socket	LGA1851
  Cpu Type	Core Ultra
  Chipset	B860
  Memory Speed	up to 9066
  Max Memory Support	256 GB
  Supported Memory Type	DDR5
  Channel Supported	Dual Channel
  Memory Feature	Supports Intel® Extreme Memory Profile (XMP) memory module DIMM Fit ASUS Enhanced Memory Profile III (AEMP III) *Adjustments will be made based on the specifications of mass-produced memory products available on the market. * Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information please refer to CPU/Memory Support list under the Support tab of product information Brand Site. * Non-ECC, un-buffered DDR5 memory supports On-Die ECC function.
  Graphics Port	1 x DisplayPort,1 x HDMI,1 x Thunderbolt 4
  Expansion Slots	Intel® Core™ Ultra Processors(Series 2) 1 x PCIe 5.0 x16 slot (supports x16 mode) Intel® B860 Chipset 1 x PCIe 4.0 x16 slot (supports x4 mode) - To ensure compatibility of the device installed, please refer to Brand Site.
  Wireless Networking	WiFi 7,Bluetooth 5.4

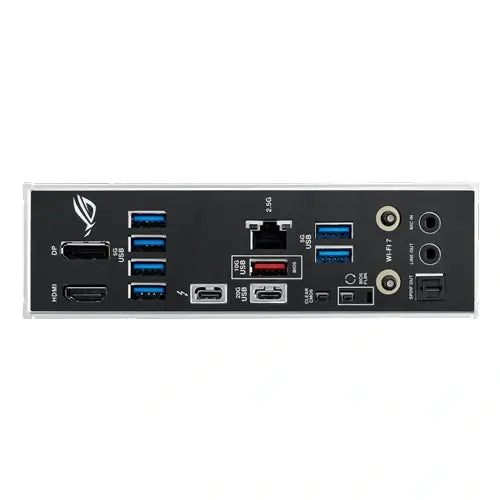

  Back Panel I/O Ports	1 x Thunderbolt™ 4 (1 x USB Type-C®) 1 x USB 20Gbps port (1 x USB Type-C®) 1 x USB 10Gbps port (1 x Type-A) 6 x USB 5Gbps ports (6 x Type-A) 1 x DisplayPort 1 x HDMI™ port 1 x Wi-Fi module 1 x Intel® 2.5Gb Ethernet port 2 x audio jacks 1 x Optical S/PDIF out port 1 x BIOS FlashBack™ button 1 x Clear CMOS button
  Internal I/O Connector	1 x 4-pin CPU Fan header 1 x 4-pin CPU OPT Fan header 1 x 4-pin AIO Pump header 4 x 4-pin Chassis Fan headers 1 x 24-pin Main Power connector 2 x 8-pin +12V CPU Power connectors 4 x M.2 slots (Key M) 4 x SATA 6Gb/s ports 1 x USB 10Gbps connector (supports USB Type-C®) 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports 2 x USB 2.0 headers support 3 additional USB 2.0 ports 3 x Addressable Gen2 headers 1 x Chassis Intrusion header 1 x Front Panel Audio header (F_AUDIO) 1 x Start button 1 x 10-1 pin Front System Panel header 1 x Thermal Sensor header 1 x Thunderbolt™ (USB4®) header
  Form Factor	ATX
  Warranty	3 Years
  Note	Features, Price and Specifications are subject to change without notice. Images use for Representation Purpose Only.

• Brand:ASUS

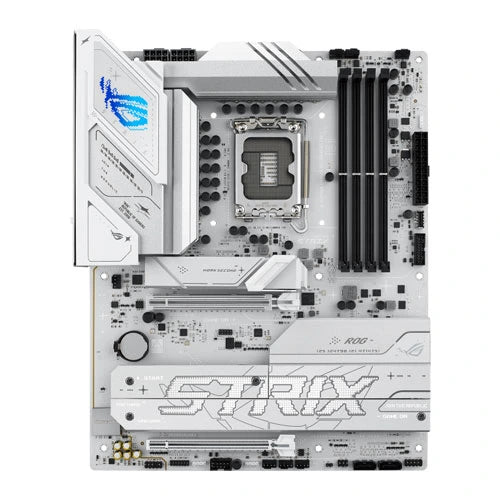

• Product Code:ROG-STRIX-B860-A-GAMING-WIFI

  Features:

  With NPU support and AI-enhanced solutions, the ROG STRIX B860-A Gaming WiFi is ready for advanced AI PC applications. Featuring a USB4® (20Gbps) port, PCIe® 5.0, and Aura Sync RGB lighting, it offers fast data transfers, versatile connectivity, and a customizable aesthetic to match your style.

  ASUS AI ADVISOR

  Using AI technology to understand natural-language questions or scenario descriptions, ASUS AI Advisor allows users to explore the functionality and advanced features of ASUS motherboards in a simple and straightforward way.

  AI NETWORKING II

  AI Networking II combines intelligent technologies to continuously optimize network performance, provide trustworthy and seamless connectivity, and unleash the full speed of WiFi 7

  Asynchronous Clock

  For next-level frequency flexibility, the ROG Strix B860-A features a built-in clock generator that isolates CPU base clock from memory, NPU, D2D and NGU. Drive memory, NPU and others performance to their absolute brink while maintaining the stability of CPU clock domains.
  Separate CPU BCLK from other domains for unfettered overclocking.

  DDR5 DOMINATION

  Enhanced signal routing can push enthusiast-grade kits well beyond the 9 GT/s threshold on the Strix B860-A.

  PCIe 5.0

  Fully embracing the new standard, the Strix B860-A offers end-to-end PCIe 5.0 support.

  Motherboard
  Platform	INTEL
  Socket	LGA1851
  Cpu Type	Core Ultra
  Chipset	B860
  Memory Speed	up to 8600+
  Max Memory Support	256 GB
  Supported Memory Type	DDR5
  Channel Supported	Dual Channel
  Memory Feature	DIMM Fit Supports Intel® Extreme Memory Profile (XMP) memory module ASUS Enhanced Memory Profile III(AEMPIII) * Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information please refer to CPU/Memory Support list under the Support tab of product information on Brand Site. ** Non-ECC, un-buffered DDR5 memory supports On-Die ECC function.
  Graphics Port	1 x DisplayPort,1 x HDMI,1 x USB Type-C
  Expansion Slots	Intel® Core™ Ultra Processors (Series 2) 1 x PCIe 5.0 x16 slot Intel® B860 Chipset 1 x PCIe 4.0 x16 slot (supports x4 mode)* * M.2_4 slot shares bandwidth with PCIEX16(G4). When PCIEX16(G4) slot is operating, M.2_4 will be disabled. - To ensure compatibility of the device installed, please refer to Brand Website for the list of supported peripherals.
  Wireless Networking	WiFi 7,Bluetooth 5.4

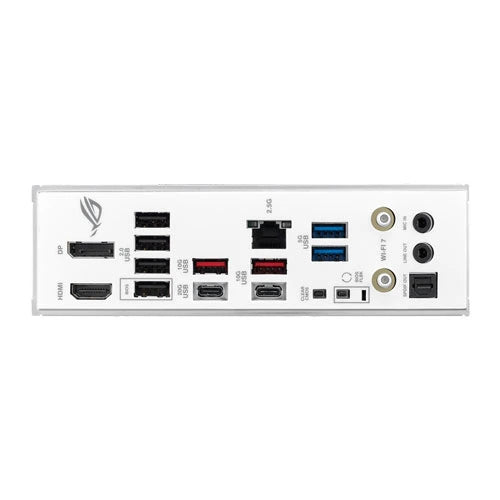

  Back Panel I/O Ports	1 x USB4® (20Gbps) port (1 x USB Type-C®) 3 x USB 10Gbps ports (2 x Type-A + 1 x USB Type-C®) 2 x USB 5Gbps ports (2 x Type-A) 4 x USB 2.0 ports (4 x Type-A) 1 x DisplayPort 1 x HDMI™ port 1 x Wi-Fi module 1 x Intel® 2.5Gb Ethernet port 2 x Audio jacks 1 x Optical S/PDIF out port 1 x BIOS FlashBack™ button 1 x Clear CMOS button
  Internal I/O Connector	1 x 4-pin CPU Fan header 1 x 4-pin CPU OPT Fan header 1 x 4-pin AIO Pump header 4 x 4-pin Chassis Fan headers 1 x 24-pin Main Power connector 2 x 8-pin +12V CPU Power connector 4 x M.2 slots (Key M) 4 x SATA 6Gb/s ports 1 x USB 10Gbps connector (supports USB Type-C® ) 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports 1 x USB 2.0 header supports 2 additional USB 2.0 ports 3 x Addressable Gen2 header(s) 1 x Front Panel Audio header (F_AUDIO) 1 x 10-1 pin Front System Panel header 1 x Thermal Sensor header 1 x Thunderbolt™ (USB4®) header
  Form Factor	ATX
  Warranty	3 Years
  Note	Features, Price and Specifications are subject to change without notice. Images use for Representation Purpose Only.

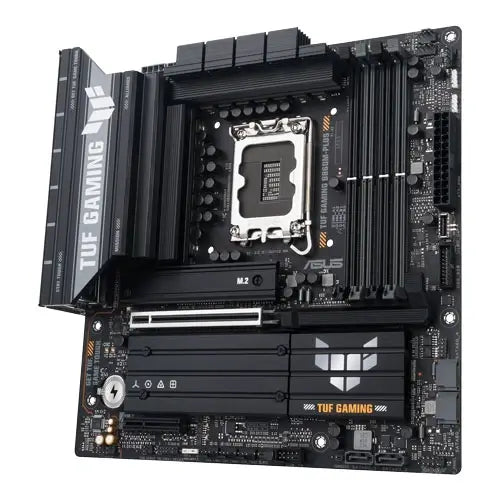

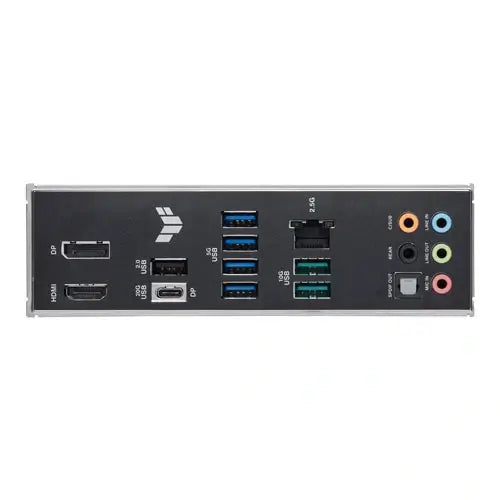

•  Brand:ASUS

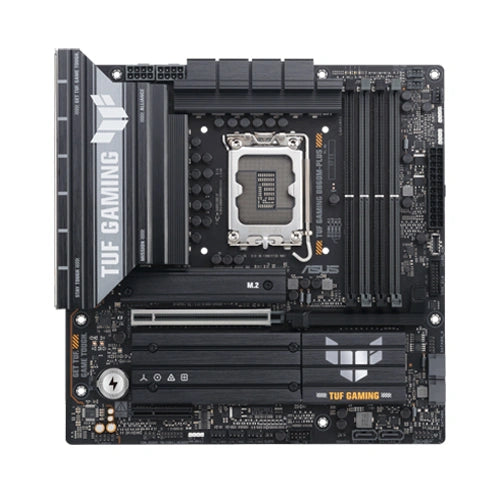

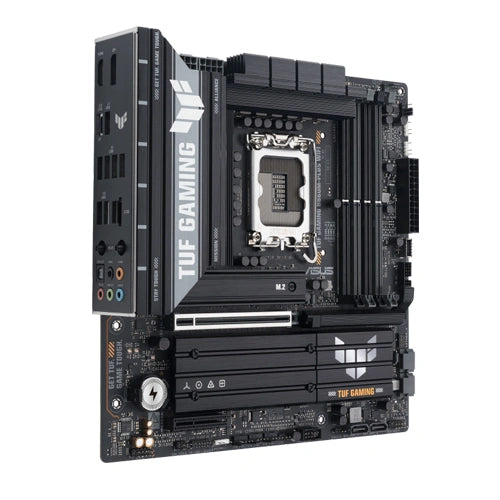

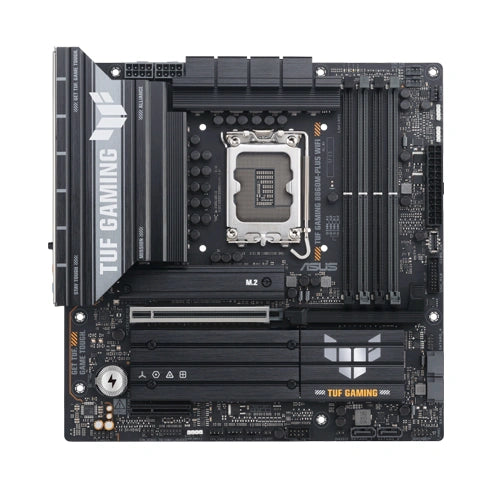

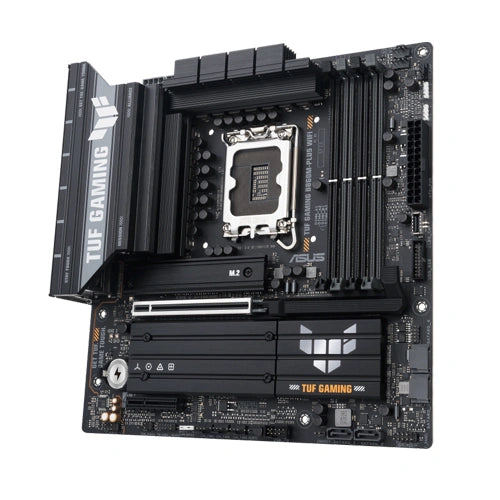

• Product Code:TUF-GAMING-B860M-PLUS-WIFI

  Features:

  ASUS TUF GAMING B860M-PLUS WIFI takes all the essential elements of the latest Intel Core Ultra Processors (Series 2) and combines them with game-ready features and proven durability. Engineered with military-grade components, an upgraded power solution and a comprehensive cooling system, this motherboard goes beyond expectations with rock-solid and stable performance for marathon gaming. TUF GAMING motherboards also undergo rigorous endurance testing to ensure that they can handle conditions where others may fail. This platform delivers the power and connectivity that advanced AI PC applications demand.

  Premium Power Design

  Stable power is crucial for maximizing the performance of Intel processors. The motherboard is designed to meet the needs of high-core-count CPUs. It features 12(80A) + 1(80A) + 2(80A) + 1(80A) power stages that integrate high-side and low-side MOSFETs and drivers into packages rated for up to 80A each. This configuration ensures optimal power delivery, efficiency, stability and performance for both current and future Intel processors.

  Eight Layered PCB design

  Enhanced stability and overclocking

  ProCool Power Connectors

  Proprietary 8+8 pin connectors improve PSU connection.

  TUF Components

  TUF chokes and capacitors offer rock-solid durability and stability.

  Digi+VRM Control

  Real-time voltage control.

  DRAM Overclocking Performance

  Comprehensive memory tuning options are the cornerstone of TUF GAMING motherboards. With the motherboard, you can extract all the potential out of your DDR5 modules*, whether they're from an extreme-speed kit or an entry-level set that would otherwise be locked.
  * Memory overclocking may vary between CPU series. Please refer to the spec table for detailed information.

  AEMP III

  ASUS Enhanced Memory Profile III (AEMP III) is an advanced firmware feature that empowers users to achieve unparalleled memory performance with cutting-edge CUDIMM memory. Through a two-phase comprehensive tuning process, AEMP III first optimizes the clock driver and then the memory frequency. This results in the best balance between performance and stability, even at cutting-edge speeds of DDR5-7600 or higher.*
  *Results may vary according to individual system specifications. Currently, only 2-DIMM configurations are supported. Results are based on a test with an Intel Core Ultra 9 285K processor and 2x16GB SK Hynix DDR5-6400 Clocked Unbuffered DIMM RAM

  DIMM Fit

  DIMM Fit is an ASUS-exclusive BIOS feature that precisely analyzes individual memory modules to optimize performance and pinpoint potential issues. This offers peak efficiency, compatibility, and system stability.
  Whether you are an overclocker seeking ultimate performance, a competitor pursuing the most responsive gameplay, or a content creator prioritizing rock-solid stability, DIMM Fit provides optimizations tailored to your needs and your hardware configuration.

  NPU Boost

  The integrated NPU in Intel Core Ultra Processors (Series 2) efficiently accelerates AI workflows — and NPU Boost lets you do more with it. This BIOS feature overclocks the NPU with just one click, increasing performance by up to 24%.

  Asynchronous Clock

  For next-level frequency flexibility, the TUF Gaming B860M features a built-in clock generator that isolates CPU base clock from memory, NPU, D2D and NGU*. Drive memory, NPU and others performance to their absolute brink while maintaining the stability of CPU clock domains.
  Separate CPU BCLK from other domains for unfettered overclocking.
  *NGU stands for Next Generation Uncore.

  M.2 PCIe 5.0 Support

  This motherboard also features one PCIe 5.0 M.2 slots to enjoy the fastest data transfers of up to 128 Gbps*, and all M.2 slots support NVMe RAID configurations to take advantage of the latest available speeds.

  2.5Gb Ethernet

  On-board 2.5Gb Ethernet kicks your LAN connection up a notch by improving bandwidth speeds up to 2.5X faster than 1Gb connections.

  WiFi 7

  WiFi 7 ensures stable connections and low latency.

  AI Advisor

  ASUS AI Advisor is an ASUS technical expert that's always available to answer your questions. Owners of compatible ASUS motherboards can interact with this AI-powered technology using natural language to learn more about their hardware. For DIY beginners, it can provide easy-to-understand explanations of one-click optimization features like AI Overclocking and fan speed tuning, and for seasoned PC-building veterans, it can offer guidance and instructions on the latest features offered by ASUS.

  Motherboard
  Platform	INTEL
  Socket	LGA1851
  Cpu Type	Core Ultra
  Chipset	B860
  Memory Speed	up to 8800+
  Max Memory Support	256 GB
  Supported Memory Type	DDR5
  Channel Supported	Dual Channel
  Memory Feature	DIMM Fit Supports Intel® Extreme Memory Profile (XMP) memory module ASUS Enhanced Memory Profile III(AEMPIII) * Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information please refer to CPU/Memory Support list under the Support tab of product information Brand Site. Adjustments will be made based on the specifications of mass-produced memory products available on the market. * Non-ECC, un-buffered DDR5 memory supports On-Die ECC function.
  Graphics Port	1 x DisplayPort,1 x HDMI,1 x USB Type-C
  Expansion Slots	Intel® CoreTM Ultra Processors(Series 2)* 1 x PCIe 5.0 x16 slot Intel® B860 Chipset 1 x PCIe 4.0 x4 slot - To ensure compatibility of the device installed, please refer to Brand Site for the list of supported peripherals.
  Wireless Networking	WiFi 7,Bluetooth 5.4

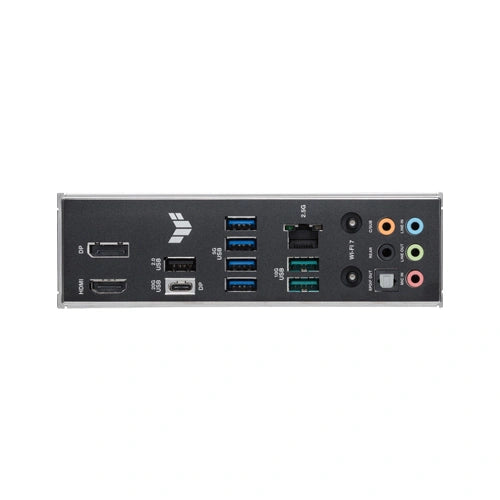

  Back Panel I/O Ports	1 x USB 20Gbps port (1 x USB Type-C® with DP Alt mode) 2 x USB 10Gbps port (2 x Type-A) 4 x USB 5Gbps ports (4 x Type-A) 1 x USB 2.0 port (1 x Type-A) 1 x DisplayPort 1 x HDMI™ port 1 x Wi-Fi Module 1 x Realtek 2.5Gb Ethernet port 5 x Audio jacks 1 x Optical S/PDIF out port
  Internal I/O Connector	1 x 4-pin CPU Fan header 1 x 4-pin CPU OPT Fan header 1 x 4-pin AIO Pump header 3 x 4-pin Chassis Fan headers 1 x 24-pin Main Power connector 2 x 8-pin +12V Power connectors 3 x M.2 slots (Key M) 4 x SATA 6Gb/s ports 1 x USB 10Gbps connector (supports USB Type-C® ) 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports 1 x USB 2.0 header supports 2 additional USB 2.0 ports 3 x Addressable Gen 2 headers 1 x Clear CMOS header 1 x Chassis Intrusion header 1 x Front panel audio header (F_AUDIO) 1 x 10-1 pin Front System Panel header 1 x Thunderbolt™ (USB4®) header
  Form Factor	Micro-ATX
  Warranty	3 Years
  Note	Features, Price and Specifications are subject to change without notice. Images use for Representation Purpose Only.

• Brand:ASUS
• Product Code:TUF-GAMING-B860M-PLUS

  Features:

  ASUS TUF GAMING B860M-PLUS takes all the essential elements of the latest Intel Core Ultra Processors (Series 2) and combines them with game-ready features and proven durability. Engineered with military-grade components, an upgraded power solution and a comprehensive cooling system, this motherboard goes beyond expectations with rock-solid and stable performance for marathon gaming. TUF GAMING motherboards also undergo rigorous endurance testing to ensure that they can handle conditions where others may fail. This platform delivers the power and connectivity that advanced AI PC applications demand.

  Premium Power Design

  Stable power is crucial for maximizing the performance of AMD processors. The motherboard is designed to meet the needs of high-core-count CPUs. It features 14(80A) + 2(80A) + 1(80A) power stages that integrate high-side and low-side MOSFETs and drivers into packages rated for up to 80A each. This configuration ensures optimal power delivery, efficiency, stability and performance for both current and future AMD processors.

  DRAM Overclocking Performance

  Comprehensive memory tuning options are the cornerstone of TUF GAMING motherboards. With the motherboard, you can extract all the potential out of your DDR5 modules*, whether they're from an extreme-speed kit or an entry-level set that would otherwise be locked.

  DDR5 DOMINANCE

  For those who want to fly past stock DDR5 speeds, this motherboard is primed and ready for enthusiast-grade kits, courtesy of vast AMD Extended Profiles for Overclocking (EXPO) support. Seasoned veterans can further tweak performance via an extensive array of settings in the UEFI.

  ASUS AEMP

  ASUS Enhanced Memory Profile (AEMP) is an exclusive firmware feature for PMIC-restricted memory modules. AEMP automatically detects the memory chips on your kit and then presents optimized frequency, timing and voltage profiles that you can quickly apply.

  M.2 PCIe 5.0 Support

  This motherboard also features one PCIe 5.0 M.2 slots to enjoy the fastest data transfers of up to 128 Gbps*, and all M.2 slots support NVMe RAID configurations to take advantage of the latest available speeds.

  Empowering Connection

  This motherboard offers a versatile range of connectivity with PCIe 5.0, rear USB 20Gbps Type-C® port and front USB 10Gbps Type-C connector.

  PCIe 5.0 for Graphics Card

  PCIe 5.0 offers twice the data transfer speed of PCIe 4.0, making it robust enough to handle new data-heavy tasks. PCIe 5.0 also brings other benefits, such as electrical changes to improve signal integrity, backward-compatible CEM connectors for add-in cards and backward compatibility with previous versions of the PCIe bus.

  Rear USB 20Gbps Type-C

  Extensive USB support ensures connections to a wide array of external devices. This motherboard includes a USB 20Gbps Type-C port on the rear I/O panel that delivers transfer speeds of up to 20Gbps.

  Front USB 10Gbps Type-C

  This motherboard features a USB 10Gbps Type-C  front panel connector for speedy data transfers of up to 10Gbps.

  PCIe Slot Q-Release

  A physical lever unlocks the first PCIe slot’s security latch with one tap, greatly simplifying the process of detaching a PCIe card from the motherboard when it’s time to upgrade to a new GPU or other compatible device.

  Ultrafast Networking

  Provide a feature-packed high-performance gaming package, with ultrafast networking for smoother online gameplay.

  2.5Gb Ethernet

  On-board 2.5Gb Ethernet kicks your LAN connection up a notch by improving bandwidth speeds up to 2.5X faster than 1Gb connections.

  Pre-mounted I/O shield

  Our pre-installed I/O shield safeguards ports, simplifies the build process, increases functionality and enhances aesthetics for PC DIY enthusiasts.

  Addressable Gen2 RGB Header

  Three addressable Gen2 RGB headers will support up to 500 LEDs on Gen2 RGB devices, empowering Aura Sync to automatically tailor lighting effects across your whole system. The headers also offer full backward compatibility with existing Aura Sync gear.

  Motherboard
  Platform	INTEL
  Socket	LGA1851
  Cpu Type	Core Ultra
  Chipset	B860
  Memory Speed	up to 8800+
  Max Memory Support	256 GB
  Supported Memory Type	DDR5
  Channel Supported	Dual Channel
  Memory Feature	DIMM Fit Supports Intel® Extreme Memory Profile (XMP) memory module ASUS Enhanced Memory Profile III(AEMPIII) * Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information please refer to CPU/Memory Support list under the Support tab of product information Brand Site. Adjustments will be made based on the specifications of mass-produced memory products available on the market. * Non-ECC, un-buffered DDR5 memory supports On-Die ECC function.
  Graphics Port	1 x DisplayPort,1 x HDMI,1 x USB Type-C
  Expansion Slots	Intel® CoreTM Ultra Processors(Series 2)* 1 x PCIe 5.0 x16 slot Intel® B860 Chipset 1 x PCIe 4.0 x4 slot - To ensure compatibility of the device installed, please refer to https://www.asus.com/support/ for the list of supported peripherals. Intel® CoreTM Ultra Processors(Series 2)* 1 x PCIe 5.0 x16 slot Intel® B860 Chipset 1 x PCIe 4.0 x4 slot - To ensure compatibility of the device installed, please refer to Brand Site for the list of supported peripherals.
  Back Panel I/O Ports	1 x USB 20Gbps port (1 x USB Type-C® with DP Alt mode) 2 x USB 10Gbps port (2 x Type-A) 4 x USB 5Gbps ports (4 x Type-A) 1 x USB 2.0 port (1 x Type-A) 1 x DisplayPort 1 x HDMI™ port 1 x Wi-Fi Module 1 x Realtek 2.5Gb Ethernet port 5 x Audio jacks 1 x Optical S/PDIF out port 1 x USB 20Gbps port (1 x USB Type-C® with DP Alt mode) 2 x USB 10Gbps port (2 x Type-A) 4 x USB 5Gbps ports (4 x Type-A) 1 x USB 2.0 port (1 x Type-A) 1 x DisplayPort 1 x HDMI™ port 1 x Realtek 2.5Gb Ethernet port 5 x Audio jacks 1 x Optical S/PDIF out port
  Internal I/O Connector	1 x 4-pin CPU Fan header 1 x 4-pin CPU OPT Fan header 1 x 4-pin AIO Pump header 3 x 4-pin Chassis Fan headers 1 x 24-pin Main Power connector 2 x 8-pin +12V Power connectors 3 x M.2 slots (Key M) 4 x SATA 6Gb/s ports 1 x USB 10Gbps connector (supports USB Type-C® ) 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports 1 x USB 2.0 header supports 2 additional USB 2.0 ports 3 x Addressable Gen 2 headers 1 x Clear CMOS header 1 x Chassis Intrusion header 1 x Front panel audio header (F_AUDIO) 1 x 10-1 pin Front System Panel header 1 x Thunderbolt™ (USB4®) header I/O Connectors Fan and Cooling related 1 x 4-pin CPU Fan header 1 x 4-pin CPU OPT Fan header 1 x 4-pin AIO Pump header 3 x 4-pin Chassis Fan headers 1 x 24-pin Main Power connector 2 x 8-pin +12V Power connectors 3 x M.2 slots (Key M) 4 x SATA 6Gb/s ports 1 x USB 10Gbps connector (supports USB Type-C® ) 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports 1 x USB 2.0 header supports 2 additional USB 2.0 ports 3 x Addressable Gen 2 headers 1 x Clear CMOS header 1 x Chassis Intrusion header 1 x Front panel audio header (F_AUDIO) 1 x 10-1 pin Front System Panel header 1 x Thunderbolt™ (USB4®) header
  Form Factor	Micro-ATX
  Warranty	3 Years
  Note	Features, Price and Specifications are subject to change without notice. Images use for Representation Purpose Only.

• Brand:ASUS

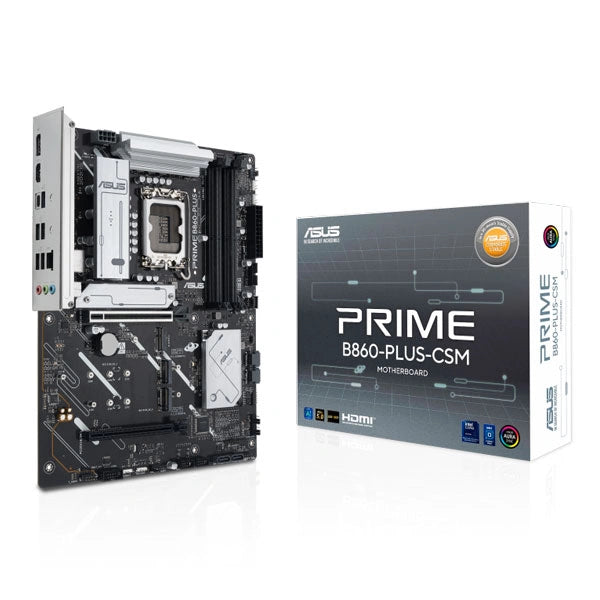

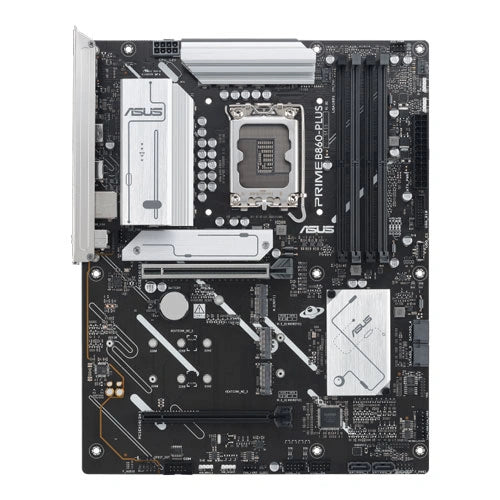

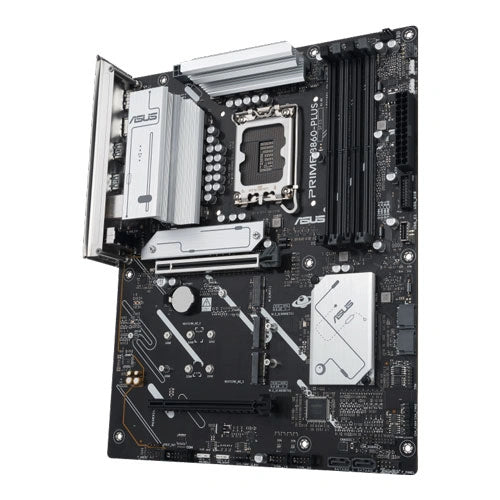

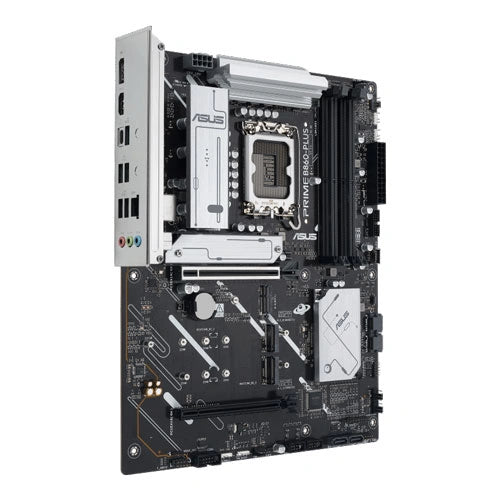

• Product Code:PRIME-B860-PLUS-CSM

  Features:

  ASUS PRIME series motherboards are expertly engineered to unleash the full potential of the latest Intel Core Ultra Processors (Series 2). Boasting a robust power design, comprehensive cooling solutions and intelligent tuning options, the PRIME B860-PLUS-CSM motherboard provides users and PC DIY builders with a range of performance optimizations via intuitive software and firmware features. It’s designed to be Advanced AI PC-ready, offering the power and connectivity needed for demanding AI applications.

  Robust power design

  Stable power is crucial for maximizing the performance of Intel Core Ultra Processors (Series 2). The PRIME B860-PLUS-CSM is designed to meet the needs of high-core-count CPUs. It features 8(80A) + 1(80A) + 1(80A) + 1(80A) power stages that integrate high-side and low-side MOSFETs and drivers into packages rated for up to 80 amperes each. This configuration ensures optimal power delivery, efficiency, stability and performance for both current and future Intel processors.

  Three M.2 slots

  PRIME B860-PLUS-CSM offers a total of three M.2 slots, including one that supports data-transfer speeds of up to 128Gbps via PCIe 5.0, one that support 64Gbps via PCIe 4.0. This enables quicker boot-up and app load times with OS or application drives.

  Empowering connections

  The PRIME B860-PLUS-CSM motherboard offers a versatile range of connectivity, including the latest version of PCI Express, while an arsenal of USB ports includes Type-C connections expands compatibility and bandwidth even further.

  Motherboard
  Platform	INTEL
  Socket	LGA1851
  Cpu Type	Core Ultra
  Chipset	B860
  Memory Speed	up to 8666+
  Max Memory Support	256 GB
  Supported Memory Type	DDR5
  Channel Supported	Dual Channel
  Memory Feature	Non-ECC, Un-buffered ,Clocked Unbuffered DIMM (CUDIMM) DIMM Fit Supports Intel® Extreme Memory Profile (XMP) memory module ASUS Enhanced Memory Profile III (AEMP III) * Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information please refer to CPU/Memory Support list under the Support tab of product information on Brand Site. * Non-ECC, un-buffered DDR5 memory supports On-Die ECC function.
  Graphics Port	1 x DisplayPort,1 x HDMI
  Expansion Slots	Intel® Core™ Ultra Processors (Series 2) 1 x PCIe 5.0 x16 slot Intel® B860 Chipset 1 x PCIe 4.0 x16 slot (supports x4 mode)
  Back Panel I/O Ports	1 x USB 20Gbps port (1 x USB Type-C®) 2 x USB 10Gbps ports (2 x Type-A) 1 x USB 5Gbps port (1 x Type-A) 2 x USB 2.0 ports (2 x Type-A) 1 x DisplayPort 1 x HDMI™ port 1 x Realtek 2.5Gb Ethernet port 3 x Audio jacks
  Internal I/O Connector	1 x 4-pin CPU Fan header 1 x 4-pin CPU OPT Fan header 1 x 4-pin AIO Pump header 4 x 4-pin Chassis Fan headers 1 x 24-pin Main Power connector 1 x 8-pin +12V CPU Power connector 3 x M.2 slots (Key M) 4 x SATA 6Gb/s ports 1 x USB 5Gbps connector (supports USB Type-C®) 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports 2 x USB 2.0 header support 4 additional USB 2.0 ports 3 x Addressable Gen 2 headers 1 x Aura RGB header 1 x Clear CMOS header 1 x Chassis Intrusion header 1 x COM Port header 1 x Front Panel Audio header (F_AUDIO) 1 x S/PDIF Out header 1 x SPI TPM header (14-1pin) 1 x 10-1 pin Front System Panel header 1 x Thunderbolt™ (USB4®) header
  Form Factor	ATX
  Warranty	3 Years
  Note	Features, Price and Specifications are subject to change without notice. Images use for Representation Purpose Only.

• Brand:ASUS
• Product Code:PRIME-B860-PLUS-CSM

  Features:

  ASUS PRIME series motherboards are expertly engineered to unleash the full potential of the latest Intel Core Ultra Processors (Series 2). Boasting a robust power design, comprehensive cooling solutions and intelligent tuning options, the PRIME B860-PLUS-CSM motherboard provides users and PC DIY builders with a range of performance optimizations via intuitive software and firmware features. It’s designed to be Advanced AI PC-ready, offering the power and connectivity needed for demanding AI applications.

  Robust power design

  Stable power is crucial for maximizing the performance of Intel Core Ultra Processors (Series 2). The PRIME B860-PLUS-CSM is designed to meet the needs of high-core-count CPUs. It features 8(80A) + 1(80A) + 1(80A) + 1(80A) power stages that integrate high-side and low-side MOSFETs and drivers into packages rated for up to 80 amperes each. This configuration ensures optimal power delivery, efficiency, stability and performance for both current and future Intel processors.

  Three M.2 slots

  PRIME B860-PLUS-CSM offers a total of three M.2 slots, including one that supports data-transfer speeds of up to 128Gbps via PCIe 5.0, one that support 64Gbps via PCIe 4.0. This enables quicker boot-up and app load times with OS or application drives.

  Empowering connections

  The PRIME B860-PLUS-CSM motherboard offers a versatile range of connectivity, including the latest version of PCI Express, while an arsenal of USB ports includes Type-C connections expands compatibility and bandwidth even further.

  Features:

  ASUS PRIME series motherboards are expertly engineered to unleash the full potential of the latest Intel Core Ultra Processors (Series 2). Boasting a robust power design, comprehensive cooling solutions and intelligent tuning options, the PRIME B860-PLUS-CSM motherboard provides users and PC DIY builders with a range of performance optimizations via intuitive software and firmware features. It’s designed to be Advanced AI PC-ready, offering the power and connectivity needed for demanding AI applications.

  Robust power design

  Stable power is crucial for maximizing the performance of Intel Core Ultra Processors (Series 2). The PRIME B860-PLUS-CSM is designed to meet the needs of high-core-count CPUs. It features 8(80A) + 1(80A) + 1(80A) + 1(80A) power stages that integrate high-side and low-side MOSFETs and drivers into packages rated for up to 80 amperes each. This configuration ensures optimal power delivery, efficiency, stability and performance for both current and future Intel processors.

  Three M.2 slots

  PRIME B860-PLUS-CSM offers a total of three M.2 slots, including one that supports data-transfer speeds of up to 128Gbps via PCIe 5.0, one that support 64Gbps via PCIe 4.0. This enables quicker boot-up and app load times with OS or application drives.

  Empowering connections

  The PRIME B860-PLUS-CSM motherboard offers a versatile range of connectivity, including the latest version of PCI Express, while an arsenal of USB ports includes Type-C connections expands compatibility and bandwidth even further.

  Features:

  ASUS PRIME series motherboards are expertly engineered to unleash the full potential of the latest Intel Core Ultra Processors (Series 2). Boasting a robust power design, comprehensive cooling solutions and intelligent tuning options, the PRIME B860-PLUS-CSM motherboard provides users and PC DIY builders with a range of performance optimizations via intuitive software and firmware features. It’s designed to be Advanced AI PC-ready, offering the power and connectivity needed for demanding AI applications.

  Robust power design

  Stable power is crucial for maximizing the performance of Intel Core Ultra Processors (Series 2). The PRIME B860-PLUS-CSM is designed to meet the needs of high-core-count CPUs. It features 8(80A) + 1(80A) + 1(80A) + 1(80A) power stages that integrate high-side and low-side MOSFETs and drivers into packages rated for up to 80 amperes each. This configuration ensures optimal power delivery, efficiency, stability and performance for both current and future Intel processors.

  Three M.2 slots

  PRIME B860-PLUS-CSM offers a total of three M.2 slots, including one that supports data-transfer speeds of up to 128Gbps via PCIe 5.0, one that support 64Gbps via PCIe 4.0. This enables quicker boot-up and app load times with OS or application drives.

  Empowering connections

  The PRIME B860-PLUS-CSM motherboard offers a versatile range of connectivity, including the latest version of PCI Express, while an arsenal of USB ports includes Type-C connections expands compatibility and bandwidth even further.

  Motherboard
  Platform	INTEL
  Socket	LGA1851
  Cpu Type	Core Ultra
  Chipset	B860
  Memory Speed	up to 8666+
  Max Memory Support	256 GB
  Supported Memory Type	DDR5
  Channel Supported	Dual Channel
  Memory Feature	Non-ECC, Un-buffered ,Clocked Unbuffered DIMM (CUDIMM) DIMM Fit Supports Intel® Extreme Memory Profile (XMP) memory module ASUS Enhanced Memory Profile III (AEMP III) * Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information please refer to CPU/Memory Support list under the Support tab of product information on Brand Site. * Non-ECC, un-buffered DDR5 memory supports On-Die ECC function.
  Graphics Port	1 x DisplayPort,1 x HDMI
  Expansion Slots	Intel® Core™ Ultra Processors (Series 2) 1 x PCIe 5.0 x16 slot Intel® B860 Chipset 1 x PCIe 4.0 x16 slot (supports x4 mode)
  Back Panel I/O Ports	1 x USB 20Gbps port (1 x USB Type-C®) 2 x USB 10Gbps ports (2 x Type-A) 1 x USB 5Gbps port (1 x Type-A) 2 x USB 2.0 ports (2 x Type-A) 1 x DisplayPort 1 x HDMI™ port 1 x Realtek 2.5Gb Ethernet port 3 x Audio jacks
  Internal I/O Connector	1 x 4-pin CPU Fan header 1 x 4-pin CPU OPT Fan header 1 x 4-pin AIO Pump header 4 x 4-pin Chassis Fan headers 1 x 24-pin Main Power connector 1 x 8-pin +12V CPU Power connector 3 x M.2 slots (Key M) 4 x SATA 6Gb/s ports 1 x USB 5Gbps connector (supports USB Type-C®) 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports 2 x USB 2.0 header support 4 additional USB 2.0 ports 3 x Addressable Gen 2 headers 1 x Aura RGB header 1 x Clear CMOS header 1 x Chassis Intrusion header 1 x COM Port header 1 x Front Panel Audio header (F_AUDIO) 1 x S/PDIF Out header 1 x SPI TPM header (14-1pin) 1 x 10-1 pin Front System Panel header 1 x Thunderbolt™ (USB4®) header
  Form Factor	ATX
  Warranty	3 Years
  Note	Features, Price and Specifications are subject to change without notice. Images use for Representation Purpose Only.

• Brand:ASUS

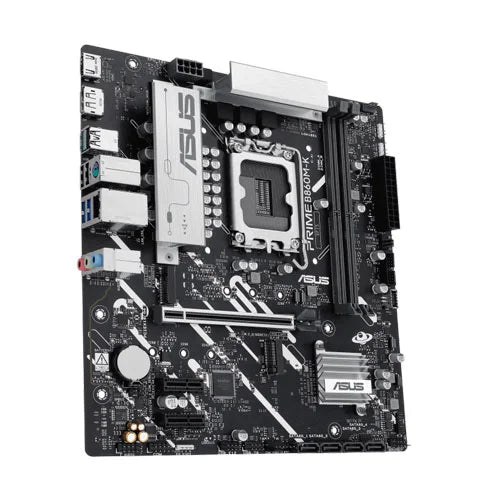

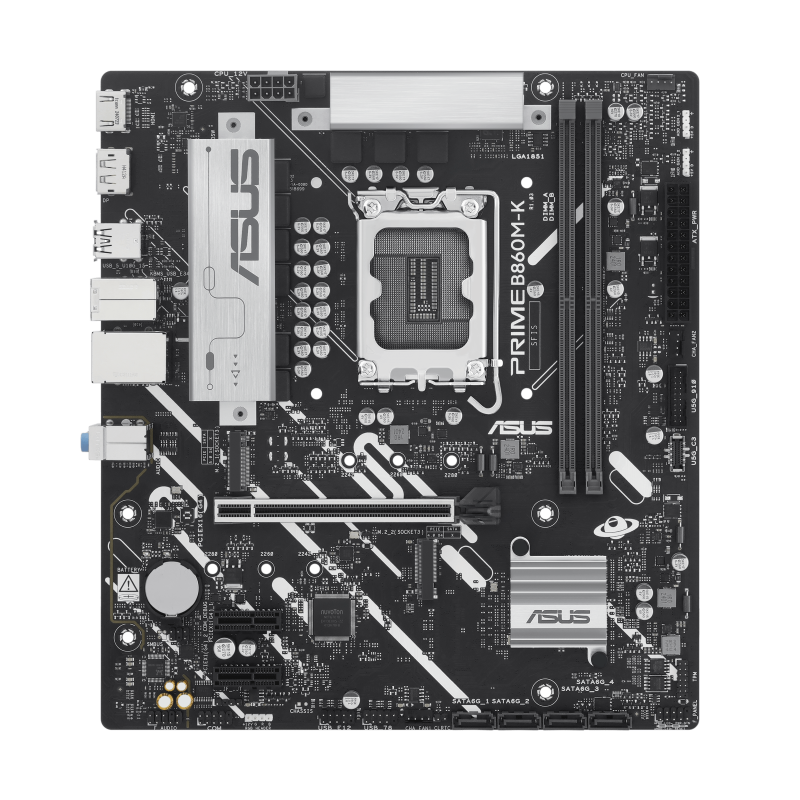

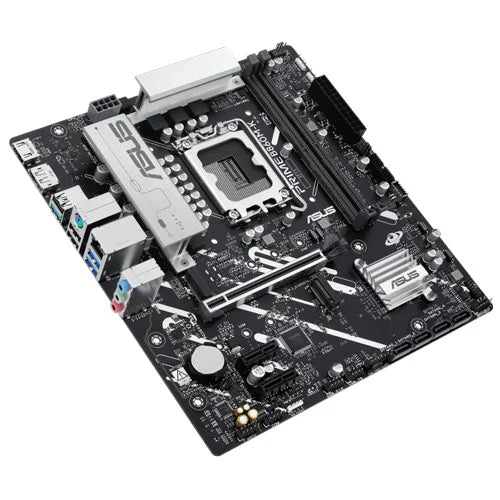

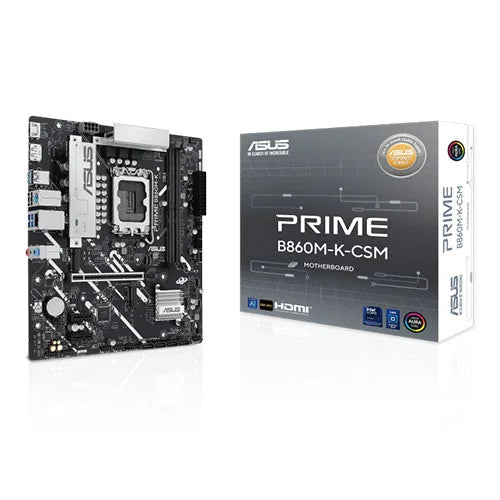

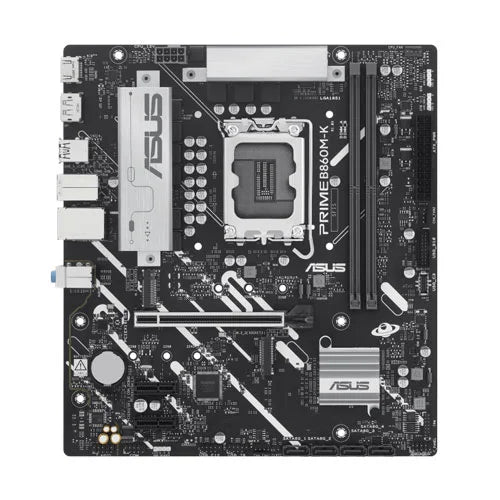

• Product Code:PRIME-B860M-K-CSM
• Availability:In Stock

  Features:

  ASUS PRIME series motherboards are expertly engineered to unleash the full potential of the latest Intel Core Ultra Processors (Series 2). Boasting a robust power design, comprehensive cooling solutions and intelligent tuning options, the PRIME B860M-K-CSM motherboard provides users and PC DIY builders with a range of performance optimizations via intuitive software and firmware features. It’s designed to be Advanced AI PC-ready, offering the power and connectivity needed for demanding AI applications.

  Digital Power Design

  Stable power is crucial for maximizing the performance of Intel Core Ultra Processors (Series 2).The PRIME B860M-K-CSM features an 6+1+1+1 phase design with discrete MOSFETs,ensuring efficient and stable power delivery for Intel processors plus steady performance for day-to-day use.

  AEMP III for Ultimate DDR5 Performance

  ASUS Enhanced Memory Profile III (AEMP III) is an advanced firmware feature that empowers users to achieve unparalleled memory performance with cutting-edge CUDIMM memory. Through a two-phase comprehensive tuning process, AEMP III first optimizes the clock driver and then the memory frequency. This results in the best balance between performance and stability, even at cutting-edge speeds of DDR5-7600 or higher.

  DIMM Fit

  DIMM Fit is an ASUS-exclusive BIOS feature that precisely analyzes individual memory modules to optimize performance and pinpoint potential issues. This offers peak efficiency, compatibility, and system stability. Whether you are an overclocker seeking ultimate performance, a competitor pursuing the most responsive gameplay, or a content creator prioritizing rock-solid stability, DIMM Fit provides optimizations tailored to your needs and your hardware configuration.

  Two M.2 slots (up to 128Gbps)

  PRIME B860M-K-CSM offers a total of two M.2 slots, including one that supports data-transfer speeds of up to 128Gbps via PCIe 5.0, one that supports 64Gbps via PCIe 4.0. This enables quicker boot-up and app load times with OS or application drives.

  Cooler by design

  The PRIME B860M-K-CSM motherboard is engineered with multiple onboard heatsinks and an array of hybrid fan headers to help ensure your rig stays cool and stable under intense workloads.

  ASUS Fan Xpert 2+

  ASUS Fan Xpert 2+ software provides comprehensive control over fans. An Auto-Tuning mode intelligently configures all parameters with a single click. There’s also an Extreme Quiet mode that reduces chassis fan speeds to below the default minimum to keep your system whisper-quiet when performing light tasks. Fans can also be controlled via the UEFI BIOS.

  Empowering connections

  This motherboard offers a versatile range of connectivity, including support for PCIe 5.0 M.2, PCIe 4.0 slot and an arsenal of USB ports which includes Type-C connection.

  Realtek 2.5Gb Ethernet

  Realtek 2.5Gb Ethernet reduces CPU overhead and offers exceptionally high TCP and UDP throughput for faster, smoother data transfers.

  USB 5Gbps Type-C

  A batch of USB ports support high-end rigs loaded with peripherals, including a front USB Type-C connector with ultrafast USB 5Gbps for transmission speeds of up to 5Gbps.

  Personalization

  The PRIME B860M-K-CSM enhances the user experience across the board, from simplifying BIOS setting adjustments to offering customizable RGB lighting controls for a uniquely personal system aesthetic.

  UEFI BIOS

  The UEFI interface delivers easy-to-use configuration options for PC beginners, and advanced features for veterans.

  ASUS DriverHub

  Simplify driver management with automatic detection, one-click installation and update for smooth, efficient system performance.

  Armoury Crate

  Customize Aura Sync RGB and control ASUS devices. Includes product registration and updates.

  Aura Sync

  Complete RGB lighting control for enthusiast systems, ensuring seamless synchronization with compatible hardware.

  Addressable Gen2 RGB headers

  Two Addressable Gen2 headers detect LED counts on compatible RGB devices, automatically adjusting lighting effects accordingly.

  DIY friendly

  The PRIME B860M-K-CSM motherboard features EZ PC DIY innovations that simplify and speed up the PC building process, making DIY easy and convenient.

  SafeSlot Core+

  SafeSlot Core+ is a one-piece stainless-steel brace that shields the slot to protect it from damage. The metal cover is tightly secured to the slot with hooks, and the entire assembly is firmly anchored to the PCB with strengthened solder points to provide a secure foundation for heavyweight graphics cards.

  Q-LED Core

  The Q-LED Core display produces color-coded lights during the Power-On Self-Test (POST) that can help you troubleshoot potential issues.

  Motherboard
  Platform	INTEL
  Socket	LGA1851
  Cpu Type	Core Ultra
  Chipset	B860
  Memory Speed	up to 8800+
  Max Memory Support	128 GB
  Supported Memory Type	DDR5
  Channel Supported	Dual Channel
  Memory Feature	DIMM Fit Supports Intel® Extreme Memory Profile (XMP) memory module ASUS Enhanced Memory Profile III(AEMPIII) * Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information please refer to CPU/Memory Support list under the Support tab of product information Brand Site. Adjustments will be made based on the specifications of mass-produced memory products available on the market. ** Non-ECC, un-buffered DDR5 memory supports On-Die ECC function.
  Graphics Port	1 x DisplayPort,1 x HDMI
  Expansion Slots	Intel® Core™ Ultra Processors (Series 2) 1 x PCIe 4.0 x16 slot Intel® B860 Chipset 2 x PCIe 4.0 x1 slots - To ensure compatibility of the device installed, please refer to Brand Site for the list of supported peripherals.
  Back Panel I/O Ports	1 x USB 10Gbps port (1 x Type-A) 2 x USB 5Gbps ports (2 x Type-A) 3 x USB 2.0 ports (3 x Type-A) 1 x DisplayPort 1 x HDMITM port 1 x Realtek 2.5Gb Ethernet port 3 x Audio jacks 1 x PS/2 Keyboard/Mouse combo port
  Internal I/O Connector	1 x 4-pin CPU Fan header 2 x 4-pin Chassis Fan headers 1 x 24-pin Main Power connector 1 x 8-pin +12V CPU Power connector 2 x M.2 slots (Key M) 4 x SATA 6Gb/s ports 1 x USB 5Gbps connector (supports USB Type-C® ) 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports 2 x USB 2.0 headers support 4 additional USB 2.0 ports 2 x Addressable Gen2 headers 1 x Aura RGB header 1 x Clear CMOS header 1 x COM Port header 1 x Front Panel Audio header (F_AUDIO) 1 x S/PDIF Out header 1 x SPI TPM header (14-1 pin) 1 x 10-1 pin Front Panel System header
  Form Factor	Micro-ATX
  Warranty	3 Years
  Note	Features, Price and Specifications are subject to change without notice. Images use for Representation Purpose Only.

• Brand:ASUS

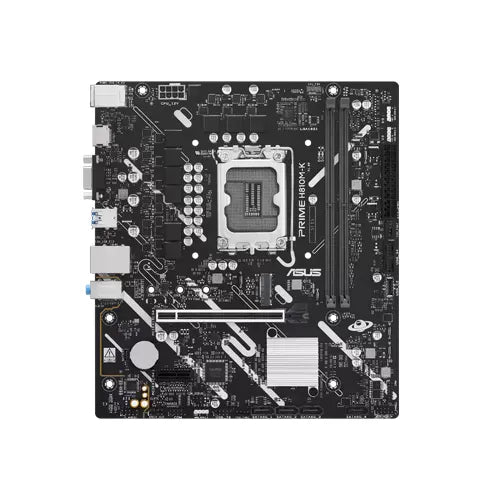

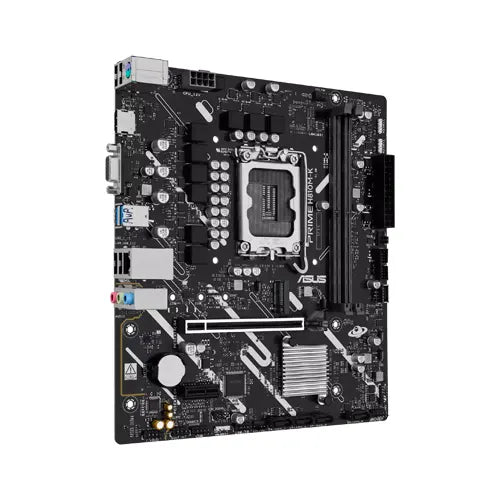

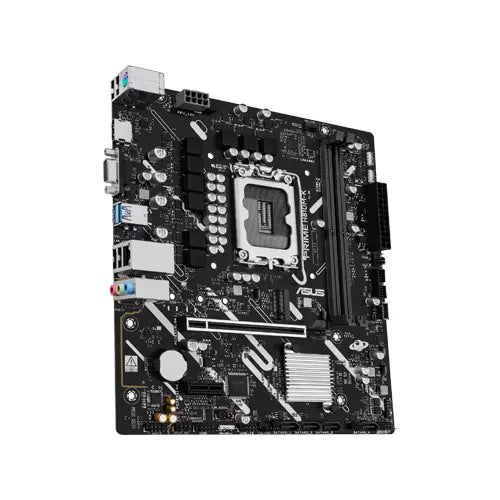

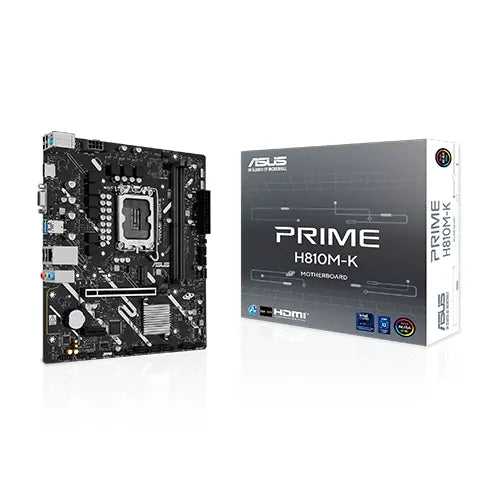

• Product Code:PRIME-H810M-K

  Features:

  • 6+1+1+1: phase digital power design
  • DIMM Fit / DIMM Fit Pro for enhanced DDR5 performance
  • PCIe 4.0 slot for graphics card
  • USB 5Gbps Type-A for rapid data transmission
  • USB 5Gbps Type-C for rapid data transmission
  • PCIe 4.0 M.2 for storage
  • EZ PC DIY for easier build customization
  • 1Gb Ethernet for faster data transfers
  • Aura Sync for full RGB lighting control

  ASUS PRIME series motherboards are expertly engineered to unleash the full potential of the latest Intel Core Ultra Processors (Series 2). Boasting a robust power design, comprehensive cooling solutions and intelligent tuning options, the PRIME H810M-K motherboard provides users and PC DIY builders with a range of performance optimizations via intuitive software and firmware features. It’s designed to be Advanced AI PC-ready, offering the power and connectivity needed for demanding AI applications.

  Digital Power Design

  Stable power is crucial for maximizing the performance of Intel Core Ultra Processors (Series 2).The PRIME H810M-K features an 6+1+1+1 phase design with discrete MOSFETs, ensuring efficient and stable power delivery for Intel processors plus steady performance for day-to-day use.

  DIMM Fit / DIMM Fit Pro

  DIMM Fit is an ASUS-exclusive BIOS feature that precisely analyzes individual memory modules to optimize performance and pinpoint potential issues. DIMM Fit Pro gives advanced PC builders more extensive customizability for memory tuning. It allows users to control up to twenty overclocking parameters, define testing ranges, and prioritize stability or performance, offering a more flexible and granular approach to memory optimization.

  M.2 slot (up to 64Gbps)

  PRIME H810M-K offers one M.2 slot that supports data-transfer speeds of up to 64Gbps via PCIe 4.0. This enables quicker boot-up and app load times with OS or application drives.

  Cooler by design

  The PRIME H810M-K motherboard is engineered with onboard chipset heatsink and an array of hybrid fan headers to help ensure your rig stays cool and stable under intense workloads.

  ASUS Fan Xpert 2+

  ASUS Fan Xpert 2+ software provides comprehensive control over fans. An Auto-Tuning mode intelligently configures all parameters with a single click. There’s also an Extreme Quiet mode that reduces chassis fan speeds to below the default minimum to keep your system whisper-quiet when performing light tasks. Fans can also be controlled via the UEFI BIOS.

  Empowering connections

  This motherboard offers a versatile range of connectivity, including support for PCIe 4.0 M.2, PCIe 4.0 slot and an arsenal of USB ports which includes Type-C connection.

  High Speed Transferring

  Numerous USB ports support high-end rigs loaded with peripherals, including two rear USB Type-A ports with transmission speeds of up to 5Gbps and a front USB Type-C connector with ultrafast USB 5Gbps for transmission speeds of up to 5Gbps.

  Realtek 1 Gb Ethernet

  Realtek Ethernet reduces CPU overhead and offers exceptionally high TCP and UDP throughput for faster, smoother data transfer.

  DIY friendly

  The PRIME H810M-K motherboard features EZ PC DIY innovations that simplify and speed up the PC building process, making DIY easy and convenient.

  SafeSlot Core+

  SafeSlot Core+ is a one-piece stainless-steel brace that shields the slot to protect it from damage. The metal cover is tightly secured to the slot with hooks, and the entire assembly is firmly anchored to the PCB with strengthened solder points to provide a secure foundation for heavyweight graphics cards.

  Q-LED Core

  The Q-LED Core display produces color-coded lights during the Power-On Self-Test (POST) that can help you troubleshoot potential issues.

  Motherboard
  Platform	INTEL
  Socket	LGA1851
  Cpu Type	Core Ultra
  Chipset	H810
  Memory Speed	up to 6400
  Max Memory Support	128 GB
  Supported Memory Type	DDR5
  Channel Supported	Dual Channel
  Memory Feature	Supports DIMM Fit and DIMM Fit Pro Supports Intel Extreme Memory Profile (XMP) memory module ASUS Enhanced Memory Profile II (AEMP II) * Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information please refer to CPU/Memory Support list under the Support tab of product information site or visit https://www.asus.com/support/download-center/. Adjustments will be made based on the specifications of mass-produced memory products available on the market. ** Non-ECC, un-buffered DDR5 memory supports On-Die ECC function.
  Graphics Port	1 x VGA port,1 x HDMI
  Expansion Slots	Intel Core Ultra Processors (Series 2) 1 x PCIe 4.0 x16 slot Intel H810 Chipset 1 x PCIe 4.0 x1 slot - To ensure compatibility of the device installed, please refer to https://www.asus.com/support/download-center/ for the list of supported peripherals.
  Back Panel I/O Ports	2 x USB 5Gbps ports (2 x Type-A) 4 x USB 2.0 ports (4 x Type-A) 1 x VGA port 1 x HDMI port 1 x Realtek 1Gb Ethernet port 3 x Audio jacks 1 x PS/2 keyboard/mouse combo port
  Internal I/O Connector	Fan and Cooling Related 1 x 4-pin CPU Fan header 2 x 4-pin Chassis Fan headers Power Related 1 x 24-pin Main Power connector 1 x 8-pin +12V CPU Power connector Storage Related 1 x M.2 slot (Key M) 4 x SATA 6Gb/s ports USB 1 x USB 5Gbps connector (supports USB Type-C) 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports 1 x USB 2.0 header supports 2 additional USB 2.0 ports Miscellaneous 3 x Addressable RGB Gen2 headers 1 x Clear CMOS header 1 x Chassis Intrusion header 1 x COM Port header 1 x Front Panel Audio header (F_AUDIO) 1 x S/PDIF Out header 1 x SPI TPM header (14-1 pin) 1 x 10-1 pin Front Panel System header
  Form Factor	Micro-ATX
  Warranty	3 Years
  Note	Features, Price and Specifications are subject to change without notice. Images used for Representation Purpose Only

• Brand:ASUS

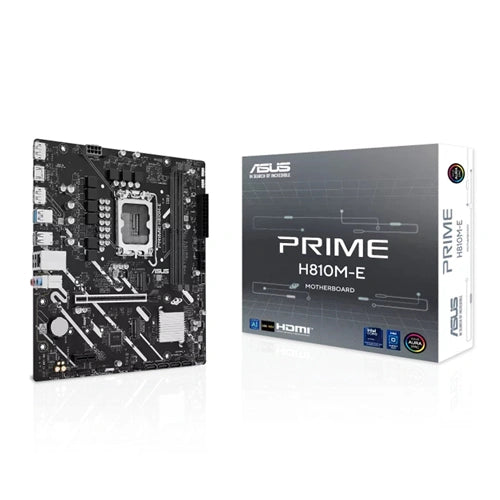

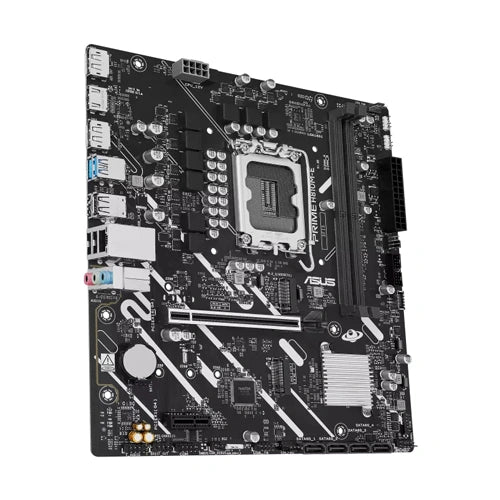

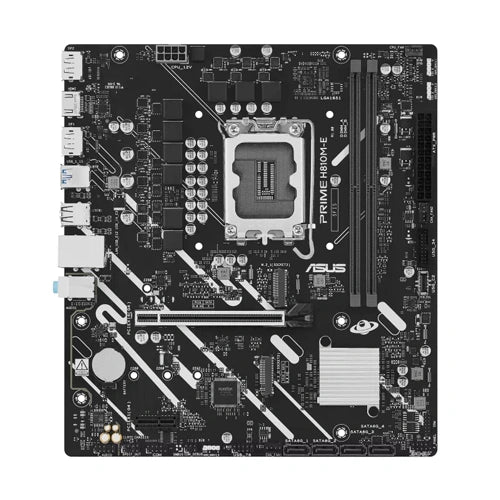

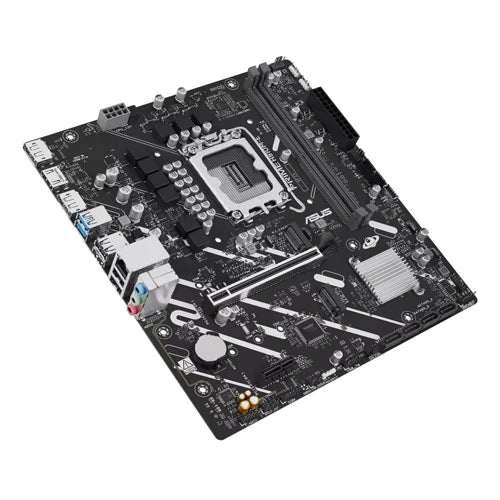

• Product Code:PRIME-H810M-E

  Features:

  PRIME H810M-E

  ASUS PRIME series motherboards are expertly engineered to unleash the full potential of the latest Intel Core Ultra Processors (Series 2). Boasting a robust power design, comprehensive cooling solutions and intelligent tuning options, the PRIME H810M-E motherboard provides users and PC DIY builders with a range of performance optimizations via intuitive software and firmware features. It’s designed to be Advanced AI PC-ready, offering the power and connectivity needed for demanding AI applications.

  Digital Power Design

  Stable power is crucial for maximizing the performance of Intel Core Ultra Processors (Series 2).The PRIME H810M-E features an 6+1+1+1 phase design with discrete MOSFETs,ensuring efficient and stable power delivery for Intel processors plus steady performance for day-to-day use.

  DIMM Fit / DIMM Fit Pro

  DIMM Fit is an ASUS-exclusive BIOS feature that precisely analyzes individual memory modules to optimize performance and pinpoint potential issues. DIMM Fit Pro gives advanced PC builders more extensive customizability for memory tuning. It allows users to control up to twenty overclocking parameters, define testing ranges, and prioritize stability or performance, offering a more flexible and granular approach to memory optimization.

  Two M.2 slots (up to 64Gbps)

  PRIME H810M-E offers a total of two M.2 slots, including one that supports data-transfer speeds of up to 64Gbps via PCIe 4.0, one that supports 32Gbps via PCIe 4.0. This enables quicker boot-up and app load times with OS or application drives.

  Cooler by design

  The PRIME H810M-E motherboard is engineered with onboard chipset heatsink and an array of hybrid fan headers to help ensure your rig stays cool and stable under intense workloads.

  Personalization

  The PRIME H810M-E enhances the user experience across the board, from simplifying BIOS setting adjustments to offering customizable RGB lighting controls for a uniquely personal system aesthetic.

  Motherboard
  Platform	INTEL
  Socket	LGA1851
  Cpu Type	Core Ultra
  Chipset	H810
  Memory Speed	up to 6400
  Max Memory Support	128 GB
  Supported Memory Type	DDR5
  Channel Supported	Dual Channel
  Memory Feature	Un-buffered ,Clocked Unbuffered DIMM (CUDIMM) Supports Intel® Extreme Memory Profile (XMP) memory module ASUS Enhanced Memory Profile II (AEMP II)
  Graphics Port	2 x DisplayPort,1 x HDMI
  Expansion Slots	Intel Core Ultra Processors (Series 2) 1 x PCIe 4.0 x16 slot Intel H810 Chipset 1 x PCIe 4.0 x1 slot
  Back Panel I/O Ports	2 x USB 5Gbps ports (2 x Type-A) 4 x USB 2.0 ports (4 x Type-A) 2 x DisplayPort 1 x HDMI port 1 x Realtek 1Gb Ethernet port 3 x Audio jacks
  Internal I/O Connector	Fan and Cooling Related 1 x 4-pin CPU Fan header 2 x 4-pin Chassis Fan headers Power Related 1 x 24-pin Main Power connector 1 x 8-pin +12V CPU Power connector Storage Related 2 x M.2 slots (Key M) 4 x SATA 6Gb/s ports USB 1 x USB 5Gbps connector (supports USB Type-C® ) 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports 1 x USB 2.0 header supports 2 additional USB 2.0 ports Miscellaneous 3 x Addressable RGB Gen 2 headers 1 x Clear CMOS header 1 x Chassis Intrusion header 1 x COM Port header 1 x Front Panel Audio header (F_AUDIO) 1 x S/PDIF Out header 1 x SPI TPM header (14-1 pin) 1 x 10-1 pin Front Panel System header
  Form Factor	Micro-ATX
  Warranty	3 Years
  Note	Features, Price and Specifications are subject to change without notice. Images used for Representation Purpose Only

ASUS PRIME B860M-K CSM micro-ATX motherboard in India. Intel B860 chipset, DDR5 support, ideal for office, GST billing & business PCs.

🚀 Product Overview

The ASUS PRIME B860M-K CSM is a business-focused, stable and long-life motherboard designed for office PCs, commercial systems, GST billing computers, and home users who want reliability over gimmicks.

Built by ASUS under the CSM (Corporate Stable Model) program, this motherboard offers long-term availability, consistent BIOS support, and enterprise-grade quality, making it a top choice for Indian system integrators and businesses.

🔥 Key Highlights

• 🧠 Intel B860 Chipset

• 🔌 Supports Latest Intel Desktop Processors

• 🏢 CSM Program – Ideal for Business & Bulk Use

• 🧩 Micro-ATX Form Factor

• 💼 Perfect for Office, GST Billing & Commercial PCs

• 🔋 Stable Power Design for 24×7 Usage

• 🖥️ Integrated Graphics Output Support

• 🛡️ ASUS 5X Protection III for durability

🧩 Chipset & CPU Support

• Chipset: Intel® B860

• Socket: Intel Desktop Socket (Latest Generation)

• CPU Support: Latest Intel Desktop Processors
  (Check CPU support list before purchase)

Optimized for power efficiency, long uptime, and stable performance, ideal for Indian business environments.

💾 Memory Support

• Memory Slots: 2 × DDR5 DIMM

• Max Memory: Up to 128 GB

• Memory Type: DDR5 (High-Speed Support)

• Dual Channel: Supported

🔌 Expansion & Storage

Expansion Slots

• 1 × PCIe x16 Slot (Graphics Card)

• Additional PCIe slots for expansion cards

Storage

• M.2 Slot for NVMe SSD

• SATA 6Gb/s Ports for HDD/SSD

Fast boot times and smooth multitasking for office & professional workloads.

🌐 Connectivity & I/O

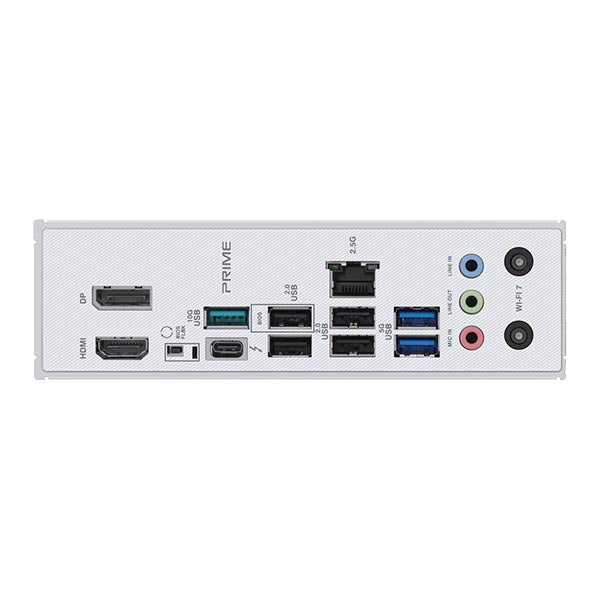

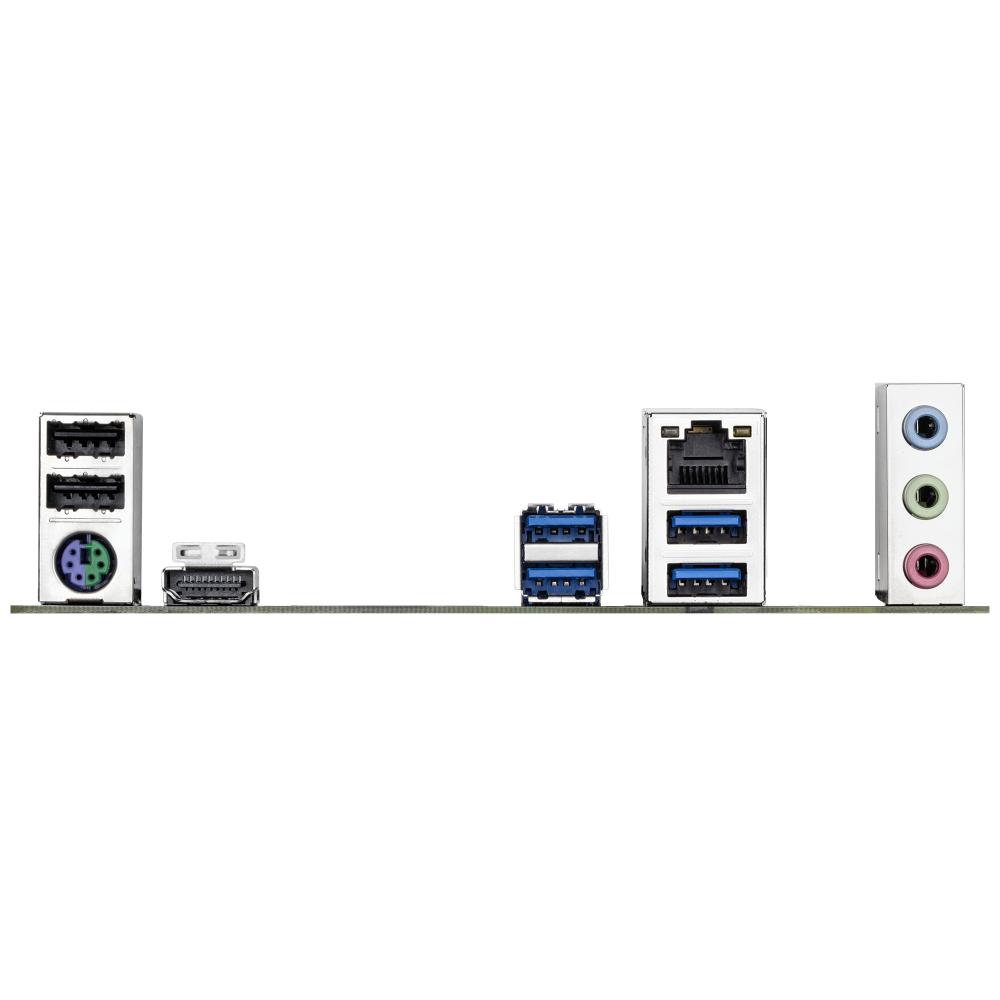

Rear I/O Ports

• HDMI / DisplayPort (Varies by revision)

• USB 3.2 Ports

• USB 2.0 Ports

• LAN (Gigabit Ethernet)

• Audio Jacks

Supports modern peripherals and high-resolution displays.

🛡️ ASUS Reliability & Protection

• DIGI+ VRM Power Control

• Overvoltage Protection

• SafeSlot Core

• Stainless-Steel Back I/O

• ESD Guards

Designed to handle Indian power conditions and long working hours.

🎯 Best For

• Office & Corporate PCs

• GST Billing & Accounting Systems

• Retail POS Computers

• System Integrators & Bulk Builds

• Home & Daily-Use PCs

📦 Box Contents

• ASUS PRIME B860M-K CSM Motherboard

• SATA Cables

• I/O Shield

• User Manual & Documentation

🛡️ Warranty & Authenticity

• 3 Years ASUS Manufacturer Warranty (India)

• CSM Business-Grade Support

• 100% Genuine & Factory-Sealed

• Ideal for Retail, Wholesale & GST Billing

⭐ Why Buy ASUS PRIME B860M-K CSM in India?

This motherboard is trusted across India because it offers:

• Long-term product availability

• Stable BIOS & driver support

• Excellent compatibility

• Strong after-sales support from ASUS India

A perfect balance of stability, affordability, and durability for business and home users.

Product Description
